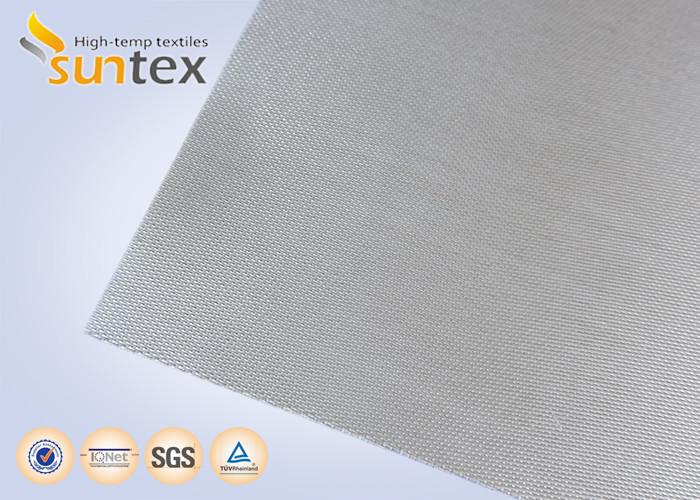

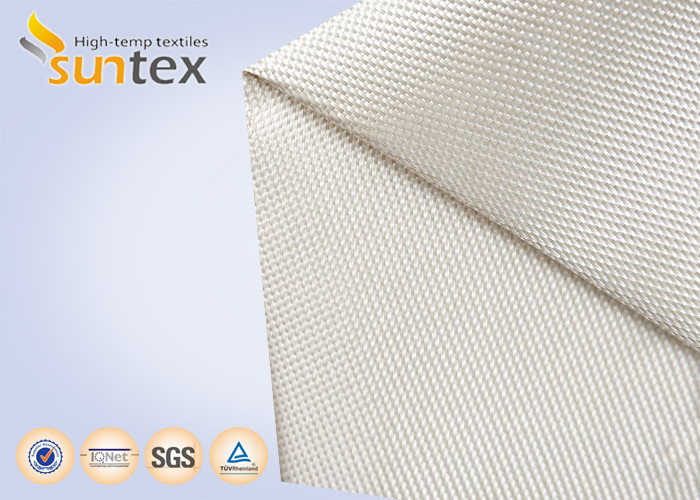

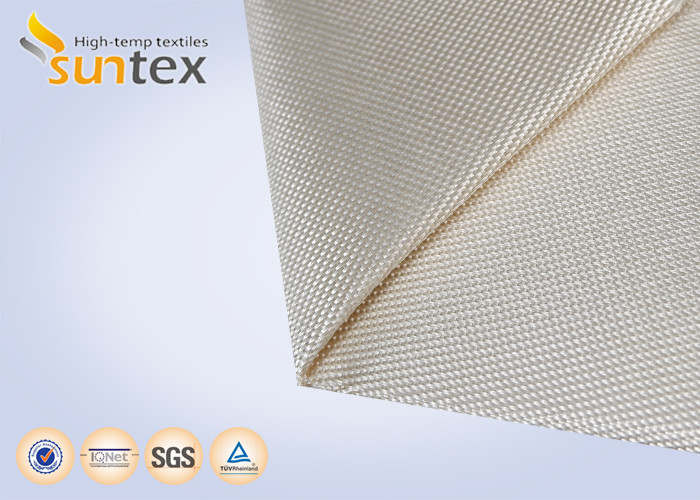

SUNTEX 36 OZ High Temperature Fiberglass Cloth Flame Resistant Barrier Silica Cloth

Place of Origin:China
Brand Name:SUNTEX
Model Number:GF1400-HA266-5034
Minimum Order Quantity:20 rolls
Payment Terms:T/T; L/C, Paypal...
Supply Ability:500000sqm/month
Product Details
Highlight:

high temperature fabric cloth

,

high temperature fabrics

Unit Weight: 36 Oz/sqy
Standard Width: 1yard
Standard Thickness: 0.053inch
Colour: Brown
Pattern: Crowfoot
Temperature Resistance /Working Temperature: 750℃ 1300℉
Fiberglass: Silica Wash
Product Description

Silica Fire Blanket High Temperature Fiberglass Cloth 36 OZ Flame Resistant Barrier Silica Cloth



Introduce



GF1400-HA266-5034 is a slica wash fabric treated by hydrochloric acid. 750℃ high temperature resistance is higher than most kinks of fiberglass fabric, although lower than SL600. But it don't has significant deterioration in strength tensile. It's a econmic replacement of SL600. It was designed for the manufacturer of welding protection, gaskets, flexible expansion joints, removable jackets and other type applications for continuous high temperature needs.



Advantage



1. Well fire resistance, as high as 750 degree.

2. Strong construction than silica, have good tensile strength, easy to be applied.

3. Well abrasion resistance property.



Data



Standard weight 36 oz/y2
Standard Thickness 0.053 inch
Standard width 920mm
Coating None
Colour Yellow
Fire resistance Well
Temperature resistance 1380℉
Pattern Crowfoot
Construction warp 48±3 ends/inch
Construction weft 30±3 ends/inch
Fiberglass Silica wash


Applications



Good performance under high temperature environment, can be used as fire curtain, welding blanket, removable heat insulation kit or mat.





Style No. Weight Thickness Color Coating
g/m2 oz/yd2 mm inch
SL600 600 18 0.65 0.025 Yellow None
SL1200 1200 36 1.25 0.037 Yellow None
GF880-HA266-5017 600 18 0.6 0.024 Yellow None
GF1400-HA266-5034 1200 36 1.3 0.05 Yellow None



Main products: Qualified Fiberglass fabric with silicone, PU, acrylic, neoprene, vermiculite, calcium silicate, graphite, PTFE coating.
Main application: Mainly used in the fields of fire prevention and thermal isolation, like removable thermal insulation jackets, fire curtains, welding blankets, fabric air dispersion/ventilation system, fabric expansion joint, etc.
Advertise & Exhibite: Our company participates in major professional exhibitions every year, and advertises in main search engines, professional portals, To build a world-renowned brand.
Sales Network: We do business with customers all over the world. Depends on our excellent products, over 80% of our products sold abroad, most of them export to European and American countries.
Package: 50m per roll, packed in carton, then loaded on pallet. Choose extra wood planks to protect your cargo.
Agency Policy: Customers whose quantity and rate of purchase reach certain level can be chosen to our local agent, we'll transfer sale and managerment affairs of our small customer around to agent.
Service: We belive "Customer is Supreme", all of our products can be customized, wholeday non-stop online service.
Payment Terms: 30-50% deposite after contract signed, balance paid before shipping. L/C,D/P support.
Delivery Terms: 30 days after deposite received.
Warranty Terms: One year warranty, if there're quality problems, our support team will help to solve it by consultation or technical guidance.
