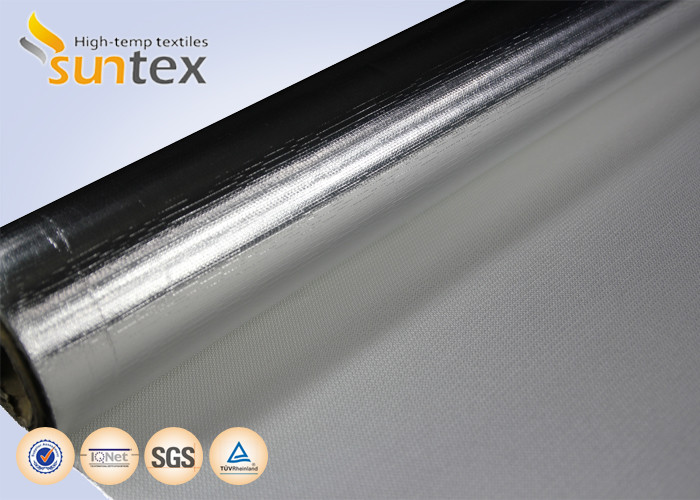

10 Micron Heat Shield Film Coated Fiberglass Insulation With Aluminum Backing Thermal Sheath

Place of Origin China
Brand Name SUNTEX
Model Number GF430-AF110–6008
Minimum Order Quantity 20 rolls
Packaging Details Each roll in carton, several cartons in a pallet
Delivery Time 5-20 days
Payment Terms T/T; L/C, Paypal...
Supply Ability 500000sqm/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Usage Heat Thermal Sheath Thickness 0.4mm
Working Temperature 140C Coated Aluminum Film Laminated
Property Good Abrasion Resistance Weight 440gsm
High Light

aluminized fiberglass cloth

,

aluminum coated fiberglass

Leave a Message
Product Description

10 Micron Heat Shield Film Coated Fiberglass Insulation With Aluminum Backing Thermal Sheath



Product Description



Aluminum foil/film laminated fiberglass fabrics

The combination of laminating an aluminum metallic/film heat shield to a layer of protective fiberglass insulation, using fiberglass as the base cloth and special fire-resistant adhesive agent, it can protect personnel or equipment by reflecting radiant heat. Our aluminum foil coated fiberglass cloth has many excellent properties such as the smooth surface on the aluminum foil, non-water permeability, good hermetic and weather resistance, strong light reflection, good stretching resistance in length and breadth, non-breath ability.



-One side or both sides aluminum foil/film laminated available.

-The thickness of aluminum foils available from 0.0007mm to 3mm

-Width of fabrics available from 1000mm to 3000mm.



BASE FABRIC Base fabric style No. GF430
  (Metric) (English) Test methods
Weave 4H Satin Crowfoot
Yarn
Warp EC9 33 1*4 ECG 150 1/4
Weft EC9 33 1*4 ECG 150 1/4
Construction
Warp 18 ends /cm 48 ± 3 ends/inch
Weft 12.6 picks /cm 32 ± 3 picks/inch
Weight 430 ± 20 g/m2 12.6 ± 0.58 oz/yd2 ASTM D3776-96
Thickness 0.37 ± 0.02 mm 0.0145 ± 0.0008 inch ASTM D1777-96




COATED FABRIC Coating style No. AF110-6008
Coating Aluminised polymer film ,one side
Weight 450 ± 20 g/m2 13.2 ± 0.59 oz/yd2 ASTM D3776-96
Thickness 0.39 ± 0.03 mm 0.015 ± 0.0012 inch ASTM D1777-96
Color Silver
Temp resistance

Glass fabric up to 5500C (10000F)

Aluminum foil up to 1400C (3000F)
