14 microns Aluminum Foil Fiberglass Cloth Fire Insulation Blanket Glass Fiber Fabric

Place of Origin China
Brand Name SUNTEX
Model Number GF430-AL114-6002
Minimum Order Quantity 20 rolls
Packaging Details Each roll in carton, several cartons in a pallet
Delivery Time 5-20 days
Payment Terms T/T; L/C, Paypal...
Supply Ability 500000sqm/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Silver Application Fire Blanket
Weight 13.2oz/yd2 Working Temperature 150 C
Treatment Aluminized Single Side Property Fire Insulation
Highlight

aluminized fiberglass cloth

,

aluminized fiberglass fabric

Leave a Message
Product Description

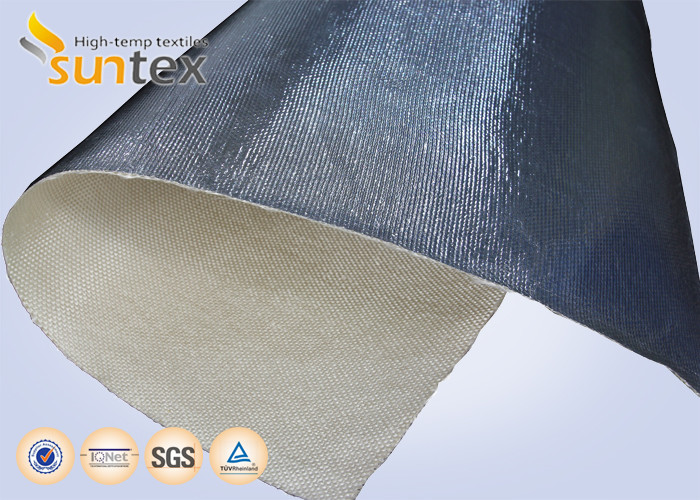

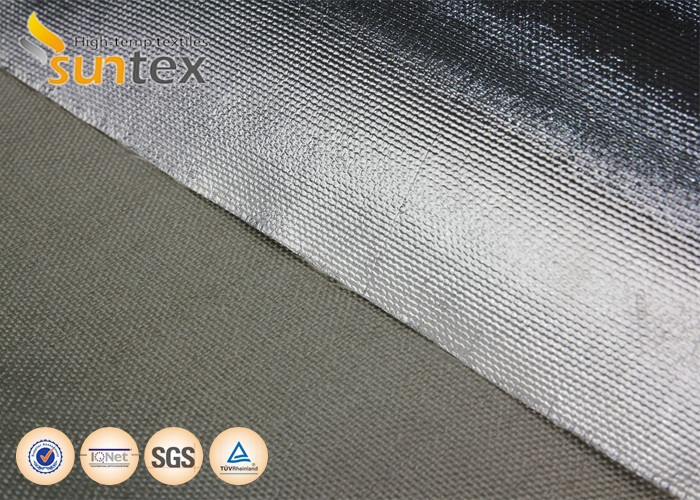

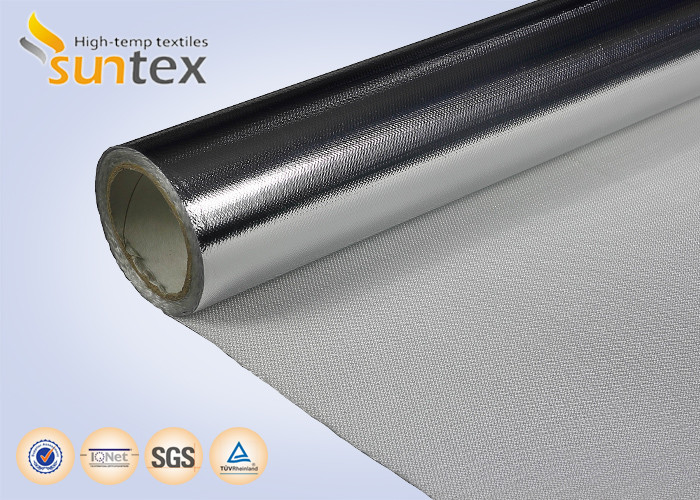

14 microns Aluminum Foil Fiberglass Cloth Fire Insulation Blanket Glass Fiber Fabric

Product Description



Produce name: aluminum foil coated fiberglass fabric
Our aluminum foil laminated fiberglass cloth is made of fiberglass fabrics laminated in an aluminum foil or film. It can resist extreme heat and has a soft surface, high performance, good reflective effect, sealing insulation, fireproof,gas-proof and waterproof. The thickness of aluminum foils is from 0.2mm to 2.5 mm.

Usage: heat retardant curtain/thermal insulation cover/welding protection/fire protection/safety cloth and apron/aluminum foil backed insulation /non-metallic compensator/anti-corrosion

Temperature Resistance:150C

Color: silver/grey/or customized
















BASE FABRIC Base fabric style No. GF430
  (Metric) (English) Test methods
Weave 4H Satin Crowfoot
Yarn
Warp EC9 33 1*4 ECG 150 1/4
Weft EC9 33 1*4 ECG 150 1/4
Construction
Warp 18 ends /cm 48 ± 3 ends/inch
Weft 12.6 picks /cm 32 ± 3 picks/inch
Weight 430 ± 20 g/m2 12.6 ± 0.58 oz/yd2 ASTM D3776-96
Thickness 0.37 ± 0.02 mm 0.0145 ± 0.0008 inch ASTM D1777-96




COATED FABRIC Coating style No. AL114-6002
Coating Aluminum foil (14 microns) laminated ,one side
Weight 460 ± 20 g/m2 13.5 ± 0.59 oz/yd2 ASTM D3776-96
Thickness 0.40 ± 0.03 mm 0.04 ± 0.0012 inch ASTM D1777-96
Color Silver
Flame resistance Non-combustible
Temp resistance

Glass fabric up to 5500C (10000F)

Aluminum foil up to 1500C (3000F)




Related Recommend



RELATED PRODUCT


PRODUCT SELECTION GUIDE

Style No. Weight Thickness
(g/m2) Oz/yd) (mm) (inch)
GF200-AL114--6001 250 7.3 0.21 0.08
GF430-AL114--6002 470 13.8 0.42 0.016
GF580-AL122--6005 630 18.5 0.75 0.03
TGF1000-AL118--6007 1050 31 1.5 0.059




Packaging & Shipping


FAQ

1. F: Why do you choose us?

Q: Suntex management and staff have over 20 years of cumulative experience in industrial textiles. With state-of-the-art equipment, Suntex is committed to offer customers high quality and cost-effective products.



2. F: What is your delivery time?

Q: Generally we will within 30 days of delivery to you, depending on the number you need us here to determine the time of delivery



3. F: What is your shipping port?

Q: Normally Shanghai port, or according to customer’s request.



4. F: Can you produce customized goods?

Q: Surely, we can be customized according to your demanding.



5. F: What kinds of payment you accept?

Q: We accept T/T, D/A, L/C, D/P.



6. F: Do you have other production?

Q: Certainly, we have Silica fiber, Stainless steel(S.S) Wire reinforced E-glass fabric, Vermiculite coated fiberglass fabric, Graphite treated fiberglass fabric, Calcium silicate coated fiberglass fabric, Polyurethane (PU) coated fiberglass fabric, Neoprene coated fiberglass fabric, PTFE coated fiberglass fabric, Aluminium foil/film laminated fiber glass fabric, Weave lock/ finished fiberglass fabric, Fire blankets, Industrial heat sealing textiles, Tailor-made solutions for thermal insulation needs. We are looking forward to your enquiry.
