Product Details:
Payment & Shipping Terms:
|
| Unit Weigh: | 32.4oz/sqy | Standard Width: | 1000mm 1520mm |
|---|---|---|---|
| Standard Thickness: | 0.055 Inch | Pattern: | Plain |
| Coating Temperature Resistance: | 750℃ 1300℉ | Basic Fabric Temperature Resistance: | 550℃ 1000℉ |
| Coating: | Graphite 2 Sides | ||
| High Light: | fiberglass cloth heat resistant,high temperature fabrics |
||

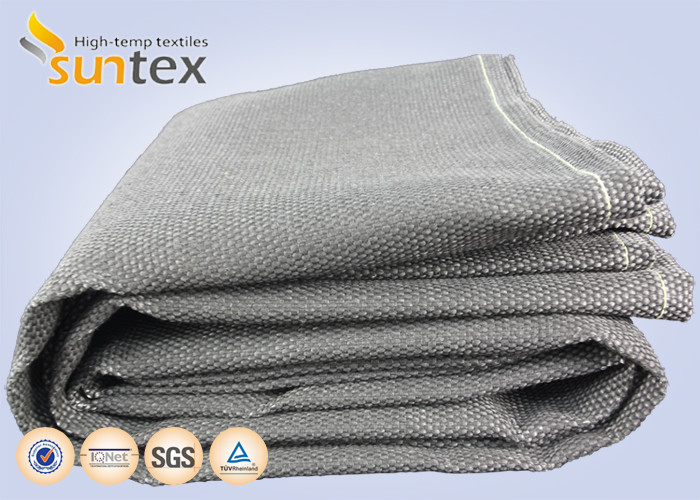

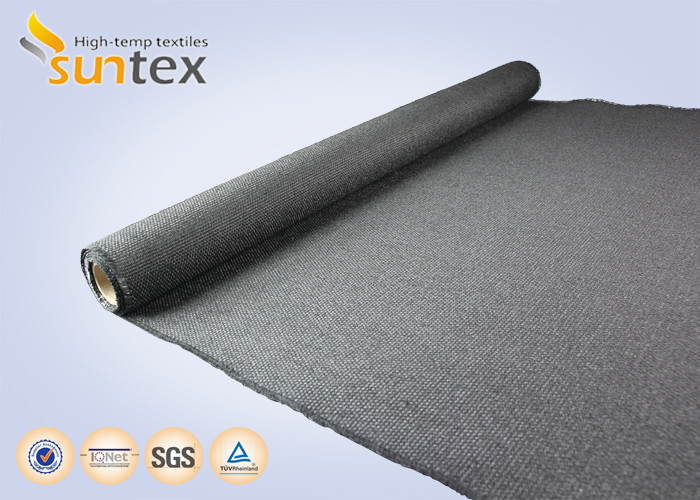

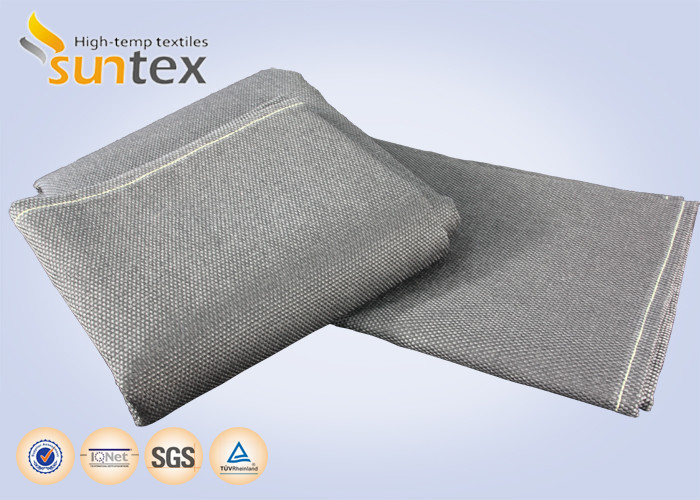

Heat Protection Cover High Temperature Fiberglass Fabric 32.4OZ Graphite Coated Fiber Glass Safety Cloth
Introduce
TGF1000-GP235-5002 is a heavy weight woven texturized fiberglass fabric coated with a specially formulated graphite and polyurethane solution which provides high temperature and abrasion resistance properties for the manufacturer of gaskets, flexible expansion joints, removable jackets and other types of fire control systems. This material is soft and pliable and easy to sew.
Advantage
1. Well certified fire resistance.
2. Black color.
3. Easy to be applied, sewn and fabricated.
4. Well abrasion resistance property.
5. Well tensile strength.
6. Nominal thickness, unit weight, pattern, all can be customized base on your use method.
Data
| Standard weight | 32.4 oz/y2 |
| Standard Thickness | 0.055 inch |
| Standard width | 1000mm 1520mm 1550mm |
| Coating | Graphite |
| Colour | Black |
| Fire resistance | Well |
| Coating temperature resistance | Graphite coating 750 ℃ |
| Basic fabric working temperature | Basic fabric 550 ℃ |
| Pattern | Plain |
| Yarn warp | ETG 5.8 |
| Yarn weft | ETG 3.87 |
| Construction warp | 15 ± 2 ends/inch |
| Construction weft | 12 ± 15 ± 0.5 ends/cm ends/inch |
| Fiberglass | E-Glass |
Applications
Smoke / Fire curtain/door
Fire / Welding blanket
Expansion joint / Compensator / Flexible sleeve
Reusable / Removable thermal / heat insulation cover / jacket / sheath / shell / kit / couples
Thermal / Heat insulation pad
Air duct / Fabric duct / Flexible duct
Related Products
| Style No. | Weight | Thickness | Color | Coating | ||
| g/m2 | oz/yd2 | mm | inch | |||
| TGF880-GP235-5001 | 980 | 28.8 | 1.0 | 0.039 | Black | 2 sides |
| TGF1000-GP235-5002 | 1100 | 32.4 | 1.4 | 0.055 | Black | 2 sides |
| TGF1250-GP235-5003 | 1400 | 41.2 | 1.6 | 0.063 | Black | 2 sides |
| TGF2050-GP245-5004 | 2250 | 66 | 2.5 | 0.098 | Black | 2 sides |
| TGF1000S-GP235-5015 | 1180 | 35 | 1.5 | 0.059 | Black | 2 sides |
| TGF2550-GP225-5020 | 2650 | 78 | 2.6 | 0.102 | Black | 2 sides |
