2.5mm Flame Retardant High Temperature Fiberglass Cloth 66OZ Graphite Coated Fiberglass Fabric Roll

Place of Origin:China
Brand Name:SUNTEX
Model Number:TGF2050-GP245-5004
Minimum Order Quantity:20 rolls
Payment Terms:T/T; L/C, Paypal...
Supply Ability:500000sqm/month
Product Details
Highlight:

fiberglass cloth heat resistant

,

high temperature fabrics

Unit Weight: 66 Oz/sqy
Standard Width: 1000mm 1550mm
Standard Thickness: 0.098 Inch
Colour: Black
Pattern: Plain
Coating Temperature Resistance: 750℃ 1300℉
Basic Fabric Temperature Resistance: 550℃ 1000℉
Coating: Graphite2 Sides
Product Description

2.5mm Flame Retardant High Temperature Fiberglass Cloth 66OZ Graphite Coated Fiberglass



Introduce

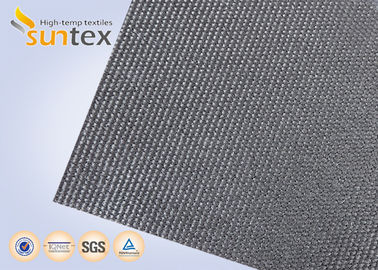

TGF2050-GP245-5004 is a heavy weight woven texturized fiberglass fabric coated with a specially formulated graphite and polyurethane solution which provides high temperature and abrasion resistance properties for the manufacturer of gaskets, flexible expansion joints, removable jackets and other types of fire control systems.



Advantage



1. Well certified fire resistance.

2. Black color.

3. Easy to be applied, sewn and fabricated.

4. Well abrasion resistance property.

5. Well tensile strength.

6. Nominal thickness, unit weight, pattern, all can be customized base on your use method.



Data



Standard weight 66 oz/y2
Standard Thickness 0.098 inch
Standard width 1000mm 1520mm 1550mm 2000mm
Coating Graphite
Colour Black
Fire resistance Well
Coating temperature resistance Graphite coating 750 ℃
Basic fabric working temperature Basic fabric 550 ℃
Pattern Plain
Fiberglass E-Glass



Applications



Fire curtain/door

Welding blanket

Compensator

Removable heat insulation couples

Heat insulation pad

Fabric duct





Related Products



Style No. Weight Thickness Color Coating
g/m2 oz/yd2 mm inch
TGF880-GP235-5001 980 28.8 1.0 0.039 Black 2 sides
TGF1000-GP235-5002 1100 32.4 1.4 0.055 Black 2 sides
TGF1250-GP235-5003 1400 41.2 1.6 0.063 Black 2 sides
TGF2050-GP245-5004 2250 66 2.5 0.098 Black 2 sides
TGF1000S-GP235-5015 1180 35 1.5 0.059 Black 2 sides
TGF2550-GP225-5020 2650 78 2.6 0.102 Black 2 sides



Main products: Qualified Fiberglass fabric with silicone, PU, acrylic, neoprene, vermiculite, calcium silicate, graphite, PTFE coating.
Main application: Mainly used in the fields of fire prevention and thermal isolation, like removable thermal insulation jackets, fire curtains, welding blankets, fabric air dispersion/ventilation system, fabric expansion joint, etc.
Advertise & Exhibite: Our company participates in major professional exhibitions every year, and advertises in main search engines, professional portals, To build a world-renowned brand.
Sales Network: We do business with customers all over the world. Depends on our excellent products, over 80% of our products sold abroad, most of them export to European and American countries.
Package: 50m per roll, packed in carton, then loaded on pallet. Choose extra wood planks to protect your cargo.
Agency Policy: Customers whose quantity and rate of purchase reach certain level can be chosen to our local agent, we'll transfer sale and managerment affairs of our small customer around to agent.
Service: We belive "Customer is Supreme", all of our products can be customized, wholeday non-stop online service.
Payment Terms: 30-50% deposite after contract signed, balance paid before shipping. L/C,D/P support.
Delivery Terms: 30 days after deposite received.
Warranty Terms: One year warranty, if there're quality problems, our support team will help to solve it by consultation or technical guidance.
