Thermal Sheath High Temperature Fiberglass Cloth 78OZ Graphite Coated Heat Shield

Place of Origin China
Brand Name SUNTEX
Model Number TGF2550-GP225-5020
Minimum Order Quantity 20 rolls
Packaging Details Each roll in carton, several cartons in a pallet
Delivery Time 5-20 days
Payment Terms T/T; L/C, Paypal...
Supply Ability 500000sqm/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Unit Weight 78oz/sqy Standard Width 1000mm 1550mm
Standard Thickness 0.102inch Colour Black
Coating Temperature Resistance 750℃ 1300℉ Basic Fabric Temperature Resistance 550℃ 1000℉
Coating Graphite 2 Sides
High Light

fiberglass cloth heat resistant


high temperature fabrics

Leave a Message
Product Description

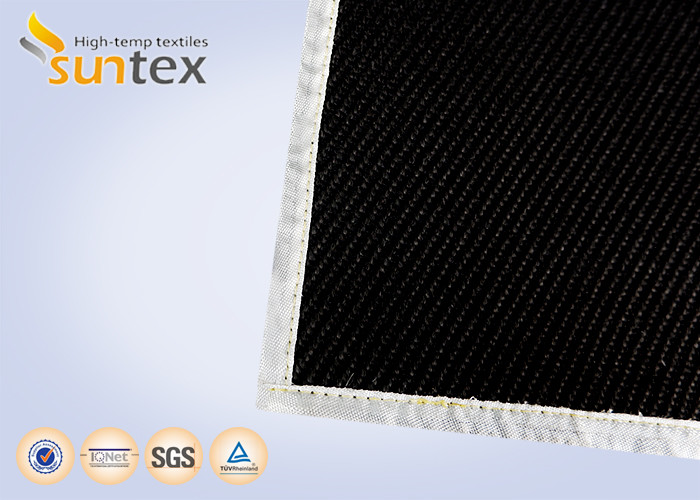

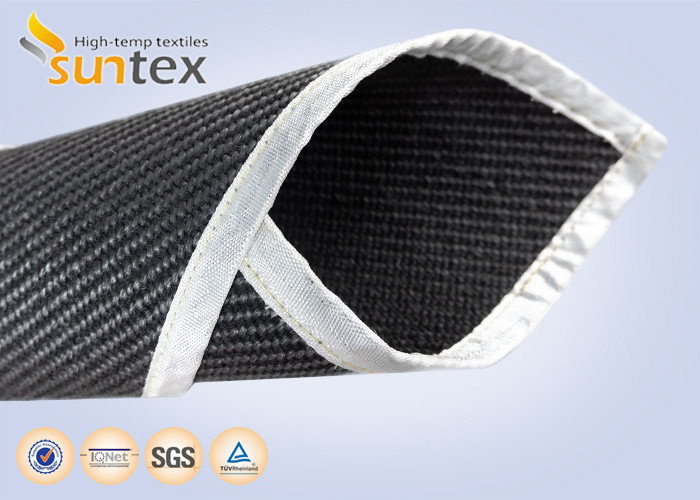

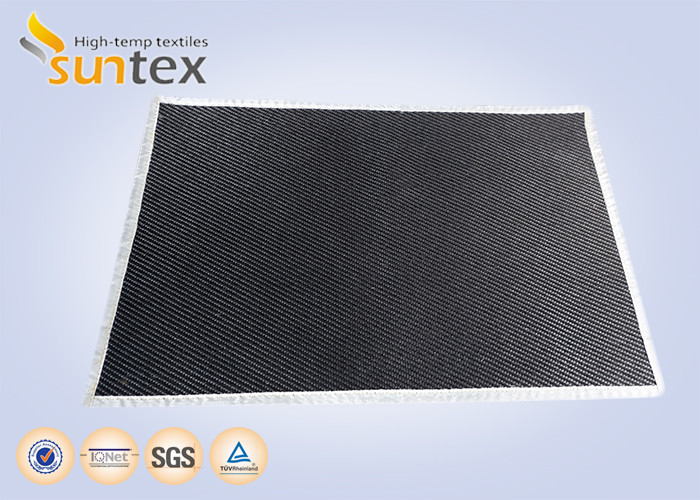

Thermal Sheath High Temperature Fiberglass Fabric 78OZ Graphite Coated Fiberglass Heat Shield




TGF2550-GP225-5020 is a heavy weight woven texturized fiberglass fabric coated with a specially formulated graphite and polyurethane solution which provides high temperature and abrasion resistance properties for the manufacturer of gaskets, flexible expansion joints, removable jackets and other types of fire control systems.




1. Well/Excellent/Awesome certified fire resistance.

2. Black color.

3. Easy to be applied, sewn and fabricated.

4. Well abrasion resistance property.

5. Well tensile strength.

6. Nominal thickness, unit weight, pattern, all can be customized base on your application/use method.




Standard weight 78 oz/y2
Standard Thickness 0.102 inch
Standard width 1000mm 1550mm
Coating Graphite
Colour Black
Fire resistance Well
Coating temperature resistance Graphite coating 750 ℃
Basic fabric working temperature Basic fabric 550 ℃
Pattern Double Twill
Construction warp 23 ± 2 ends/inch
Construction weft 18 ± 1 ends/inch
Fiberglass E-glass Texturized Woven Fabric




Fire curtain/door

Welding blanket


Removable heat insulation shell

Heat insulation mattress

Fabric duct


Related Products


Style No. Weight Thickness Color Coating
g/m2 oz/yd2 mm inch
TGF880-GP235-5001 980 28.8 1.0 0.039 Black 2 sides
TGF1000-GP235-5002 1100 32.4 1.4 0.055 Black 2 sides
TGF1250-GP235-5003 1400 41.2 1.6 0.063 Black 2 sides
TGF2050-GP245-5004 2250 66 2.5 0.098 Black 2 sides
TGF1000S-GP235-5015 1180 35 1.5 0.059 Black 2 sides
TGF2550-GP225-5020 2650 78 2.6 0.102 Black 2 sides
