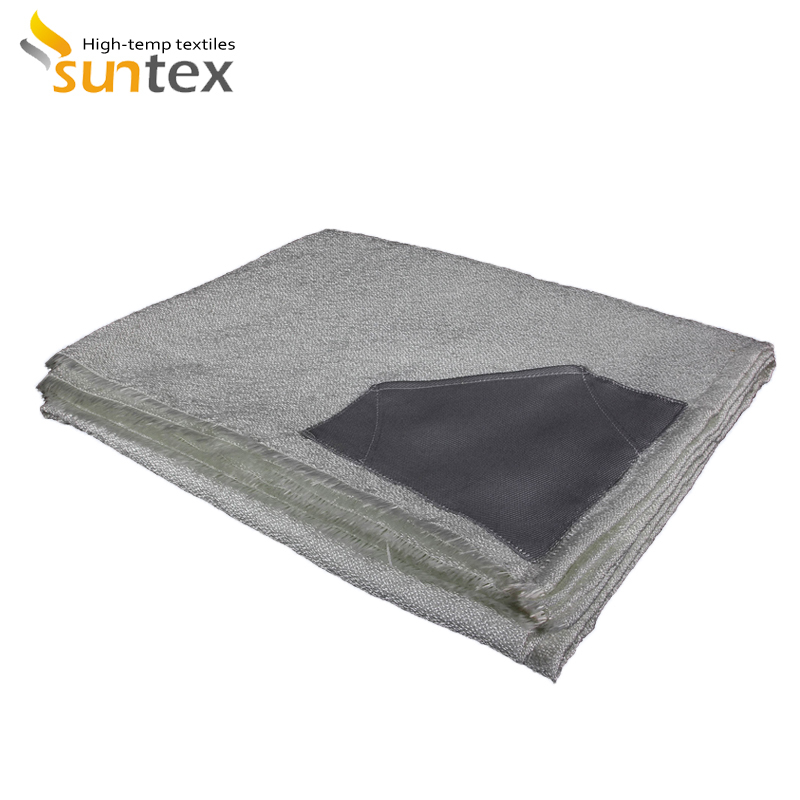

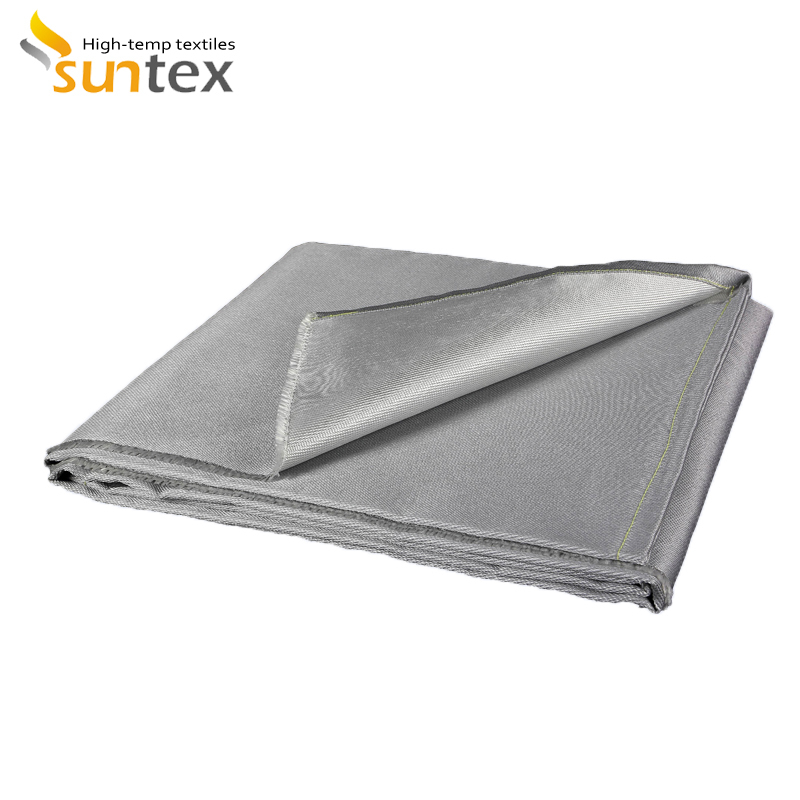

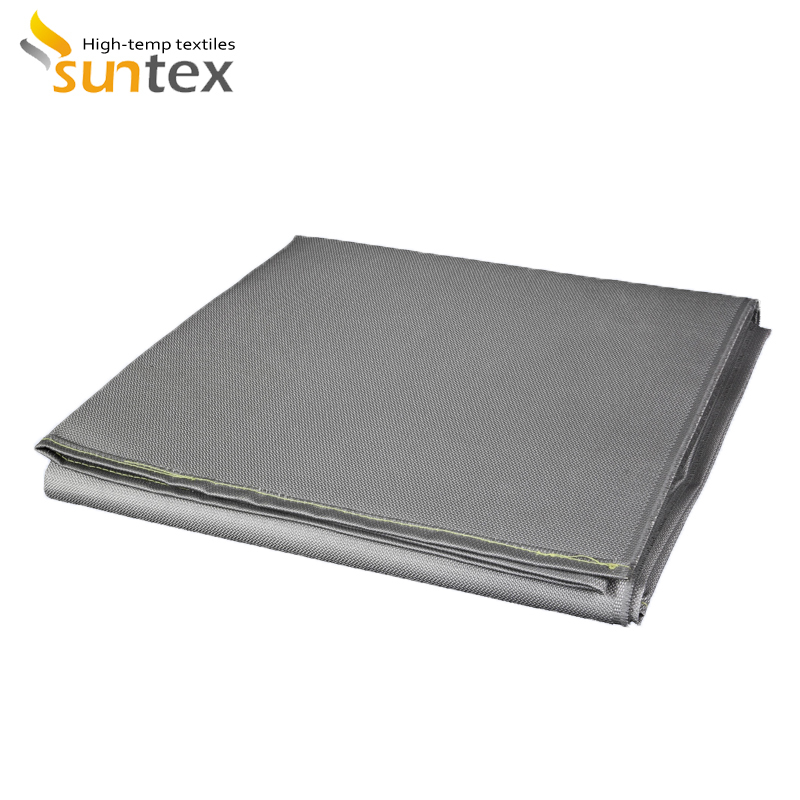

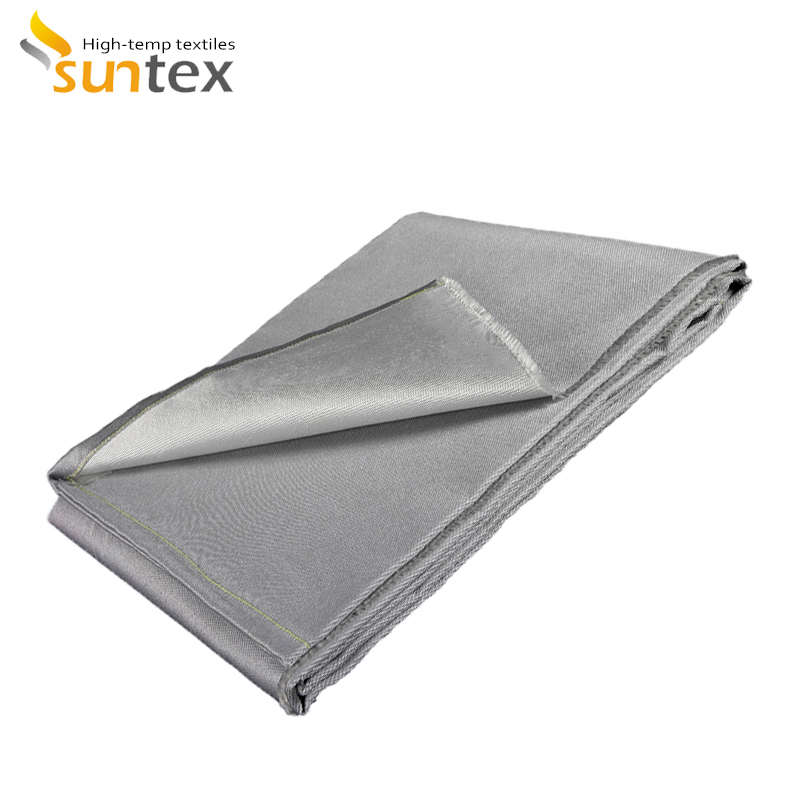

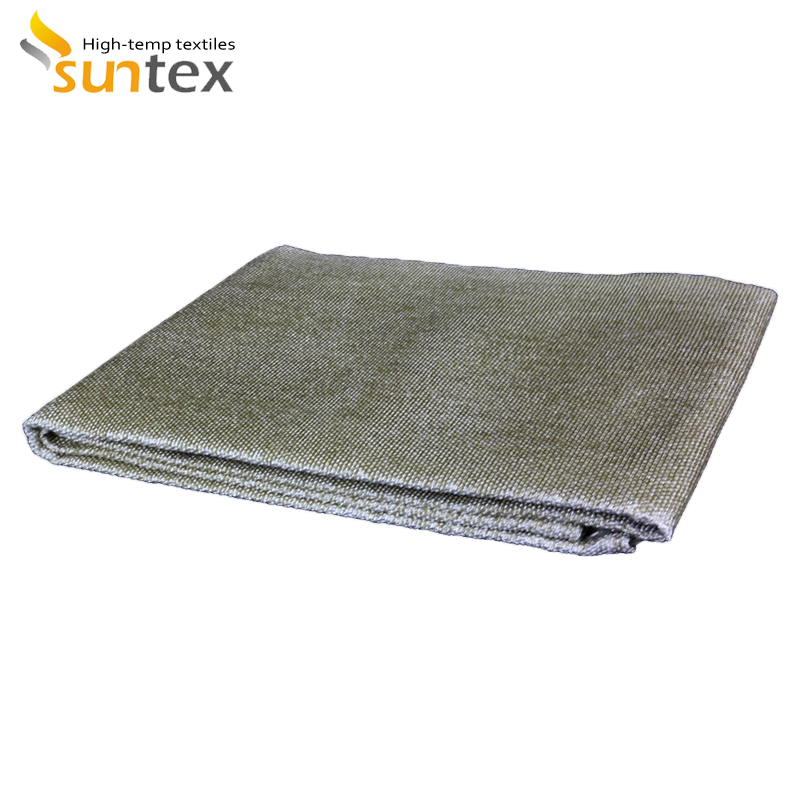

0.4mm Fiberglass Fabric Fireproof Woven Fiberglass Cloth M0 Fire Blanket Material

Place of Origin:China
Brand Name:SUNTEX
Certification:ISO9001; SGS M0 Certificate
Model Number:GF430P
Minimum Order Quantity:20 rolls
Payment Terms:T/T; L/C, Paypal...
Supply Ability:500000sqm/month
Product Details
Highlight:

fiberglass woven fabric

,

7628 fiberglass cloth
Application: Fire Blanket
Weight: 430g/sq.mtr
Working Temperature: 550 C
Property: Fire Resistant
Color: Off-white
Yarn: E-glass
Product Description

0.4mm Fiberglass Fabric Fireproof Woven Fiberglass Cloth M0 Fire Blanket Material



GF430P is a medium weight woven fiberglass fabric. It’s a premium grade loomstate glass fabric.



USA reference No. 3732.



GF430P is designed for the manufacturer of thermal insulation covers,fire curtain/blankets ,padding and other fire control system.



GF430P is also suitable for coating with difference elastomers and polymers.



Technical Data:



PROPERTY DATA
  (Metric) (English) Test methods
Weave 4H Satin Crowfoot
Yarn
Warp EC9 68 1﹡2 ECG 75 1/2
Weft EC9 68 1﹡2 ECG 75 1/2
Construction
Warp 18 ± 1 ends/cm 48 ± 3 ends/inch ASTM D 3775-96
Weft 12.6 ± 1 picks/cm 32 ± 3 picks/inch ASTM D 3775-96
Weight 430 ± 20 g/m2 12.6 ± 0.58 oz/yd2 ASTM D3776-96
Thickness 0.37 ± 0.02 mm 0.0145 ± 0.0008 inch ASTM D1777-96
Standard width 101.6 ± 1 cm 40 ± 0.39 inch ASTM D3776-96
155 ± 1 cm 61 ± 0.39 inch
Tensile strength
Warp 4816 N/5 cm 550 lbf/inch ASTM D5034-95
Weft 3503 N/5 cm 400 lbf/inch ASTM D5034-95
Temp resistance 5500C 10000F


Advantages:



1.Good fire resistant.M0 classification.

2.Flexible,soft, easy to be fabricated

5.Bears temperature 550C degree.



Main applications:



1.Fire blankets.

2.Heat protection.

3.Base materials for coating.



Guarantee:



All Suntex’s customers are covered by below warranty:

  • Cost-effective (low price). – Suntex understands the customers’ requirements of continually lowering the purchase prices. All guys at Suntex keep in increasing work efficiency to reducing the production costs to meet the customers’ requirements of costs reduction.
  • Timely delivery. – Suntex usually keeps sufficient stocks for the standard items. It assures us to deliver the goods to the customers worldwide in time.Replacement. – In case of the quality problem of delivered products, suntex will send out a new batch to replace without delaying.
  • Replacement. – In case of the quality of delivery was proved unsatisfied by our customer, suntex will send out a new batch to replace without delaying.
  • Environmental protection & human health care. – Suntex cares the human health and environmental protection. All materials used in the process of our production are harmless to the human and environment.
