Product Details:
Payment & Shipping Terms:
|
| Application: | Welding Spatter Protective Blanket | Weight: | 580g/sq.mtr |
|---|---|---|---|
| Working Temperature: | 550 C | Color: | Brown |
| Weaving: | Plain | Treatment: | Heat Treated |
| High Light: | fiberglass woven fabric,glass fiber woven fabric |
||

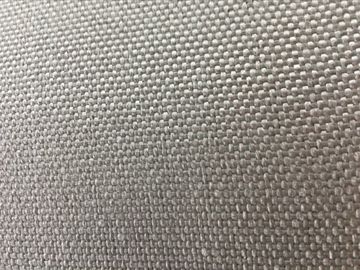

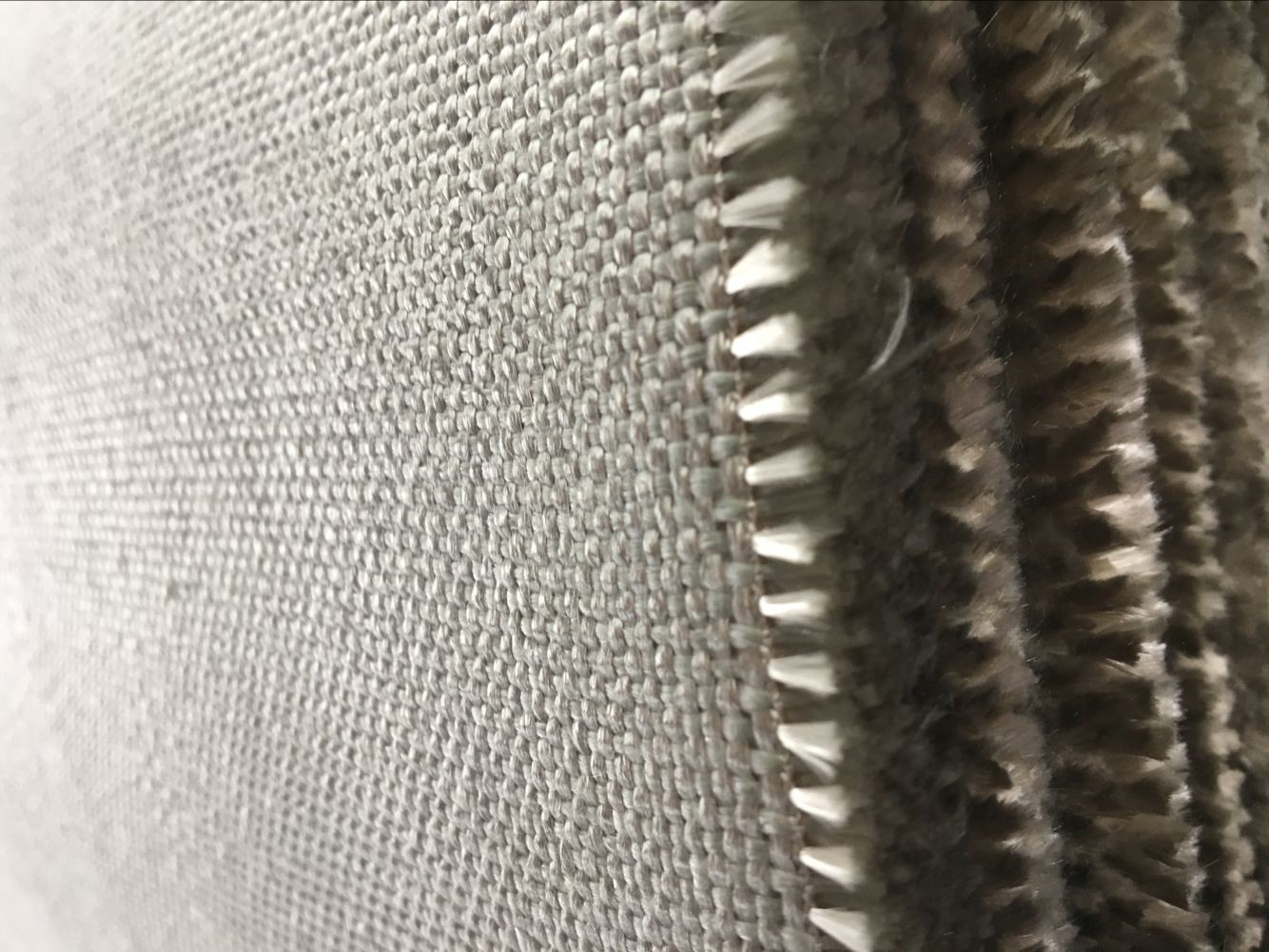

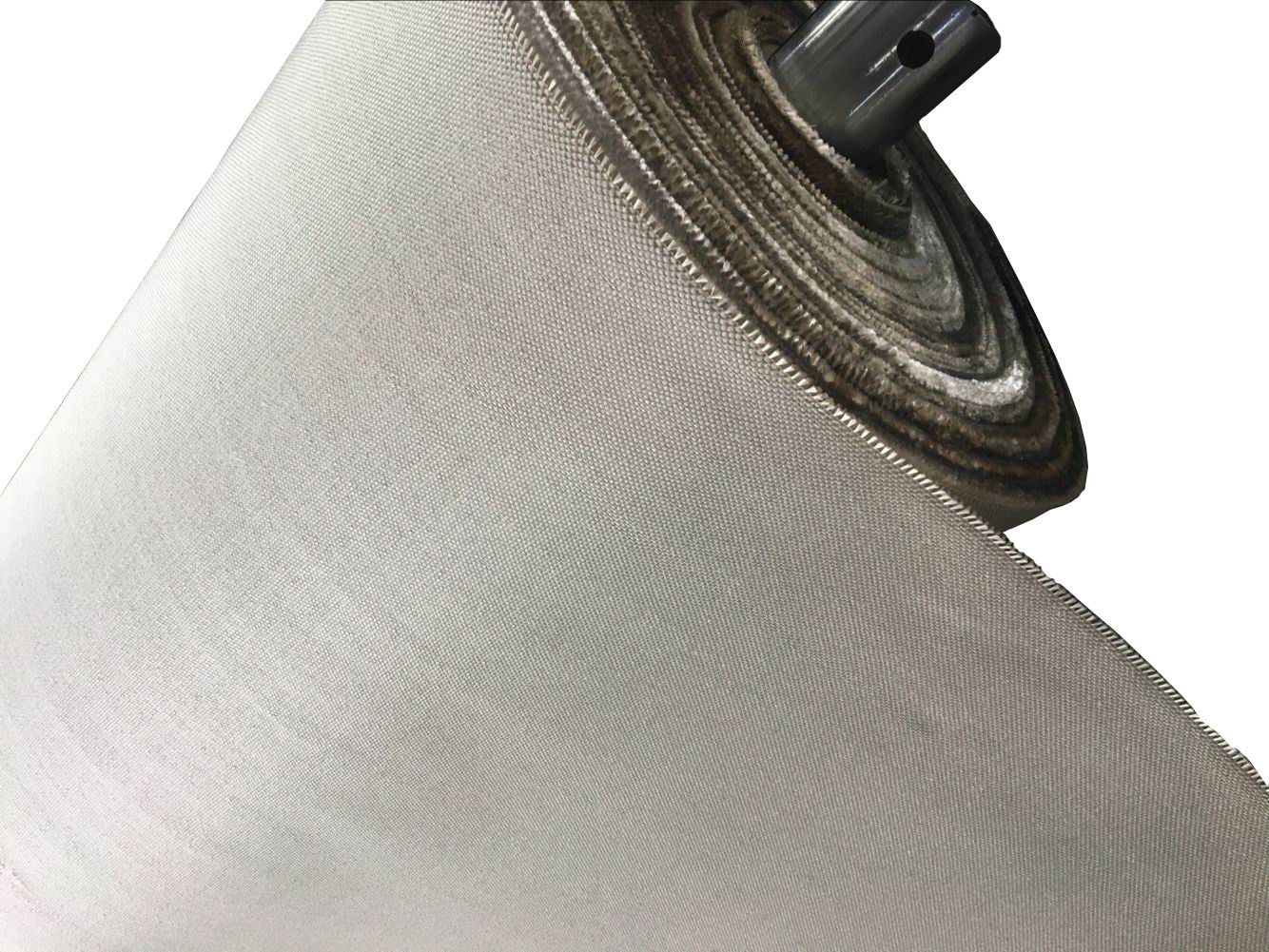

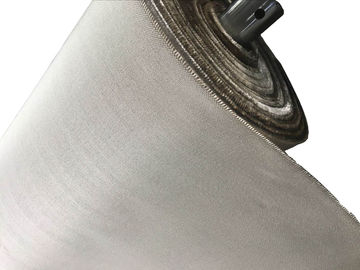

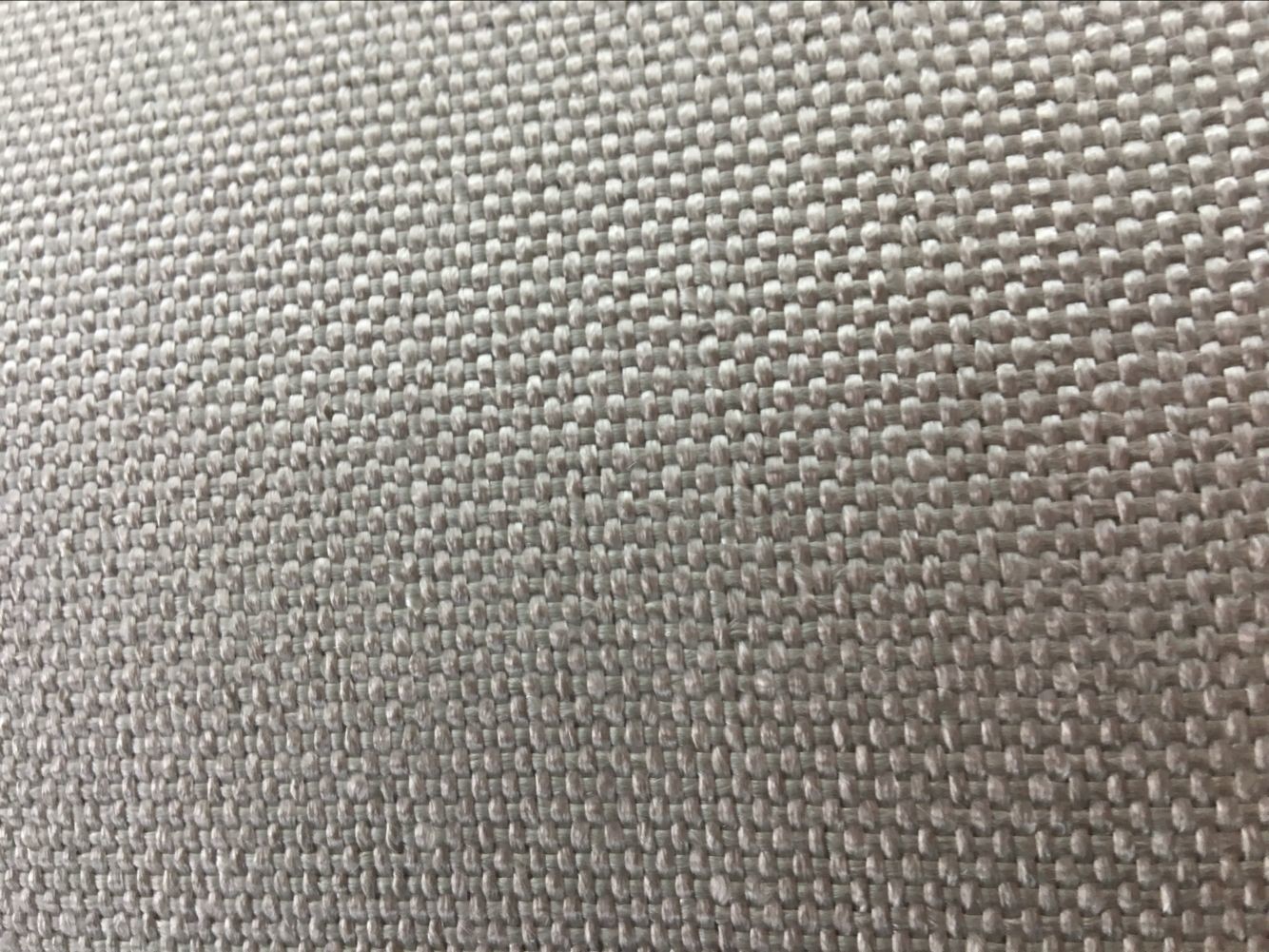

18oz 0.6mm Woven Fiberglass Cloth Welding Spatter Protection Fire Blanket Material
TGF580-HT is a medium weight woven texturized fiberglass fabric with heat treatment . It’s made with 9 micron glass yarn to provide economic yet highly effective thermal and acoustic insulation.
This fabric support temperatures to 5500C (10000F). Applications for this fabric includes lagging, padding, removable jacket, thermal insulation covers, welding blanket and other fire control system.
USA reference No. 2025
Technical Data:
| PROPERTY DATA | |||
| (Metric) | (English) | Test methods | |
| Weave | Plain | Plain | |
| Yarn | |||
| Warp | ET9 430 tex | ETG 11.6 | |
| Weft | ET9 430 tex | ETG 11.6 | |
| Construction | |||
| Warp | 8 ± 0.8 ends/cm | 20 ± 2 ends/inch | ASTM D 3775-96 |
| Weft | 5.7 ± 0.6 picks/cm | 14 ± 1 picks/inch | ASTM D 3775-96 |
| Weight | 580 ± 30 g/m2 | 17 ± 0.9 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.63 ± 0.037 mm | 0.025 ± 0.002 inch | ASTM D1777-96 |
| Standard width | 101.6 ± 1 cm | 40 ± 0.39 inch | ASTM D3776-96 |
| 152.4 ± 1 cm | 60 ± 0.39 inch | ||
| 182.9 ± 1 cm | 72 ± 0.39 inch | ||
| Tensile strength | |||
| Warp | 2250 N/5 cm | 257 lbf/inch | ASTM D5034-95 |
| Weft | 1216 N/5 cm | 140 lbf/inch | ASTM D5034-95 |
| Temp resistance | 5500C | 10000F | |
Advantages:
1. Good tensile strength.
2. Good fire resistant.M0 classification.
3. Flexible,soft, easy to be fabricated.
Main applications:
1. Welding barriers
2. Thermal insulation
3. Base materials for coating
