26oz Bulk E Glass Lagging Woven Fiberglass Cloth Welding Sparks Insulation Fire Blanket
fiberglass woven fabric
,7628 fiberglass cloth

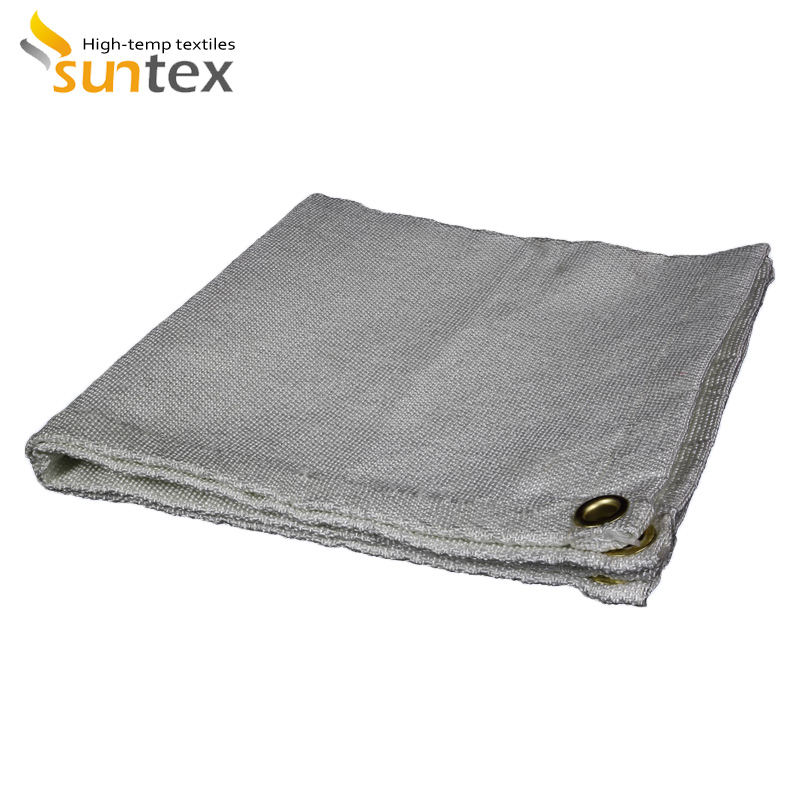

26oz Bulk E Glass Lagging Woven Fiberglass Cloth Welding Sparks Insulation Fire Blanket
TGF880-HT is a woven texturized fiberglass fabric with heat clean treatment which reduces the airborne fibers. It’s made with 9 micron glass yarn to provide economic yet highly effective thermal and acoustic insulation.
This fabric support temperatures to 5500C. Applications for this fabric includes lagging, padding, removable jacket, thermal insulation covers, flexible expansion joints,stress relief, welding blanket and other fire control system.
Technical Data:
| PROPERTY DATA | |||
| (Metric) | (English) | Test methods | |
| Weave | 4 Harness Satin | Crowfoot | |
| Treatment | Caramelized | Heat clean | |
| Yarn | |||
| Warp | ET9 480 tex | ETG 8.6 | |
| Weft | ET9 480 tex | ETG 8.6 | |
| Construction | |||
| Warp | 10 ± 0.6 ends/cm | 25 ± 2 ends/inch | ASTM D 3775-96 |
| Weft | 8 ± 0.5 picks/cm | 20 ± 1 picks/inch | ASTM D 3775-96 |
| Weight | 880 ± 40 g/m2 | 26 ± 1.2 oz/yd2 | ASTM D3776-96 |
| Thickness | 1.0 ± 0.1 mm | 0.039 ± 0.005 inch | ASTM D1777-96 |
| Standard width | 101.6 ± 1 cm | 40 ± 0.39 inch | ASTM D3776-96 |
| 152.4 ± 1 cm | 60 ± 0.39 inch | ||
| 182.9 ± 1 cm | 72 ± 0.39 inch | ||
| Tensile strength | |||
| Warp | 3407 N/5 cm | 389 lbf/inch | ASTM D5034-95 |
| Weft | 2041 N/5 cm | 223 lbf/inch | ASTM D5034-95 |
| Temp resistance | 5500C | 11000F | |
Advantages:
1.Good fire resistant.M0 classification.
2.Flexible,soft, easy to be fabricated
3.Good tansile strength.
4.Bears temperature 550C degree,800C for short time
Main applications:
1.Welding protection
2.Removable pads
3.Fabric expansion joints
4.Acoustic insulation
Guarantee:
All Suntex’s customers are covered by below warranty:
- Timely delivery. – Suntex usually keeps sufficient stocks for the standard items. It assures us to deliver the goods to the customers worldwide in time.Replacement. – In case of the quality problem of delivered products, suntex will send out a new batch to replace without delaying.
- Replacement. – In case of the quality of delivery was proved unsatisfied by our customer, suntex will send out a new batch to replace without delaying.
- Environmental protection & human health care. – Suntex cares the human health and environmental protection. All materials used in the process of our production are harmless to the human and environment.
