0.8mm Fire Resistant Thermal Insulation Fabric For Welding Protection Blanket Roll

Good quality Fire Resistant Fiberglass Fabric for sales
Good quality Fire Resistant Fiberglass Fabric for sales
I'm Online Chat Now

0.8mm Fire Resistant Thermal Insulation Fabric For Welding Protection Blanket Roll

China 0.8mm Fire Resistant Thermal Insulation Fabric For Welding Protection Blanket Roll supplier
0.8mm Fire Resistant Thermal Insulation Fabric For Welding Protection Blanket Roll supplier 0.8mm Fire Resistant Thermal Insulation Fabric For Welding Protection Blanket Roll supplier 0.8mm Fire Resistant Thermal Insulation Fabric For Welding Protection Blanket Roll supplier

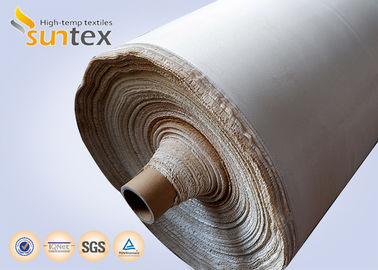

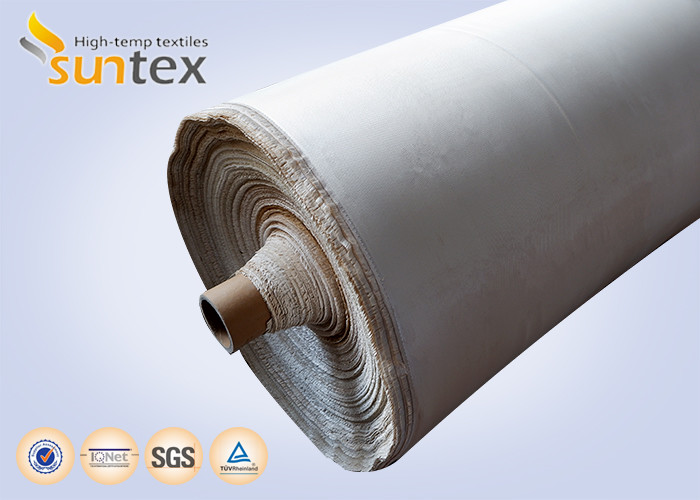

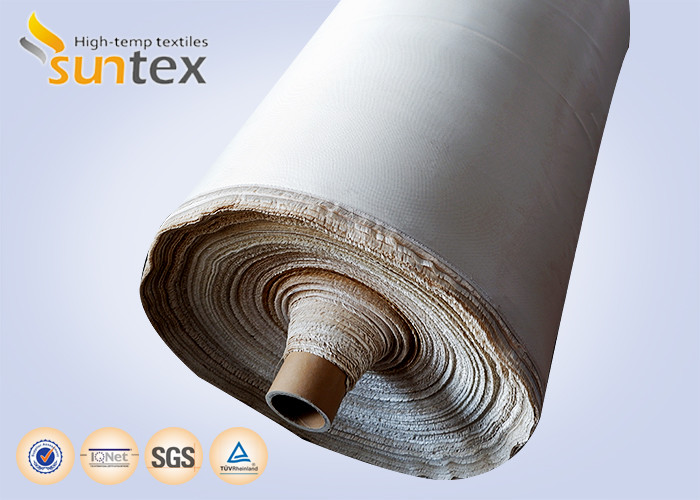

Large Image :  0.8mm Fire Resistant Thermal Insulation Fabric For Welding Protection Blanket Roll

Product Details:

Place of Origin: China
Brand Name: SUNTEX
Certification: ISO9001; SGS M0 Certificate
Model Number: GF880-HT

Payment & Shipping Terms:

Minimum Order Quantity: 20 rolls
Packaging Details: Each roll in carton, several cartons in a pallet
Delivery Time: 5-20 days
Payment Terms: T/T; L/C, Paypal...
Supply Ability: 500000sqm/month
Contact Now
Detailed Product Description
Application: Fire Protective Blanket Weight: 25 Oz/yd2
Working Temperature: 550 C Color: Brown
Pattern: 8H Satin Treatment: Heat Treatment
Width: 100cm, 150cm Yarns: 9um Glass Fiber

0.8mm Fire Resistant Thermal Insulation Fabric Welding Protection Blanket Roll



GF880-HT is a filament woven fiberglass fabric with heat treatment. Color Brown. Heat clean processing reduces the fiber airborn of the fabric,and makes it more human friendly.



GF880-HT is designed for the manufacturer of reusable fire or fire blankets,removable thermal insulation jackets, mattress, and other fire control systems.



Technical Data:



PROPERTY DATA
  (Metric) (English) Test methods
Weave 8H Satin 8H Satin
Treatment Caramelize Heat clean
Yarn
Warp EC9 33 1﹡8 ECG 150 1/8
Weft EC9 33 1﹡8 ECG 150 1/8
Construction
Warp 18 ± 1 ends/cm 48 ± 3 ends/inch ASTM D 3775-96
Weft 14 ± 1 picks/cm 33 ± 3 picks/inch ASTM D 3775-96
Weight 880 ± 60 g/m2 26 ± 1.3 oz/yd2 ASTM D3776-96
Thickness 0.8 ± 0.05 mm 0.03 ± 0.002 inch ASTM D1777-96
Standard width 101.6 ± 1 cm 40 ± 0.39 inch ASTM D3776-96
152.4 ± 1 cm 60 ± 0.39 inch
182.9 ± 1 cm 72 ± 0.39 inch

Temp resistance 5500C 10000F



Advantages:



1. Good fire resistant.M0 classification.

2. Flexible,soft, easy to be fabricated

3. Bears temperature 550C degree.



Main applications:



1. Fire blankets.

2. Welding barriers

3. Base materials for coating



Guarantee:



All Suntex’s customers are covered by below warranty:



  • 24-hour response –We always react in 24 hours whenever our customers have a request.
  • Timely delivery. – Suntex usually keeps sufficient stocks for the standard items. It assures us to deliver the goods to the customers worldwide in time.Replacement. – In case of the quality problem of delivered products, suntex will send out a new batch to replace without delaying.
  • Replacement. – In case of the quality of delivery was proved unsatisfied by our customer, suntex will send out a new batch to replace without delaying.

0.8mm Fire Resistant Thermal Insulation Fabric For Welding Protection Blanket Roll0.8mm Fire Resistant Thermal Insulation Fabric For Welding Protection Blanket Roll0.8mm Fire Resistant Thermal Insulation Fabric For Welding Protection Blanket Roll0.8mm Fire Resistant Thermal Insulation Fabric For Welding Protection Blanket Roll
