High Temperature Thermocovers Ptfe Coated Glass Fabric 1 Side 17OZ Fire Barrier

Good quality Fire Resistant Fiberglass Fabric for sales
Good quality Fire Resistant Fiberglass Fabric for sales
I'm Online Chat Now

High Temperature Thermocovers Ptfe Coated Glass Fabric 1 Side 17OZ Fire Barrier

China High Temperature Thermocovers Ptfe Coated Glass Fabric 1 Side 17OZ Fire Barrier supplier
High Temperature Thermocovers Ptfe Coated Glass Fabric 1 Side 17OZ Fire Barrier supplier High Temperature Thermocovers Ptfe Coated Glass Fabric 1 Side 17OZ Fire Barrier supplier High Temperature Thermocovers Ptfe Coated Glass Fabric 1 Side 17OZ Fire Barrier supplier

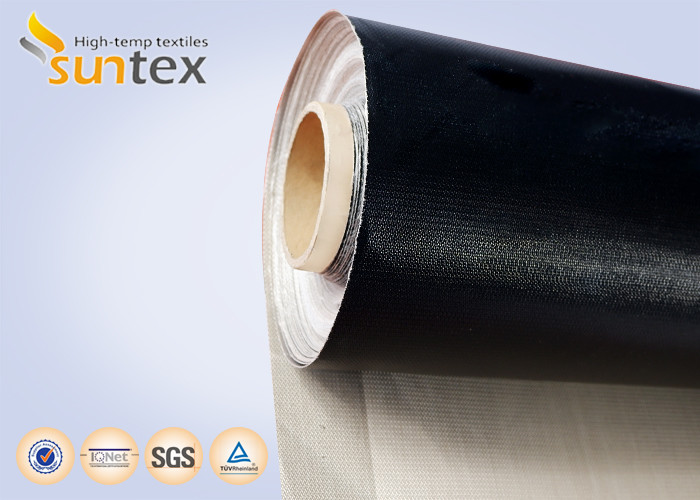

Large Image :  High Temperature Thermocovers Ptfe Coated Glass Fabric 1 Side 17OZ Fire Barrier

Product Details:

Place of Origin: China
Brand Name: SUNTEX
Certification: ISO9001; SGS M0 Certificate
Model Number: GF430P-PTFE135-8001

Payment & Shipping Terms:

Minimum Order Quantity: 20 rolls
Packaging Details: Each roll in carton, several cartons in a pallet
Delivery Time: 5-20 days
Payment Terms: T/T; L/C, Paypal...
Supply Ability: 500000sqm/month
Contact Now
Detailed Product Description
Unit Weight: 17 Oz/sqy Standard Width: 1520mm 1550m
Standard Thickness: 0.016 Inch Colour: Black
Pattern: Crowfoot Coating Temperature Resistance: 330℃ 620℉
Basic Fabric Temperature Resistance: 550℃ 1000℉ Coating: PTFE 1 Side

High Temperature Thermocovers PTFE Coated Fiberglass Fabric 17OZ Fire Barrier Fabric Glass Fiber Cloth



Introduce



GF430P-PTFE135-8001 is single side PTFE coated fiberglass, middle level thickness and weight. it is black color, have antistatic property, can be used in different environment like chemical corruption or volatile matter environment. PTFE has good resistance to abrasion.



Advantage



1. Fire resistance to 300℃.

2. Black color. End users can choose the favority face.

3. Hard surface, easy to be applied, sewn and fabricated.

4. Well abrasion, chemical resistance property.

5. Well tensile strength.

6. Nominal thickness, unit weight, pattern, all can be customized base on your use method.



Data



Standard weight 17oz/y2
Standard Thickness 0.016inch
Standard width 1520mm 1550mm
Coating PTFE
Colour Black
Fire resistance Well
Coating temperature resistance PTFE coating 620 ℉
Basic fabric working temperature Basic fabric 1000 ℉
Pattern Crowfoot
Yarn warp EC9 136 1*0
Yarn weft EC9 136 1*0
Construction warp 48 ± 3 ends/inch
Construction weft 32 ± 3 ends/inch
Fiberglass E-Glass



Applications



GF430P-PTFE135-8001 is usualy used as dust Lagging, fire curtain, removable heat insulation shell and heat insulation mattress.



Guarantees



All Suntex’s customers are covering by the warranty:

  • Replacement. – In case of the quality of delivery was proved unsatisfied by our customer, suntex will send out a new batch to replace without delaying.
  • Timely delivery. – Suntex usually keeps sufficient stocks for the standard items. It assures us to deliver the goods to the customers worldwide in time.
  • Cost-effective (low price). – Suntex understands the customers’ requirements of continually lowering the purchase prices. All guys at Suntex keep in increasing work efficiency to reducing the production costs to meet the customers’ requirements of costs reduction.
  • Environmental protection & human health care. – Suntex cares the human health and environmental protection. All materials used in the process of our production are harmless to the human and environment. (photos: ROHS, ASBESTOS FREE)

Related Products



Style No. Weight Thickness Color Coating
g/m2 oz/yd2 mm inch
GF430P-PTFE135-8001 580 17 0.43 0.016 Black 1 side
GF430P-PTFE133-8003 580 17 0.43 0.016 Silver Grey 1 side
GF430P-PTFE233-8006 610 20 0.45 0.017 Black/Grey 2 sides



Main products: Qualified Fiberglass fabric with silicone, PU, acrylic, neoprene, vermiculite, calcium silicate, graphite, PTFE coating.
Main application: Mainly used in the fields of fire prevention and thermal isolation, like removable thermal insulation jackets, fire curtains, welding blankets, fabric air dispersion/ventilation system, fabric expansion joint, etc.
Advertise & Exhibite: Our company participates in major professional exhibitions every year, and advertises in main search engines, professional portals, To build a world-renowned brand.
Sales Network: We do business with customers all over the world. Depends on our excellent products, over 80% of our products sold abroad, most of them export to European and American countries.
Package: 50m per roll, packed in carton, then loaded on pallet. Choose extra wood planks to protect your cargo.
Agency Policy: Customers whose quantity and rate of purchase reach certain level can be chosen to our local agent, we'll transfer sale and managerment affairs of our small customer around to agent.
Service: We belive "Customer is Supreme", all of our products can be customized, wholeday non-stop online service.
Payment Terms: 30-50% deposite after contract signed, balance paid before shipping. L/C,D/P support.
Delivery Terms: 30 days after deposite received.
Warranty Terms: One year warranty, if there're quality problems, our support team will help to solve it by consultation or technical guidance.
