Home ProductsPTFE Coated Fiberglass Fabric

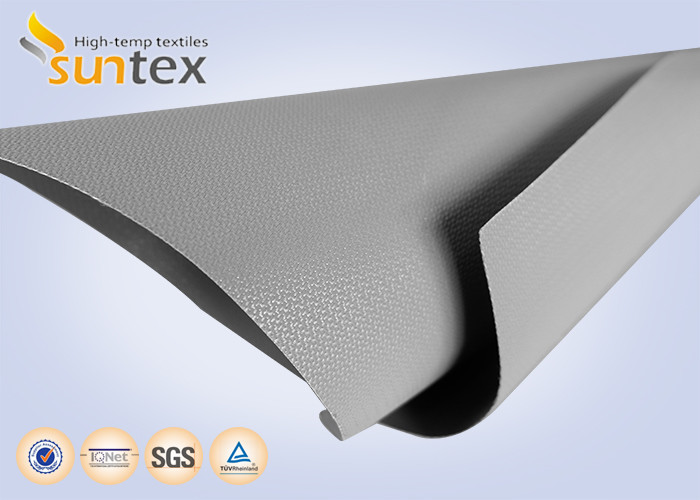

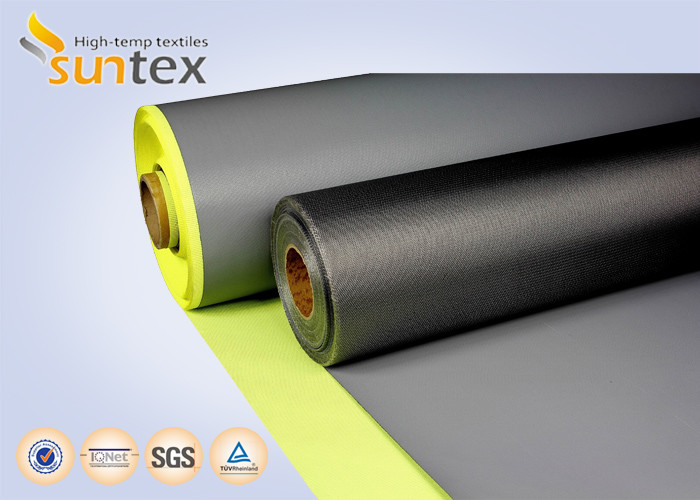

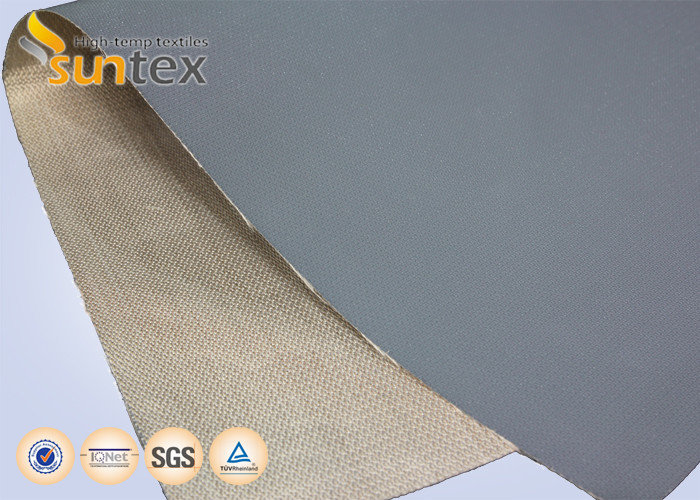

Flame Resistance PTFE Coated Fiberglass Fabric 17OZ Thermal Insulation Shell Fibreglass Cloth Roll

Good quality Fire Resistant Fiberglass Fabric for sales
Good quality Fire Resistant Fiberglass Fabric for sales
I'm Online Chat Now

Flame Resistance PTFE Coated Fiberglass Fabric 17OZ Thermal Insulation Shell Fibreglass Cloth Roll

China Flame Resistance PTFE Coated Fiberglass Fabric 17OZ Thermal Insulation Shell Fibreglass Cloth Roll supplier
Flame Resistance PTFE Coated Fiberglass Fabric 17OZ Thermal Insulation Shell Fibreglass Cloth Roll supplier Flame Resistance PTFE Coated Fiberglass Fabric 17OZ Thermal Insulation Shell Fibreglass Cloth Roll supplier Flame Resistance PTFE Coated Fiberglass Fabric 17OZ Thermal Insulation Shell Fibreglass Cloth Roll supplier

Large Image :  Flame Resistance PTFE Coated Fiberglass Fabric 17OZ Thermal Insulation Shell Fibreglass Cloth Roll

Product Details:

Place of Origin: China
Brand Name: SUNTEX
Certification: ISO9001; SGS M0 Certificate
Model Number: GF430P-PTFE133-8003

Payment & Shipping Terms:

Minimum Order Quantity: 20 rolls
Packaging Details: Each roll in carton, several cartons in a pallet
Delivery Time: 5-20 days
Payment Terms: T/T; L/C, Paypal...
Supply Ability: 500000sqm/month
Contact Now
Detailed Product Description
Unit Weight: 17oz/sqy Standard Width: 1520mm 1550m
Standard Thickness: 0.016inch Colour: Grey PTFE Coated Fiberglass Fabric
Pattern: Crowfoot Coating Temperature Resistance: 330℃ 620℉
Basic Fabric Temperature Resistance: 550℃ 1000℉ Coating: PTFE 1 Side
Fiberglass: E-glass

Flame Resistance Fabric PTFE Coated Fiberglass Fabric 17OZ Thermal Insulation Shell PTFE Coated Fabric​



Introduce



GF430P-PTFE133-8003 is one side PTFE coated on E-glass fabric, it's a middle level product measure by weight and thickness.



Advantage



PTFE coating can withstand 300℃ temperature, it's has excellent abrasion and corruption resistance, safe for many application in dangerous environment. Black coating has anti-stastic property, can fullfil extreme high requirement of many field.



Data



Standard weight 17oz/y2
Standard Thickness 0.016inch cm
Standard width 1520mm 1550mm
Coating PTFE
Colour Black
Fire resistance Well
Coating temperature resistance PTFE coating 330 ℃
Basic fabric working temperature Basic fabric 550 ℃
Construction warp 48 ± 3 ends/inch
Construction weft 32 ± 3 ends/inch



Applications



GF430P-PTFE133-8003 PTFE Coated Fiberglass Fabric is good for many application like dust lagging and expansion joint. Sometimes people also used it in fire control or anti-stastic solutions



Guarantees



All Suntex’s customers are covering by the warranty:

  • Replacement. – In case of the quality of delivery was proved unsatisfied by our customer, suntex will send out a new batch to replace without delaying.
  • Timely delivery. – Suntex usually keeps sufficient stocks for the standard items. It assures us to deliver the goods to the customers worldwide in time.
  • Cost-effective (low price). – Suntex understands the customers’ requirements of continually lowering the purchase prices. All guys at Suntex keep in increasing work efficiency to reducing the production costs to meet the customers’ requirements of costs reduction.
  • Environmental protection & human health care. – Suntex cares the human health and environmental protection. All materials used in the process of our production are harmless to the human and environment. (photos: ROHS, ASBESTOS FREE)

Related Products



Style No. Weight Thickness Color Coating
g/m2 oz/yd2 mm inch
GF430P-PTFE135-8001 580 17 0.43 0.016 Black 1 side
GF430P-PTFE133-8003 580 17 0.43 0.016 Silver Grey 1 side
GF430P-PTFE233-8006 610 20 0.45 0.017 Black/Grey 2 sides



Main products: Qualified Fiberglass fabric with silicone, PU, acrylic, neoprene, vermiculite, calcium silicate, graphite, PTFE coating.
Main application: Mainly used in the fields of fire prevention and thermal isolation, like removable thermal insulation jackets, fire curtains, welding blankets, fabric air dispersion/ventilation system, fabric expansion joint, etc.
Advertise & Exhibite: Our company participates in major professional exhibitions every year, and advertises in main search engines, professional portals, To build a world-renowned brand.
Sales Network: We do business with customers all over the world. Depends on our excellent products, over 80% of our products sold abroad, most of them export to European and American countries.
Package: 50m per roll, packed in carton, then loaded on pallet. Choose extra wood planks to protect your cargo.
Agency Policy: Customers whose quantity and rate of purchase reach certain level can be chosen to our local agent, we'll transfer sale and managerment affairs of our small customer around to agent.
Service: We belive "Customer is Supreme", all of our products can be customized, wholeday non-stop online service.
Payment Terms: 30-50% deposite after contract signed, balance paid before shipping. L/C,D/P support.
Delivery Terms: 30 days after deposite received.
Warranty Terms: One year warranty, if there're quality problems, our support team will help to solve it by consultation or technical guidance.



Flame Resistance PTFE Coated Fiberglass Fabric 17OZ Thermal Insulation Shell Fibreglass Cloth RollFlame Resistance PTFE Coated Fiberglass Fabric 17OZ Thermal Insulation Shell Fibreglass Cloth RollFlame Resistance PTFE Coated Fiberglass Fabric 17OZ Thermal Insulation Shell Fibreglass Cloth RollFlame Resistance PTFE Coated Fiberglass Fabric 17OZ Thermal Insulation Shell Fibreglass Cloth Roll
