7628 Flame Retardant Woven Fiberglass Cloth 550C Electronic Heat Insulation

Place of Origin China
Brand Name SUNTEX
Model Number GF200P
Minimum Order Quantity 20 rolls
Packaging Details Each roll in carton, several cartons in a pallet
Delivery Time 5-20 days
Payment Terms T/T; L/C, Paypal...
Supply Ability 500000sqm/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Heat Tthermocovers Weight 6OZ
Working Temperature 1000 F Performance Flame Retardant
Color Off-white Raw Material E-glass
High Light

fiberglass woven fabric

,

7628 fiberglass cloth

Leave a Message
Product Description

7628 Flame Retardant Fabric Woven Fiberglass Cloth 550C Electronic Heat Insulation



Of all forms of fiberglass textiles, woven fiberglass fabrics offer the widest range and the best control over thickness, weight and strength. This offers the materials engineer a wide choice of controlled fabric properties to satisfy design needs and meet objectives.



GF200P is a light weight woven fiberglass fabric. It’s a premium grade loomstate glass fabric.

USA reference No. 7628.

It is widely used in Electronics, Electrical Appliances, Support Structure, Industrial, Civilian Plate, Basic Fabric For Coating, Model Aircraft, Sports Equipment, Military Industry and Fire Resistance, Filter, Decoration(after special treatment), Packaging and in other field.



GF200P is suitable for coating with difference elastomers and polymers



Technical Data:



PROPERTY DATA
  (Metric) (English) Test methods
Weave Plain Plain
Yarn
Warp EC9 68 1﹡0 ECG 75 1/0
Weft EC9 68 1﹡0 ECG 75 1/0
Construction
Warp 17 ± 1 ends/cm 43 ± 3 ends/inch ASTM D 3775-96
Weft 12.4 ± 1 picks/cm 32 ± 3 picks/inch ASTM D 3775-96
Weight 200 ± 10 g/m2 5.88 ± 0.29 oz/yd2 ASTM D3776-96
Thickness 0.19 ± 0.01 mm 0.0074 ± 0.002 inch ASTM D1777-96
Standard width 101.6 ± 1 cm 40 ± 0.39 inch ASTM D3776-96
121.9 ± 1 cm 48 ± 0.39 inch
127 ± 1 cm 50 ± 0.39 inch
Temp resistance 5500C 10000F


Advantages:

  1. Great aggregative, low static/fuzz
  2. Fire resistance, extremely low aberration
  3. Easily wet out by resin
  4. Good mobility in resin
  5. Good physical/chemistry stability

Main applications:

  1. Thermal insulation
  2. Basic cloth for coating
  3. Reinforce plastics and composites
  4. Thermal applications
  5. Aircraft, automobiles
  6. Boat, surfboard building

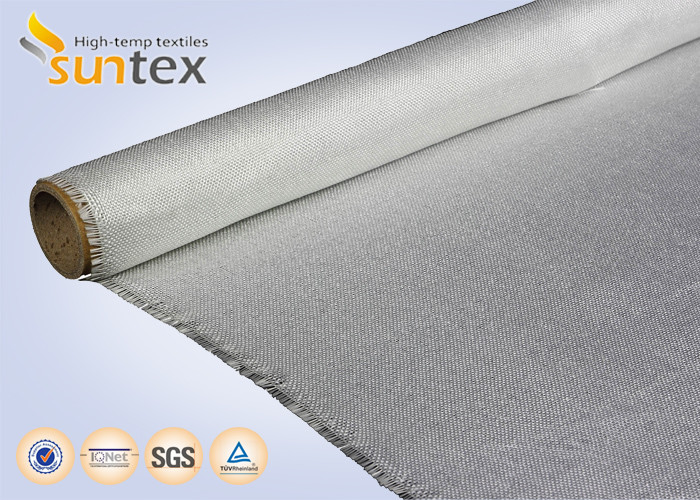

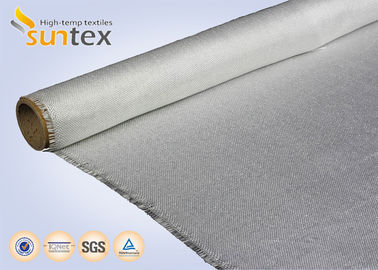

7628 Flame Retardant Woven Fiberglass Cloth 550C Electronic Heat Insulation 07628 Flame Retardant Woven Fiberglass Cloth 550C Electronic Heat Insulation 1

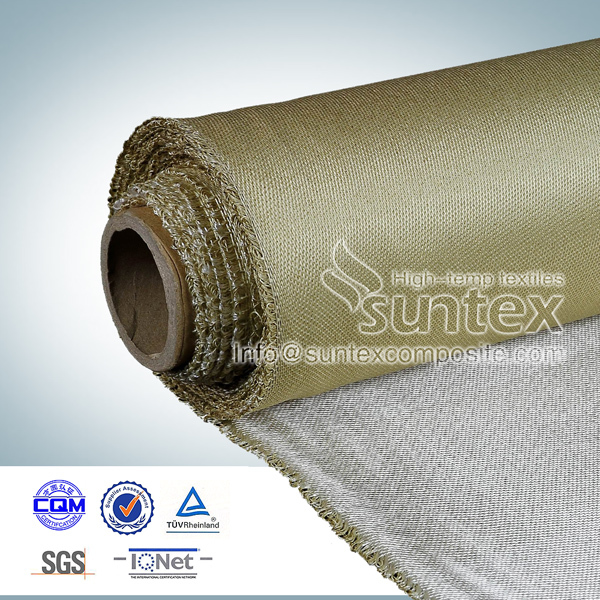

7628 Flame Retardant Woven Fiberglass Cloth 550C Electronic Heat Insulation 27628 Flame Retardant Woven Fiberglass Cloth 550C Electronic Heat Insulation 37628 Flame Retardant Woven Fiberglass Cloth 550C Electronic Heat Insulation 47628 Flame Retardant Woven Fiberglass Cloth 550C Electronic Heat Insulation 5
