Heat Retardant Door PTFE Coated Fiberglass Fabric 610g Thermal Case E Glass Fiberglass

Place of Origin China
Brand Name SUNTEX
Model Number GF430P-PTFE135-8006
Minimum Order Quantity 20 rolls
Packaging Details Each roll in carton, several cartons in a pallet
Delivery Time 5-20 days
Payment Terms T/T; L/C, Paypal...
Supply Ability 500000sqm/month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Nominal Weight 610 G/sq.m Nominal Width 1000mm 1520mm 1550m 2000m
Nominal Thickness 0.45mm Color Grey/Black
Weave 4H Satin Temperature Resistance /Working Temperature 550℃
Coating Temperature Resistance 330℃ Treatment PTFE Both Side
Fiberglass E-glass
Highlight

ptfe coated fiberglass cloth

,

e glass cloth

Leave a Message
Product Description

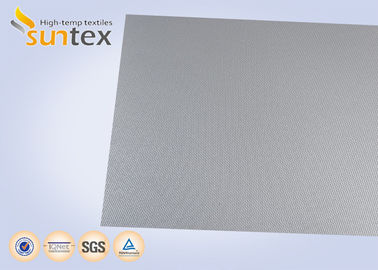

Heat Retardant Door PTFE Coated Fiberglass Fabric 610g Thermal Case PTFE Coated Fiberglass Cloth



Introduce



GF430P-PTFE135-8006 is E-glass fiberglass fabric with a PTFE coating. It can be grey, black or beige. Black colour 8006 is special aims in anti-static usage.



Advantage



GF430P-PTFE135-8006 PTFE Coated Fiberglass Fabric has ptfe coating on front and back, can provoide full protection than single side coating fabric. It also has these features: 300℃ fire resistance, excellent abrasion resistance and tensile strength.



Data



Nominal weight 610 g/sq.m
Nominal Thickness 0.45 mm
Nominal width 1000mm 1520mm 1550mm 2000mm
Treatment PTFE
Color of coating Black/Grey
Fire resistance Excellence
Temperature resistance Basic fabric 550 ℃, PTFE coating 330 ℃.



Applications



GF430P-PTFE135-8006 with grey clour can use in heavy industry, public building and other field, it can be made in different forms to fit your requirement, just like: dust Lagging, smoke screen, reusable thermal insulation sheath and thermal insulation mat.



Guarantees



All Suntex’s customers are covering by the warranty:

  • Replacement. – In case of the quality of delivery was proved unsatisfied by our customer, suntex will send out a new batch to replace without delaying.
  • Timely delivery. – Suntex usually keeps sufficient stocks for the standard items. It assures us to deliver the goods to the customers worldwide in time.
  • Cost-effective (low price). – Suntex understands the customers’ requirements of continually lowering the purchase prices. All guys at Suntex keep in increasing work efficiency to reducing the production costs to meet the customers’ requirements of costs reduction.
  • Environmental protection & human health care. – Suntex cares the human health and environmental protection. All materials used in the process of our production are harmless to the human and environment. (photos: ROHS, ASBESTOS FREE)

Related Products



Style No. Weight Thickness Color Coating
g/m2 oz/yd2 mm inch
GF430P-PTFE135-8001 580 17 0.43 0.016 Black 1 side
GF430P-PTFE133-8003 580 17 0.43 0.016 Silver Grey 1 side
GF430P-PTFE233-8006 610 20 0.45 0.017 Black/Grey 2 sides



Main products: Qualified Fiberglass fabric with silicone, PU, acrylic, neoprene, vermiculite, calcium silicate, graphite, PTFE coating.
Main application: Mainly used in the fields of fire prevention and thermal isolation, like removable thermal insulation jackets, fire curtains, welding blankets, fabric air dispersion/ventilation system, fabric expansion joint, etc.
Advertise & Exhibite: Our company participates in major professional exhibitions every year, and advertises in main search engines, professional portals, To build a world-renowned brand.
Sales Network: We do business with customers all over the world. Depends on our excellent products, over 80% of our products sold abroad, most of them export to European and American countries.
Package: 50m per roll, packed in carton, then loaded on pallet. Choose extra wood planks to protect your cargo.
Agency Policy: Customers whose quantity and rate of purchase reach certain level can be chosen to our local agent, we'll transfer sale and managerment affairs of our small customer around to agent.
Service: We belive "Customer is Supreme", all of our products can be customized, wholeday non-stop online service.
Payment Terms: 30-50% deposite after contract signed, balance paid before shipping. L/C,D/P support.
Delivery Terms: 30 days after deposite received.
Warranty Terms: One year warranty, if there're quality problems, our support team will help to solve it by consultation or technical guidance.
