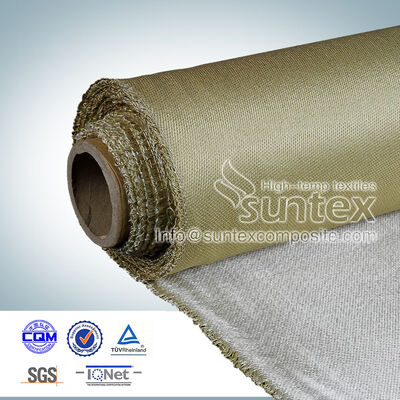

0.8mm Turbine Blanket High Temperature Fiberglass Cloth 8H Satin 3784HT 550C

Place of Origin:China
Brand Name:SUNTEX
Model Number:GF880-HT
Minimum Order Quantity:20 rolls
Payment Terms:T/T; L/C, Paypal...
Supply Ability:500000sqm/month
Product Details
Highlight:

high temperature fabric cloth

,

high temperature fabrics
Application: Fire Blanket
Weight: 880 G/sq.mtrs
Working Temperature: 550 C
Color: Tan
Weaving: 8H Satin
Treatment: Heat Clean
Width: 100cm
Yarns: 9um Glass Fiber
Product Description

0.8mm Turbine Blanket High Temperature Fiberglass Cloth Fire Blanket 3784HT 550C



GF880-HT is a woven fiberglass fabric with heat clean treated. Tan Color. Heat clean treatment helps to remove organics, set the weave dimensionally and reduce fray and loose fibers.



GF880-HT can be used as a marine lagging fabric and in nuclear applications as a covering for insulation and board;It is also can be used as welding and cutting protective barriers to prevent from sparks damage.



Fiberglass Cloth​ Technical Data:



PROPERTY DATA
  (Metric) (English) Test methods
Weave 8H Satin 8H Satin
Treatment Caramelize Heat clean
Yarn
Warp EC9 33 1﹡8 ECG 150 1/8
Weft EC9 33 1﹡8 ECG 150 1/8
Construction
Warp 18 ± 1 ends/cm 48 ± 3 ends/inch ASTM D 3775-96
Weft 14 ± 1 picks/cm 33 ± 3 picks/inch ASTM D 3775-96
Weight 880 ± 60 g/m2 26 ± 1.3 oz/yd2 ASTM D3776-96
Thickness 0.8 ± 0.05 mm 0.03 ± 0.002 inch ASTM D1777-96
Standard width 101.6 ± 1 cm 40 ± 0.39 inch ASTM D3776-96
152.4 ± 1 cm 60 ± 0.39 inch
182.9 ± 1 cm 72 ± 0.39 inch

Temp resistance 5500C 10000F



Fiberglass Cloth​ Advantages:



1. Good fire resistant.M0 classification.

2. Flexible,soft, easy to be fabricated.

3. Good abrasion resistance and tensile strength



Main applications:



1. Fire blankets.

2. shipboard/marine pipe lagging;Flange covers,Engine exhaust pipes heat insution.

3. Base materials for coating.
