Heat Retardant High Temperature Fiberglass Cloth 2250g Graphite Coated Turbine Blankets

Place of Origin:China
Brand Name:SUNTEX
Model Number:TGF2050-GP245-5004
Minimum Order Quantity:20 rolls
Payment Terms:T/T; L/C, Paypal...
Supply Ability:500000sqm/month
Product Details
Highlight:

high temperature fabric cloth

,

high temperature fabrics

Weight: 2250g/sqm
Width: 1000mm 1520mm 1550m 2000m
Thickness: 2.5mm
Color: Black
Weave: Plain
Temperature Resistance /Working Temperature: 750℃ 1300℉
Coated: Graphite Two Sides
Fiberglass: E-glass
Product Description

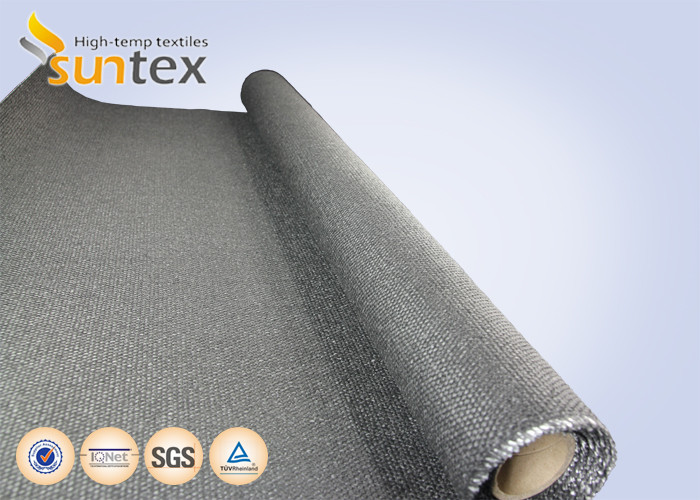

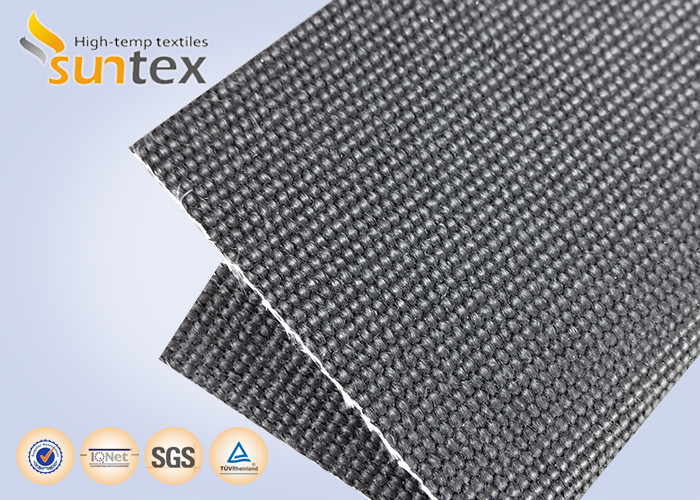

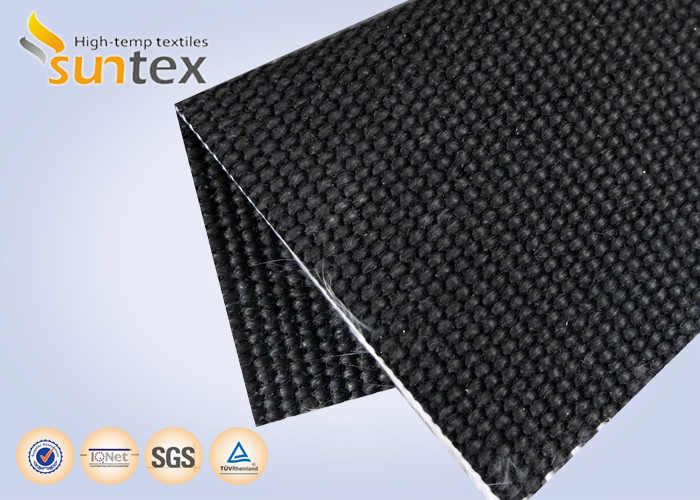

Heat Retardant High Temperature Fiberglass Fabric 2250g Graphite Coated Fiber Glass Cloth Turbine Blankets



Introduce



TGF2050-GP245-5004 is a extremly thick graphite coated fiberglass fabric, 2.5mm thickness and 750℃ high temperature resistance is its most significant advantage, so it is widely used in heavy duty welding and high temperature insulation field.



Advantage



1. High tempearture resistance up to 750-800℃.

2. Easy to be used, sewn and fabricated.

3. Good abrasion resistance property.

4. Good tensile strength.

5. Thickness, weight, weave, all can be customized base on your application.



Data



Weight 2250 g/m2
Thickness 2.5 mm
Width 1000mm 1520mm 1550mm 2000mm
Coated Graphite
Color Black
Fire resistance Good
Working temperature Basic fabric 550 ℃, Graphite coating 750 ℃.
Weave Plain
Yarn warp ET9 1800 tex
Yarn weft ET9 3600 tex
Construction warp 6 ± 0.6 ends/cm
Construction weft 2.5 ± 0.5 ends/cm
Fiberglass E-Glass



Applications



Fire control: Smoke curtain;

Protection: Fire blanket;

Air Distribution: Expansion joint, Air duct;

Thermal insulation: Reusable thermal insulation jacket, pad;



Related Products



Style No. Weight Thickness Color Coating
g/m2 oz/yd2 mm inch
TGF880-GP235-5001 980 28.8 1.0 0.039 Black 2 sides
TGF1000-GP235-5002 1100 32.4 1.4 0.055 Black 2 sides
TGF1250-GP235-5003 1400 41.2 1.6 0.063 Black 2 sides
TGF2050-GP245-5004 2250 66 2.5 0.098 Black 2 sides
TGF1000S-GP235-5015 1180 35 1.5 0.059 Black 2 sides
TGF2550-GP225-5020 2650 78 2.6 0.102 Black 2 sides



Main products: Qualified Fiberglass fabric with silicone, PU, acrylic, neoprene, vermiculite, calcium silicate, graphite, PTFE coating.
Main application: Mainly used in the fields of fire prevention and thermal isolation, like removable thermal insulation jackets, fire curtains, welding blankets, fabric air dispersion/ventilation system, fabric expansion joint, etc.
Advertise & Exhibite: Our company participates in major professional exhibitions every year, and advertises in main search engines, professional portals, To build a world-renowned brand.
Sales Network: We do business with customers all over the world. Depends on our excellent products, over 80% of our products sold abroad, most of them export to European and American countries.
Package: 50m per roll, packed in carton, then loaded on pallet. Choose extra wood planks to protect your cargo.
Agency Policy: Customers whose quantity and rate of purchase reach certain level can be chosen to our local agent, we'll transfer sale and managerment affairs of our small customer around to agent.
Service: We belive "Customer is Supreme", all of our products can be customized, wholeday non-stop online service.
Payment Terms: 30-50% deposite after contract signed, balance paid before shipping. L/C,D/P support.
Delivery Terms: 30 days after deposite received.
Warranty Terms: One year warranty, if there're quality problems, our support team will help to solve it by consultation or technical guidance.
