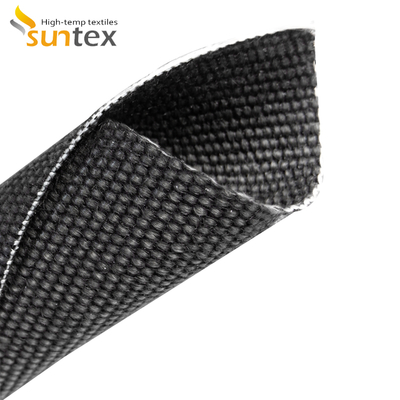

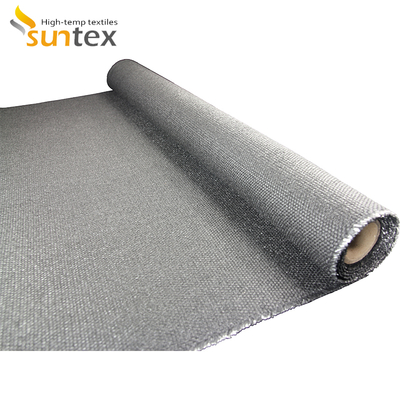

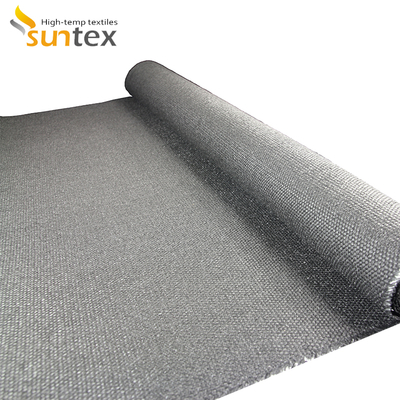

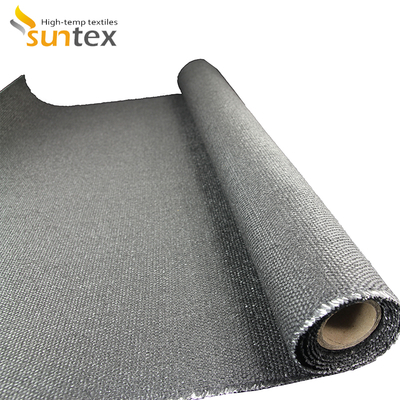

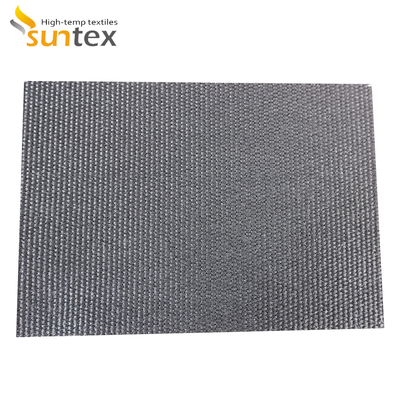

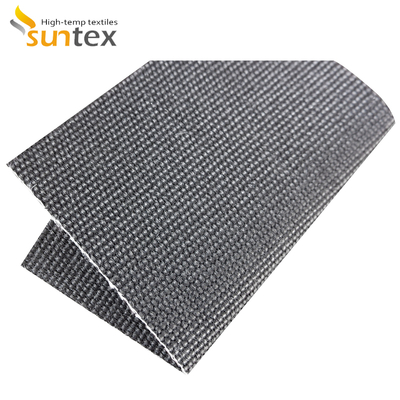

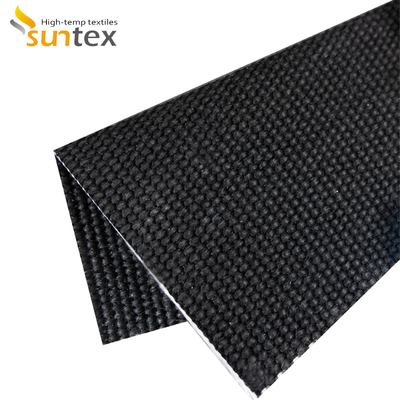

Heavy Duty Welding Protection Blanket High Temperature Fiberglass Fabric 1400g Graphite Coated Fire Proof Fabric

Place of Origin:CHINA
Brand Name:SUNTEX
Certification:No
Model Number:TGF1250-GP235-5003
Minimum Order Quantity:1000m
Price:Negotiable
Payment Terms:L/C, D/A, D/P, T/T, Western Union,
Supply Ability:100000m per month
Product Details
Highlight:

high temperature fabric cloth

,

high temperature fabrics
Weight: 1400g/sqm
Width: 1000mm 1520mm 1550mm 2000mm
Thickness: 1.6mm
Color: Black
Weave: Plain
Temperature Resistance /Working Temperature: 750℃ 1300℉
Coated: Graphite Two Sides
Fiberglass: E-glass Texturized Woven Fabric
Product Description

Heavy Duty Welding Protection Blanket High Temperature Fiberglass Fabric 1400g Graphite Coated Fire Proof Fabric



Introduce



TGF1250-GP235-5003 takes balance of thickness and strength, 1.6mm in thickness, makes it stronge enough for crash, and suitable for many fields.



Advantage



1. Hold temperature as high as 700℃, super than most of fiberglass fabric.

2. Soft material, easy to be cut and sewn.

3. Good resistance to abrasion and tensile strength.

4. Thickness, weight, weave, all can be customized base on your application.



Data



Weight 1400 g/m2
Thickness 1.6 mm
Width 1000mm 1520mm 1550mm 2000mm
Coated Graphite
Color Black
Fire resistance Good
Working temperature Basic fabric 550 ℃, Graphite coating 750 ℃.
Weave Plain
Yarn warp ET9 1250 tex
Yarn weft ET9 2500 tex
Construction warp 5 ± 0.6 ends/cm
Construction weft 2.5 ± 0.5 ends/cm
Fiberglass E-glass Texturized Woven Fabric



Applications



Fire control system: Smoke curtain, fireproof sleeve,

Heavy industry: Welding blanket, reusable thermal insulation cover, pad.



Guarantees



All Suntex’s customers are covering by the warranty:

  • Replacement. – In case of the quality of delivery was proved unsatisfied by our customer, suntex will send out a new batch to replace without delaying.
  • Timely delivery. – Suntex usually keeps sufficient stocks for the standard items. It assures us to deliver the goods to the customers worldwide in time.
  • Cost-effective (low price). – Suntex understands the customers’ requirements of continually lowering the purchase prices. All guys at Suntex keep in increasing work efficiency to reducing the production costs to meet the customers’ requirements of costs reduction.
  • Environmental protection & human health care. – Suntex cares the human health and environmental protection. All materials used in the process of our production are harmless to the human and environment. (photos: ROHS, ASBESTOS FREE)



Related Products



Style No. Weight Thickness Color Coating
g/m2 oz/yd2 mm inch
TGF880-GP235-5001 980 28.8 1.0 0.039 Black 2 sides
TGF1000-GP235-5002 1100 32.4 1.4 0.055 Black 2 sides
TGF1250-GP235-5003 1400 41.2 1.6 0.063 Black 2 sides
TGF2050-GP245-5004 2250 66 2.5 0.098 Black 2 sides
TGF1000S-GP235-5015 1180 35 1.5 0.059 Black 2 sides
TGF2550-GP225-5020 2650 78 2.6 0.102 Black 2 sides
