Flame Resistant Screen 650C High Temperature Resistant Fabric 34OZ Graphite Treated

Place of Origin China
Brand Name SUNTEX
Model Number TGF1000S-GP235-5015
Minimum Order Quantity 20 rolls
Packaging Details Each roll in carton, several cartons in a pallet
Delivery Time 5-20 days
Payment Terms T/T; L/C, Paypal...
Supply Ability 500000sqm/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Unit Weight 33.8oz/sqy Standard Width 1000mm 1520mm
Standard Thickness 0.059inch Colour Black
Coating Temperature Resistance 750℃ 1300℉ Basic Fabric Temperature Resistance 550℃ 1000℉
Coating Graphite 2 Sides
High Light

high temperature fabric cloth


fiberglass cloth heat resistant

Leave a Message
Product Description

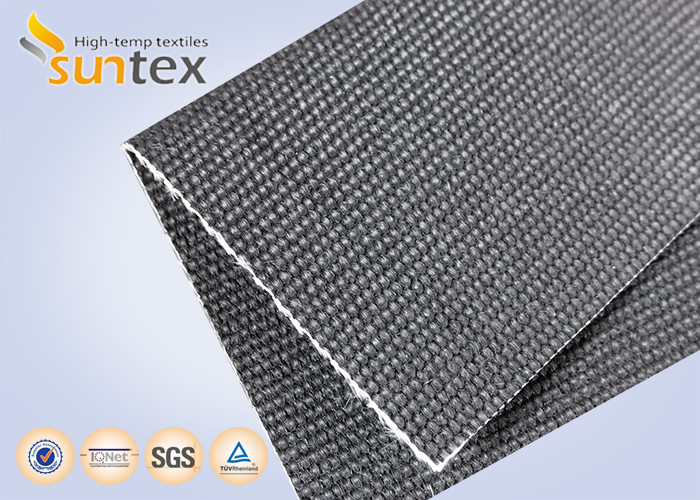

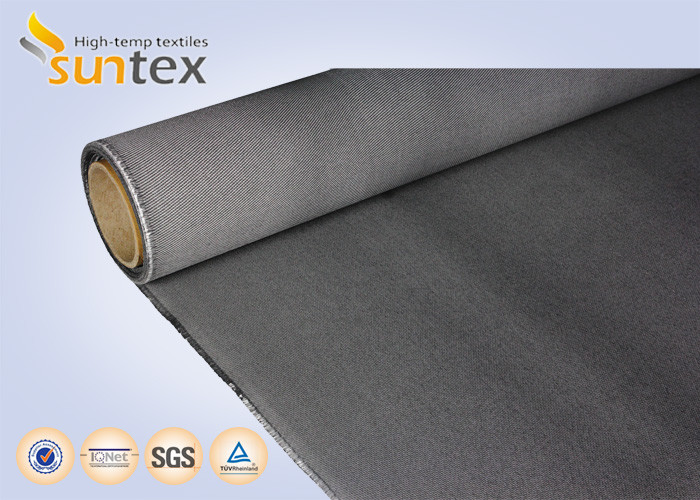

Flame Resistant Screen 650C High Temperature Fiberglass Cloth 34OZ Graphite Treated




TGF1000S-GP235-5015 is a heavy weight texturized s.s wire reinforced fiberglass fabric coated with a specially formulated graphite and polyurethane solution which provides high temperature and abrasion resistance properties for the manufacturer of gaskets, flexible expansion joints, removable jackets and other types of fire control systems. This material is soft and pliable and easy to sew.




1. Well certified fire resistance.

2. Black color.

3. Easy to be applied, sewn and fabricated.

4. Well abrasion resistance property.

5. Well tensile strength.

6. Nominal thickness, unit weight, pattern, all can be customized base on your use method.




Standard weight 33.8 oz/y2
Standard Thickness 0.059 inch
Standard width 1000mm 1520mm
Coating Graphite
Colour Black
Fire resistance Well
Coating temperature resistance Graphite coating 750 ℃
Basic fabric working temperature Basic fabric 550 ℃
Pattern Plain
Yarn warp ETG 4.0
Yarn weft ETG 4.0
Construction warp 13 ± 2 ends/inch
Construction weft 8 ± 1 ends/inch
Fiberglass E-glass Texturized Stainless Steel Wire Reinforced Woven Fabric




Fire door

Welding blanket


Removable heat insulation jacket

Heat insulation mattress

Fabric duct


Related Products


Style No. Weight Thickness Color Coating
g/m2 oz/yd2 mm inch
TGF880-GP235-5001 980 28.8 1.0 0.039 Black 2 sides
TGF1000-GP235-5002 1100 32.4 1.4 0.055 Black 2 sides
TGF1250-GP235-5003 1400 41.2 1.6 0.063 Black 2 sides
TGF2050-GP245-5004 2250 66 2.5 0.098 Black 2 sides
TGF1000S-GP235-5015 1180 35 1.5 0.059 Black 2 sides
TGF2550-GP225-5020 2650 78 2.6 0.102 Black 2 sides
