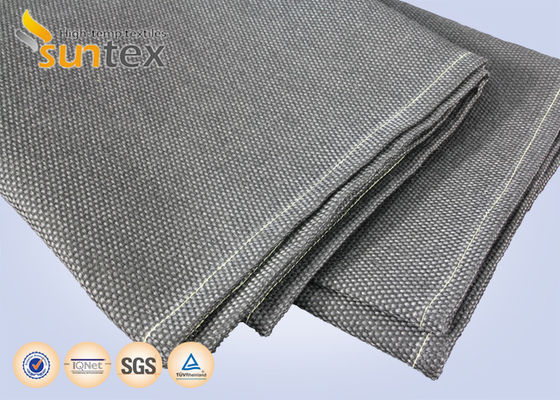

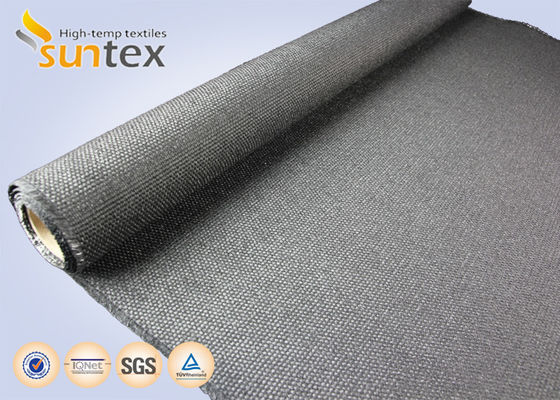

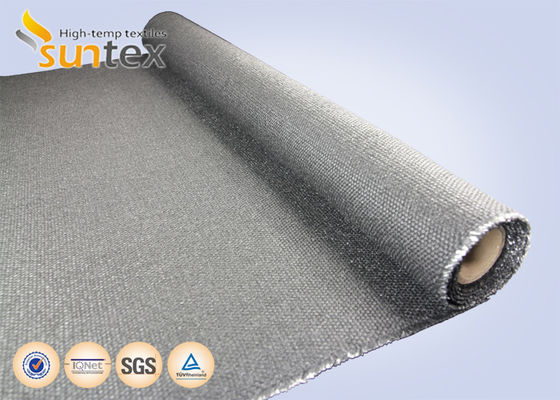

Graphite Coated 1.4mm Firestop Fire Blanket Roll, 650 Degrees Heat Resistant Blanket Fabric On Roll

Place of Origin:CHINA
Brand Name:SUNTEX
Model Number:TGF1000-GP235-5002
Minimum Order Quantity:1000m
Payment Terms:L/C,D/A,D/P,T/T,Western Union,
Supply Ability:100000m per month
Product Details
Highlight:

welding blanket roll

,

fire protection blanket
Nominal Weight: 1100 G/sq.m
Nominal Width: 1000mm
Nominal Thickness: 1.4mm
Color: Noir
Temperature Resistance /Working Temperature: 750℃
Basic Fabric Temperature Resistance: 550℃
Treatment: Graphite Both Sides
Product Description

650 C High Temp. Resistant 1.4mm Fire Protection Blanket Graphite Coated Firestop Fabric



Introduce



Unique Graphit coating makes this fabric has extremely resistance to high temperature as higher as 650℃. It's also has excellent resistance to abrasion, widely used in thermal insulation and fire contro systems. Also it has good tensile strength, this material is also soft and easy to use and sewing.



Graphite Coated 1.4mm Firestop Fire Blanket Roll, 650 Degrees Heat Resistant Blanket Fabric On Roll



Data



Nominal weight 1150 g/sqm
Nominal thickness 1.4 mm
Nominal width 1000mm 1520mm 1550mm
Treatment Graphite
Color of coating Black
Fire resistance Excellence
Temperature resistance Basic fabric 550 ℃, Graphite coating 750 ℃.
Weave Plain
Fiberglass E-Glass Texturized Woven Fabric



Applications



Industrial Fire Blanket Roll For fire control system: Smoke door, Fire curtain.

For welding protection: Welding blanket,

For thermal insulation: Reusable thermal insulation sheath, mattress



Related Products



Style No. Weight Thickness Color Coating
g/m2 oz/yd2 mm inch
TGF880-GP235-5001 980 28.8 1.0 0.039 Black 2 sides
TGF1000-GP235-5002 1100 32.4 1.4 0.055 Black 2 sides
TGF1250-GP235-5003 1400 41.2 1.6 0.063 Black 2 sides
TGF2050-GP245-5004 2250 66 2.5 0.098 Black 2 sides
TGF1000S-GP235-5015 1180 35 1.5 0.059 Black 2 sides
TGF2550-GP225-5020 2650 78 2.6 0.102 Black 2 sides





Graphite Coated 1.4mm Firestop Fire Blanket Roll, 650 Degrees Heat Resistant Blanket Fabric On RollGraphite Coated 1.4mm Firestop Fire Blanket Roll, 650 Degrees Heat Resistant Blanket Fabric On Roll

Graphite Coated 1.4mm Firestop Fire Blanket Roll, 650 Degrees Heat Resistant Blanket Fabric On Roll

Graphite Coated 1.4mm Firestop Fire Blanket Roll, 650 Degrees Heat Resistant Blanket Fabric On Roll

Graphite Coated 1.4mm Firestop Fire Blanket Roll, 650 Degrees Heat Resistant Blanket Fabric On Roll

Graphite Coated 1.4mm Firestop Fire Blanket Roll, 650 Degrees Heat Resistant Blanket Fabric On Roll



Graphite Coated 1.4mm Firestop Fire Blanket Roll, 650 Degrees Heat Resistant Blanket Fabric On Roll
