Product Details:
Payment & Shipping Terms:
|
| Nominal Weight: | 1070 G/sq.m | Nominal Width: | 1000mm 1520mm 1550mm |
|---|---|---|---|
| Nominal Thickness: | 1.4mm | Industrial Fire Blanket Roll Color: | Brown |
| Temperature Resistance /Working Temperature: | 1000℃ | Basic Fabric Temperature Resistance: | 550℃ 1000℉ |
| Treatment: | Vermiculite On The Both Side | Appllication: | Heavy Duty Welding Protection |
| Usage: | Fire Resistant | ||
| High Light: | welding blanket roll,fiberglass welding blanket roll |
||

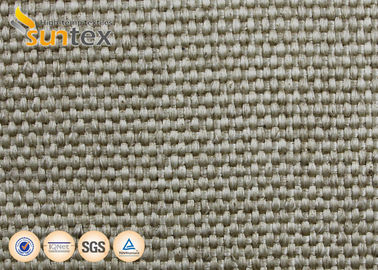

1.3mm Heavy Duty Fire Protection Blanket Vermiculite Glassfiber Cloth 800 C Heat Resistant
Introduce
TGF1000-VE226-5008 is a heavy weight woven texturized fiberglass fabric impregnated with specially formulated vermiculite dispensers which provides high temperature and abrasion resistance properties for the manufacturer of welding protection, gaskets, flexible expansion joints, removable jackets and other types of fire control systems.
Advantage
1. Excellent certified fire resistance.
2. Extreme high temperature resistant .
3. Excellent tensile strength.
4. Thickness, unit weight, weave, all can be customized base on your use method.
Data
| BASE FABRIC | Base fabric style No. TGF1000 | |||
| (Metric) | (English) | Test methods | ||
| Weave | Plain | Plain | ||
| Yarn | ||||
| Warp | ET9 1250 tex | ETG 4.0 | ||
| Weft | ET9 1250 tex | ETG 4.0 | ||
| Construction | ||||
| Warp | 5 ± 0.5 ends/cm | 13 ± 2 ends/inch | ASTM D 3775-96 | |
| Weft | 3 ± 0.3 picks/cm | 8 ± 1 picks/inch | ASTM D 3775-96 | |
| Weight | 1000 ± 50 g/m2 | 29.41 ± 1.5 oz/yd2 | ASTM D3776-96 | |
| Thickness | 1.3 ± 0.1 mm | 0.05 ± 0.005 inch | ASTM D1777-96 | |
|
|
||||
| COATED FABRIC | Coating style No. VE226-5008 | |||
| Coating | Vermiculite impregnated on both sides | |||
| Weight | 1070 ± 50 g/m2 | 32 ± 1.5 oz/yd2 | ASTM D3776-96 | |
| Thickness | 1.40 ± 0.05 mm | 0.055 ±0.002 inch | ASTM D1777-96 | |
| Color | Brown (Yellow) | |||
| Temp resistance |
5500C for basic fabric 8000C for the coating |
14000F |
||
Applications
Fire blanket
Smoke door
Flexible sleeve
Reusable thermal insulation sheath
Thermal insulation mattress
Flexible duct
