Product Details:
Payment & Shipping Terms:
|
| Thickness: | 3mm | Width: | 75mm |
|---|---|---|---|
| Temperature Resistant: | 550 C | Raw Materail: | E-glass |
| Roll Length: | 30m Or Customerized | Applications: | Boiler Door Heat Sealing |
| High Light: | fiberglass rope seal,fiberglass cloth tape |
||

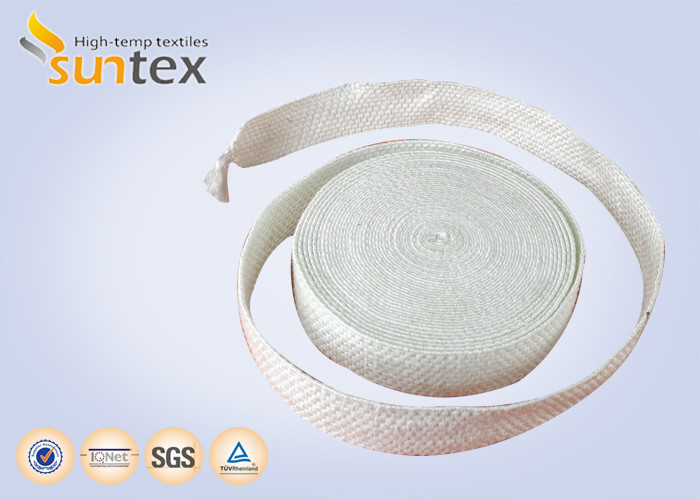

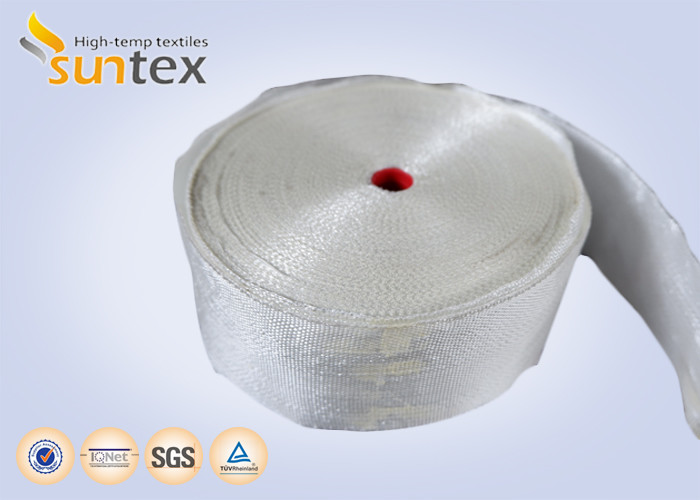

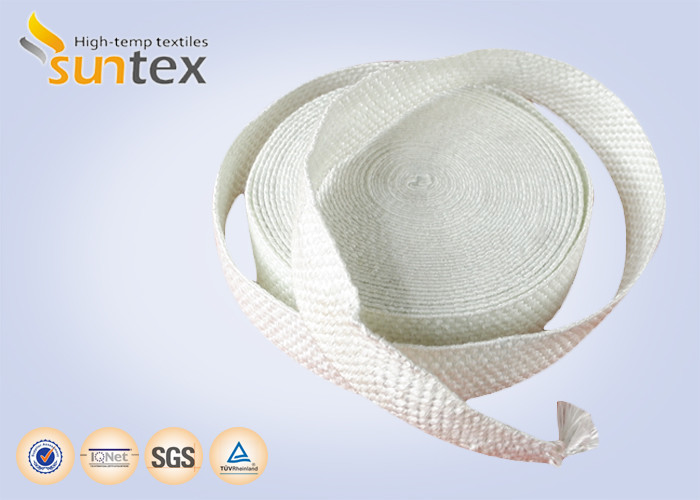

Fire Resistance Heat Protecting Fiberglass Tape Boiler Door Heat Sealing Insulation
Descriptions
Base raw materail is 9 micron diameter E-glass fiber.It is workable in continuous temperatures to 1000°F (540°C).
Thickness from 1mm to 6mm,width from 20mm to 200mm are available.The roll length is 30m ,50m or customerized.
The properties of the glass tape:
High-temperature resistance, electric insulation, corrosion resistance etc.
Usually used in high temperature compression seals , thermal insulation wraps to contain heat and protect hoses, cables, workers and surrounding components from high temp.
Fiberglass tape can also be used for manufacturing of silicone elastomer.
Color can be white or black.
Technical Parameters:
| Style | Weave |
Thick. (mm) |
Width (mm) |
Weight (gram/mtr) |
Tensile strength N/10x200mm |
Working temp. | Color |
| ETT3/75 | Plain | 3 | 75 | 150+/-30 | 740 | 550 C | White |
The related series for heat insulation and sealing purpose:
| Style No. | Density | Thickness | Width |
| (g/m) | (mm) | (inch) | |
| ETT2/25 | 35 | 2 | 25 |
| ETT2/50 | 70 | 2 | 50 |
| ETT2/75 | 105 | 2 | 75 |
| ETT3/20 | 40 | 3 | 20 |
| ETT3/25 | 50 | 3 | 25 |
| ETT3/50 | 100 | 3 | 50 |
| ETT3/75 | 150 | 3 | 75 |
| ETT3/100 | 200 | 3 | 100 |
