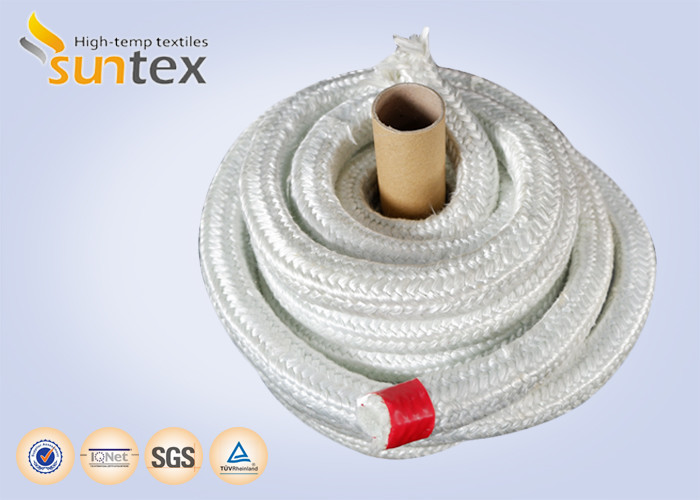

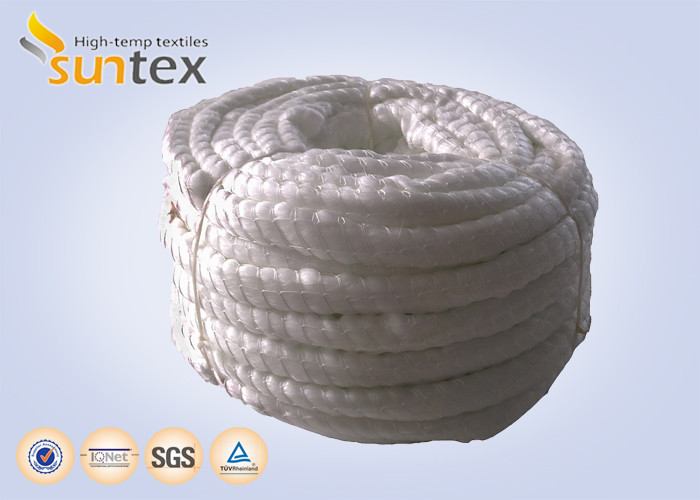

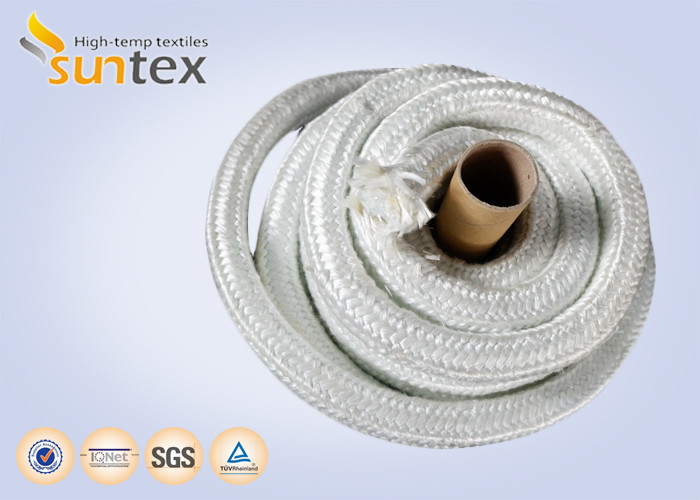

550C Heat Resistant Fiberglass Rope For Oven Door Seals Gasketing

550C Heat Resistant Fiberglass Rope For Oven Door Seals Gasketing
550C Heat Resistant Fiberglass Rope For Oven Door Seals Gasketing
video play

Large Image :  550C Heat Resistant Fiberglass Rope For Oven Door Seals Gasketing

Product Details:
Place of Origin: China
Brand Name: SUNTEX
Model Number: RLG 30
Payment & Shipping Terms:
Minimum Order Quantity: 1000 mtrs
Packaging Details: rolls packed in boxes, than loaded on container
Delivery Time: 10-20days; depends on the deliver volume
Payment Terms: T/T, L/C, D/P
Supply Ability: 60000 m/Month
Detailed Product Description
Dia.: 30mm Temperature Resistant: 550 C
Materail: E-glass Roll Length: 30m Or 50m
Applications: Oven Door Seals Gasketing Applications
High Light:

fiberglass cloth tape

,

silicone coated fiberglass sleeving

550C Heat Resistant Fiberglass Rope For Oven Door Seals Gasketing Applications



Descriptions



SUNTEX offers a variety of Fiberglass Rope products;Our high-temperature ropes insulate and seal against heat. They are used for gasketing and wicking, as oven door seals, or as drawstrings for industrial removable insulation jackets, as well as high-temperature industrial packing and expansion joints.



Our fiberglass rope is constructed of high-quality Type E Fiberglass yarns, knitted into both soft and dense rope forms. Fiberglass rope will not burn and is suitable for use in continuous temperatures to 1000°F (540°C).





Applications include:

· Gasketing and wicking applications

· Oven door seals

· Drawstring for removable insulation jackets



Technical Parameters:



Description: Texturized fiberglass Braided Round Rope
Content: 100% glass fiber
Diameter of yarn: 9 um
Diameter of rope 30mm
Density 79g/m ±20g
Thermal Conductivity 0.035(w/(m.k)
Temp resistance: No more than 550 0C
Freeze temp: -50 0C
Loss on Ignition ≦3.52%
Chemical composition
SiO2 Al2O3 CaO MgO R2O Fe2O3



67.3±0.5 %





6.4±0.4%





9.6±0.3%





4.5±0.3 %





11.8~16.1%





≤0.4







The related series for heat insulation and sealing purpose:



Style No. Density Dia. Length
(g/m) (mm) (m)
PLG 12 38 12 30
PLG 15 58 15 30
PLG 20 62 20 30
PLG 25 73 25 30
PLG 40 135 40 30
