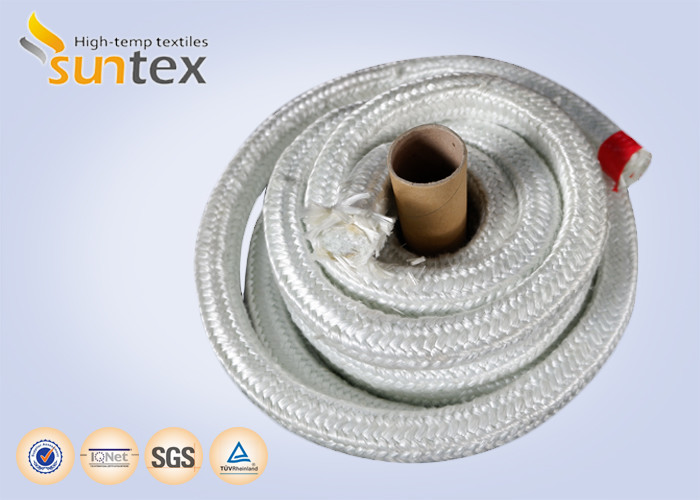

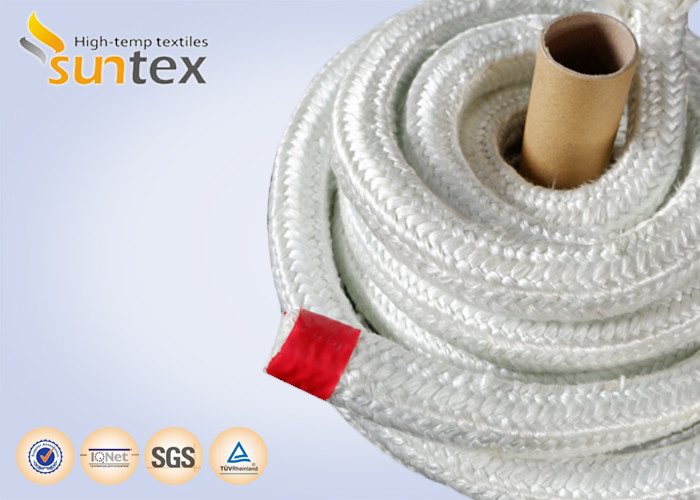

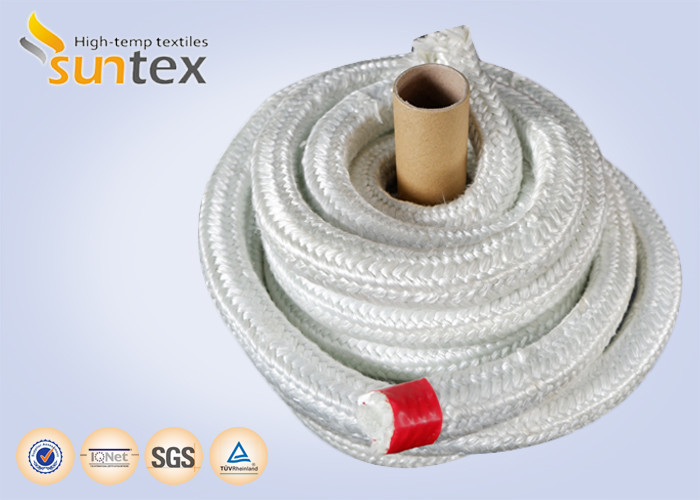

Heat Insulation 550C Fiberglass Rope Gasket For Industrial Furnace Fireplaces

  • Heat Insulation 550C Fiberglass Rope Gasket For Industrial Furnace Fireplaces
  • Heat Insulation 550C Fiberglass Rope Gasket For Industrial Furnace Fireplaces
  • Heat Insulation 550C Fiberglass Rope Gasket For Industrial Furnace Fireplaces
  • Heat Insulation 550C Fiberglass Rope Gasket For Industrial Furnace Fireplaces
Place of Origin China
Brand Name SUNTEX
Model Number RLG 25
Minimum Order Quantity 1000 mtrs
Packaging Details rolls packed in boxes, than loaded on container
Delivery Time 10-20days; depends on the deliver volume
Payment Terms T/T, L/C, D/P
Supply Ability 60000 m/Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Diameter 25mm Working Temp. 550 C
Materail E-glass Fiber Roll Length 30m Or Customerized
Applications Furnace Fireplaces Door Heat Seals Color Off-white
High Light

fiberglass rope seal

,

fiberglass cloth tape
Leave a Message
Product Description

Heat Insulation 550C Fiberglass Rope For Industrial Furnace Fireplaces Door Heat Seals



Descriptions



We offer a range of Fiberglass Rope and tapes which insulate and seal against heat.

The ropes are used for gasketing ,oven door seals, or as drawstrings for industrial removable insulation jackets, also for  high-temperature industrial packing or expansion joints components..



The construction of rope: high-quality Type E Fiberglass yarns, knitted into both soft and dense rope forms. This type of fiberglass rope is non-combustible and suitable for use in continuous temperatures to 1000°F (540°C).





Applications Recommended:



· Oven/Stove Door Thermal Seal

· OEM Equipment Thermal Door/Enclosure Seal

· High-temperature Industrial Packing



Technical Parameters:



Description: Texturized fiberglass Braided Round Rope
Content: 100% glass fiber
Diameter of yarn: 9 um
Diameter of rope 25mm
Density 7g/m ±20g
Thermal Conductivity 0.035(w/(m.k)
Temp resistance: No more than 550 0C
Freeze temp: -50 0C
Loss on Ignition ≦3.52%
Chemical composition
SiO2 Al2O3 CaO MgO R2O Fe2O3



67.3±0.5 %





6.4±0.4%





9.6±0.3%





4.5±0.3 %





11.8~16.1%





≤0.4







The related series for heat insulation and sealing purpose:



Style No. Density Dia. Length
(g/m) (mm) (m)
PLG 12 38 12 30
PLG 15 58 15 30
PLG 20 62 20 30
PLG 30 79 30 30
PLG 40 135 40 30
