Heat Insulation 550C Fiberglass Rope For Industrial Furnace Fireplaces Door Heat Seals
fiberglass rope seal

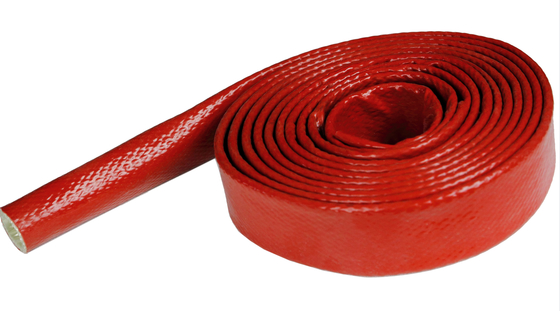

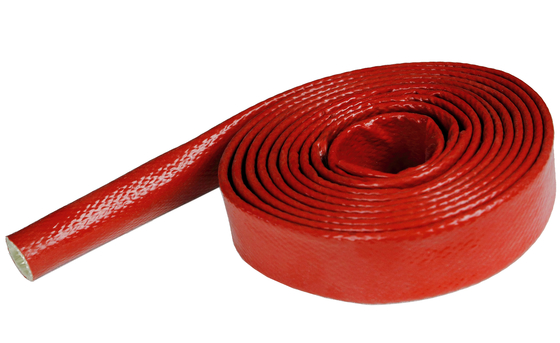

,silicone coated fiberglass sleeving
Heat Insulation 550C Fiberglass Rope For Industrial Furnace Fireplaces Door Heat Seals
Descriptions

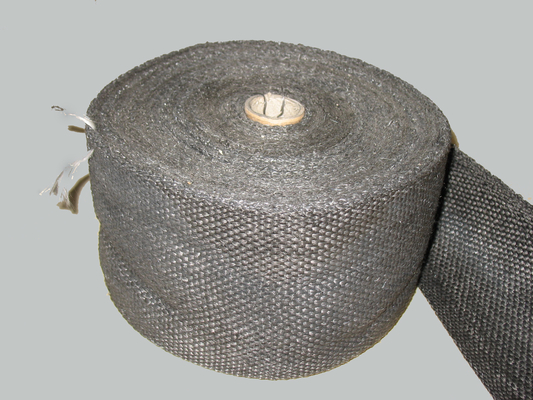

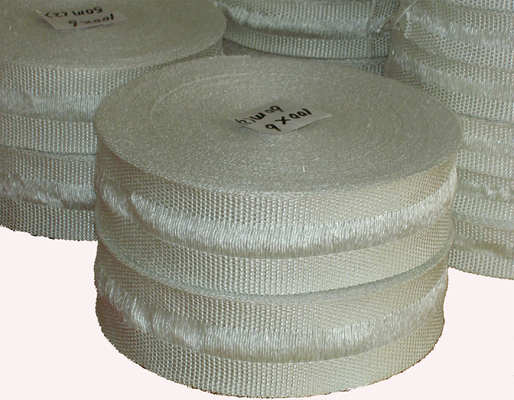

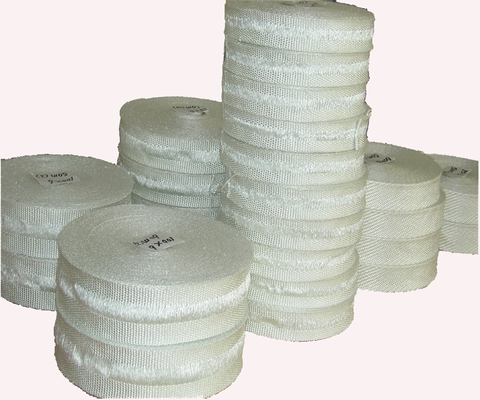

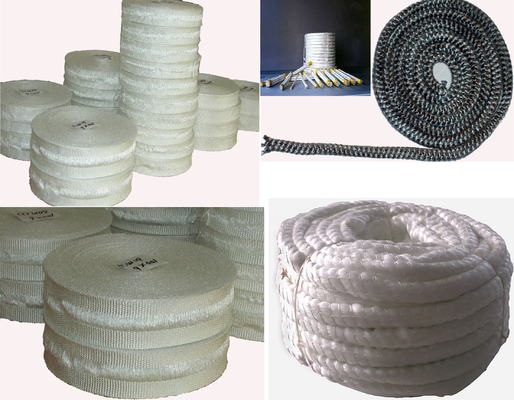

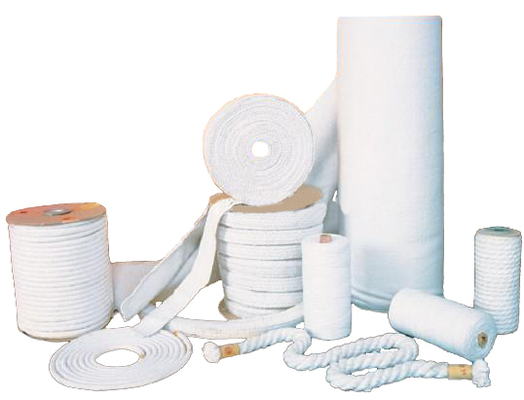

We offer a range of Fiberglass Rope and tapes which insulate and seal against heat.

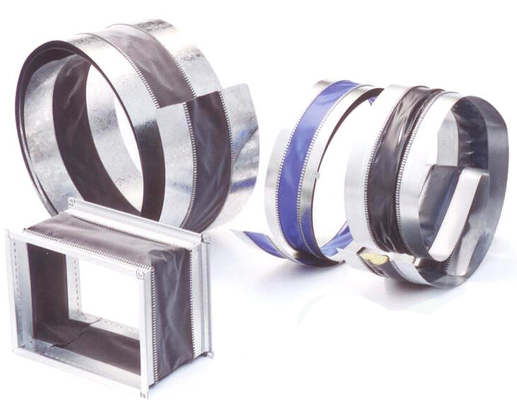

The ropes are used for gasketing ,oven door seals, or as drawstrings for industrial removable insulation jackets, also for high-temperature industrial packing or expansion joints components..

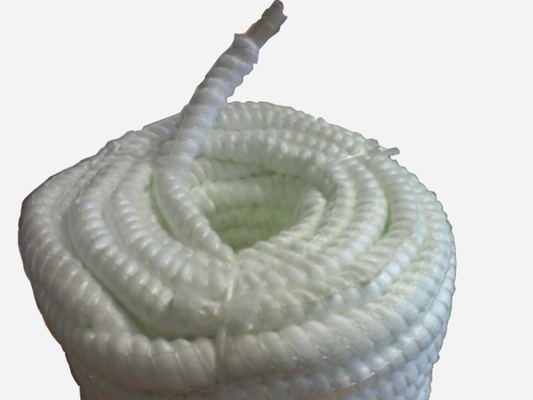

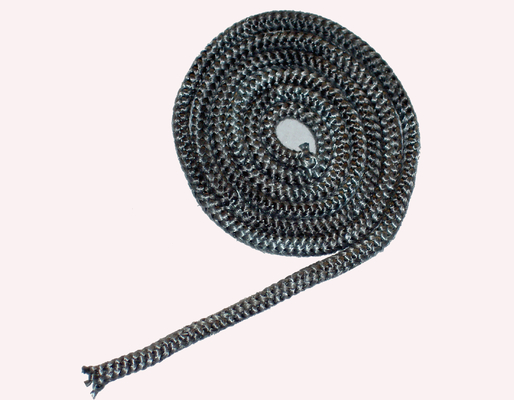

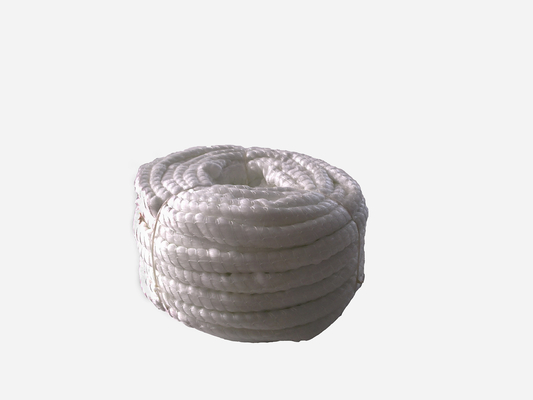

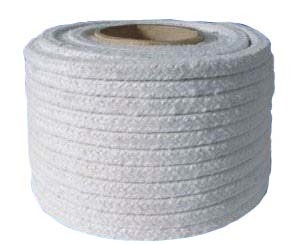

The construction of rope: high-quality Type E Fiberglass yarns, knitted into both soft and dense rope forms. This type of fiberglass rope is non-combustible and suitable for use in continuous temperatures to 1000°F (540°C).
Applications Recommended:

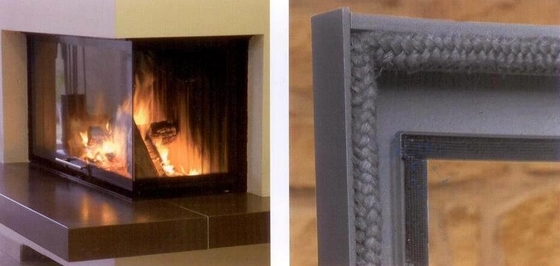

· Oven/Stove Door Thermal Seal
· OEM Equipment Thermal Door/Enclosure Seal

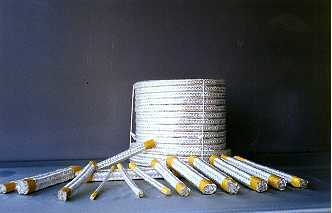

· High-temperature Industrial Packing
Technical Parameters:

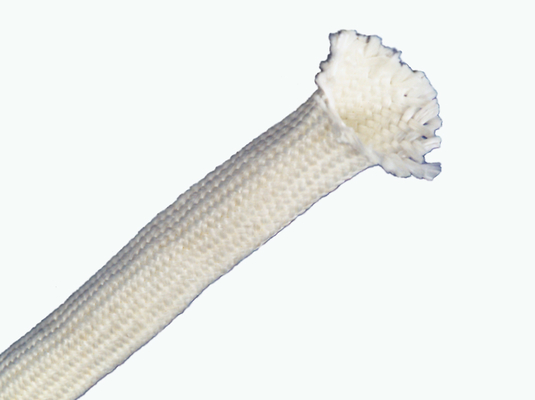

| Description: | Texturized fiberglass Braided Round Rope | |||||||||||
| Content: | 100% glass fiber | |||||||||||
| Diameter of yarn: | 9 um | |||||||||||
| Diameter of rope | 25mm | |||||||||||
| Density | 7g/m ±20g | |||||||||||
| Thermal Conductivity | 0.035(w/(m.k) | |||||||||||
| Temp resistance: | No more than 550 0C | |||||||||||
| Freeze temp: | -50 0C | |||||||||||
| Loss on Ignition | ≦3.52% | |||||||||||
| Chemical composition | ||||||||||||
| SiO2 | Al2O3 | CaO | MgO | R2O | Fe2O3 | |||||||
|
|
|
|
|
|
|
|||||||
The related series for heat insulation and sealing purpose:
| Style No. | Density | Dia. | Length |
| (g/m) | (mm) | (m) | |
| PLG 12 | 38 | 12 | 30 |
| PLG 15 | 58 | 15 | 30 |
| PLG 20 | 62 | 20 | 30 |
| PLG 30 | 79 | 30 | 30 |
| PLG 40 | 135 | 40 | 30 |
