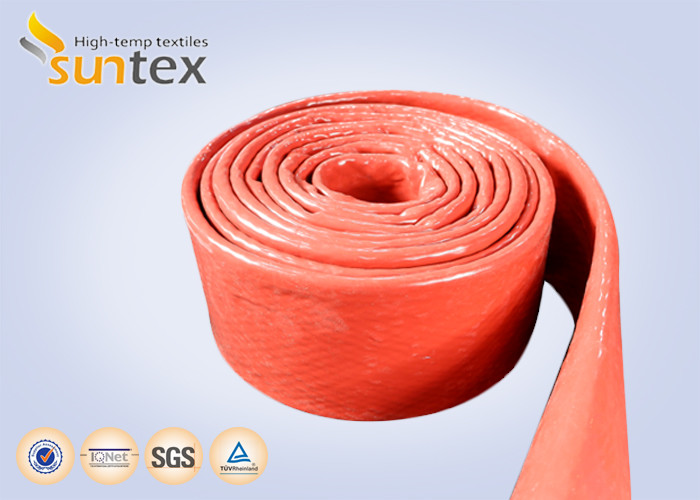

550C Heat Resistant Silicone Fiberglass Sleeve Insulation Cable Pipe Protection

550C Heat Resistant Silicone Fiberglass Sleeve Insulation Cable Pipe Protection
550C Heat Resistant Silicone Fiberglass Sleeve Insulation Cable Pipe Protection 550C Heat Resistant Silicone Fiberglass Sleeve Insulation Cable Pipe Protection 550C Heat Resistant Silicone Fiberglass Sleeve Insulation Cable Pipe Protection

Large Image :  550C Heat Resistant Silicone Fiberglass Sleeve Insulation Cable Pipe Protection

Product Details:
Place of Origin: China
Brand Name: SUNTEX
Model Number: FGS 40
Payment & Shipping Terms:
Minimum Order Quantity: 100 mtrs
Packaging Details: rolls packed in boxes, than loaded on container
Delivery Time: 7-10 days; depends on the deliver volume
Payment Terms: T/T, L/C, D/P
Supply Ability: 20000 m/Month
Detailed Product Description
Dia.: 40mm Temp. Resistance: 250 C
Base: 100% E-glass Roll Length: 20m
Applications: Pipe Protection Flammability: Fire Resistant
High Light:

fiberglass rope seal

,

silicone coated fiberglass sleeving

550C Heat Resistant Silicone Fiberglass Sleeve Insulation Cable Pipe Protection



Brief Introduction:



This type of sleeve is made from high-quality 9um diameter E fiberglass textile,with a silicone rubber coating. With the exellent performance on high temperature resistance,they are used a lot as pipe, hose, and cable protection sleeve providing an excellent thermal barrier.



It's non-combustible ,resists most chemical solvents.Silicone fiberglass sleeve is an ideal material in heavy duty applications that require outstanding mechanical and electrical properties,it has good abrasion resistance.



The mechanical properties and high dielectric strength of sleeve make it the first choice in applications such as transformer lead protection, motor coil leads, component isolation, and power supply wiring.



Size range from 0.4''(10mm) to 4''(100mm) available.



It can be used in these applications :

  • Wiring, Hose and Cable Heat & Flame Protection
  • Insulation/Heat Containment

Technical Parameters:



Description: Texturized fiberglass sleeve with silicone coating
Components: E-glass fiber ,Red silicone rubber
Dia of yarn: 9 um
Diameter of Sleeve : 40mm
Thermal Conductivity 0.035(w/(m.k)
Working Temp : Under 550 0C
Frozen temp: -50 0C
Loss on Ignition ≦3.52%



The related types:



# Dia(mm) Internal Dia.(mm) Length(m) Thickness(mm)
Silicone Glass Yarn
1 Φ10 10.5 20 0.8 1.0
2 Φ15 15.5 20 0.9 1.2
3 Φ20 20.5 20 0.9 1.4
4 Φ25 25.5 20 1 1.6
5 Φ30 30.5 20 1.1 1.8
6 Φ35 35.5 20 1.1 2.0
7 Φ45 45.5 20 1.2 2.2
8 Φ50 51.0 20 1.2 2.3
9 Φ55 56.0 20 1.3 2.4
10 Φ60 61.0 20 1.3 2.5



550C Heat Resistant Silicone Fiberglass Sleeve Insulation Cable Pipe Protection 0



550C Heat Resistant Silicone Fiberglass Sleeve Insulation Cable Pipe Protection 1

550C Heat Resistant Silicone Fiberglass Sleeve Insulation Cable Pipe Protection 2

550C Heat Resistant Silicone Fiberglass Sleeve Insulation Cable Pipe Protection 3






-_12

-_14

-_16

-_15
