Quality High-Reflective Aluminum Foil Fiberglass Cloth – For Flexible Connector Duct factory

High-Reflective Aluminum Foil Fiberglass Cloth – For Flexible Connector Duct

Name: High-Reflective Aluminum Foil Fiberglass Cloth – For Flexible Connector Duct
Brand: Suntex Composite Industrial Co.,Ltd.
SKU: GF430C-AL114-6002
Price: 3.00 USD
Availability: InStock

Place of Origin:Jiangsu, China

Brand Name:Suntex

Model Number:GF430C-AL114-6002

Minimum Order Quantity:1000 Square Meter/Square Meters

Price:US$1 - US$5 / Square Meter

Payment Terms:L/C, D/P, T/T

Supply Ability:300000 Meter/Month

Product Details

Highlight:

aluminized fiberglass fabric

,

aluminum coated fiberglass

Thickness: 0.4 Mm

Weight: 470g/㎡

Coating: Aluminum Foil

Good Features: Insulation, Good Heat Reflection, Abrasion Proof

Width: 1m, 1.2m, 1.5m, 1.8m, 80~200cm, Or Customized

Application 1: Insulation Cover, Heat Protection Cushions, Motor Vehicle Industry

Application 2: Welding Blanket, Fire Blanket, Heat-resistant Mat

Product Description

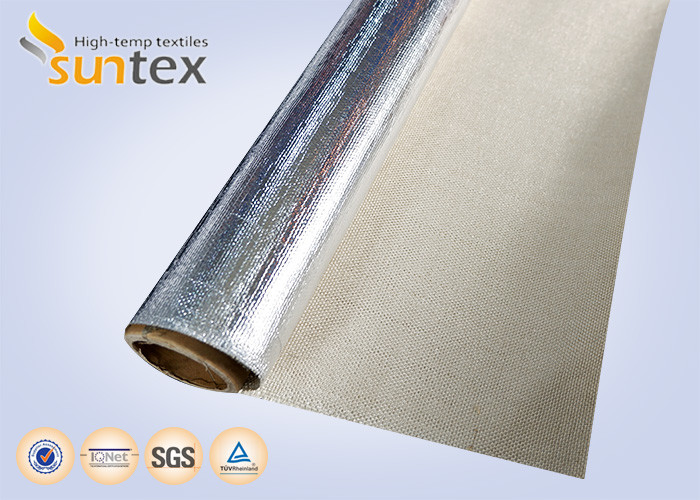

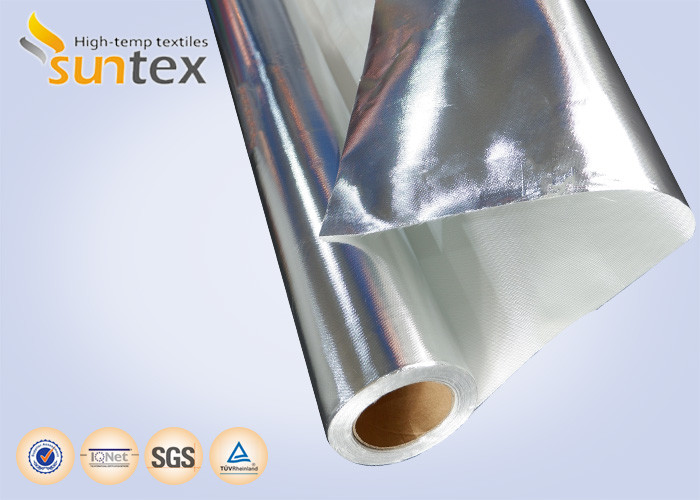

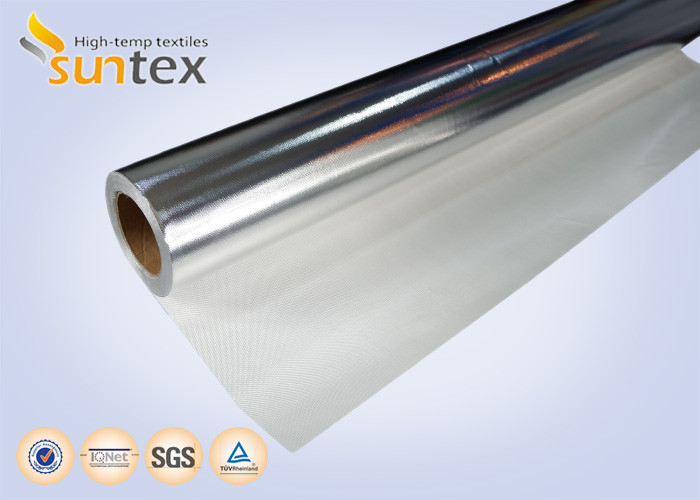

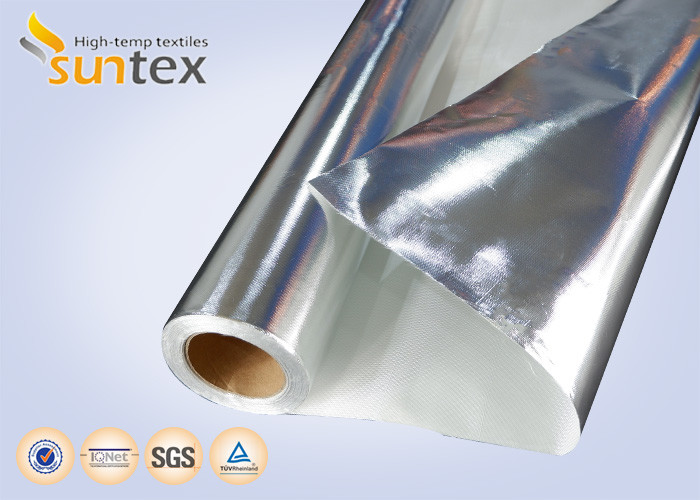

Reflective Aluminum Foil Fiberglass Fabric For Flexible Connector Duct

Product Description

Aluminum foil/film laminated fiberglass fabrics

The combination of laminating an aluminum metallic/film heat shield to a layer of protective fiberglass insulation, using fiberglass as the base cloth and special fire-resistant adhesive agent, it can protect personnel or equipment by reflecting radiant heat. Our aluminum foil coated fiberglass cloth has many excellent properties such as the smooth surface on the aluminum foil, non-water permeability, good hermetic and weather resistance, strong light reflection, good stretching resistance in length and breadth, non-breath ability.

-One side or both sides aluminum foil/film laminated available.

-The thickness of aluminum foils available from 0.0007mm to 3mm

-Width of fabrics available from 1000mm to 3000mm.

BASE FABRIC	Base fabric style No. GF430
	(Metric)	(English)	Test methods
Weave	4H Satin	Crowfoot
Yarn
Warp	EC9 33 1*4	ECG 150 1/4
Weft	EC9 33 1*4	ECG 150 1/4
Construction
Warp	18 ends /cm	48 ± 3 ends/inch
Weft	12.6 picks /cm	32 ± 3 picks/inch
Weight	430 ± 20 g/m²	12.6 ± 0.58 oz/yd²	ASTM D3776-96
Thickness	0.37 ± 0.02 mm	0.0145 ± 0.0008 inch	ASTM D1777-96

COATED FABRIC	Coating style No. AL114-6002
Coating	Aluminum foil (14 microns) laminated ,one side
Weight	460 ± 20 g/m²	13.5 ± 0.59 oz/yd²	ASTM D3776-96
Thickness	0.40 ± 0.03 mm	0.04 ± 0.0012 inch	ASTM D1777-96
Color	Silver
Flame resistance	Non-combustible
Temp resistance	Glass fabric up to 550⁰C (1000⁰F) Aluminum foil up to 150⁰C (300⁰F)

Product Application

Exhibition & Example
