0.4mm Fiberglass Woven Fabric E Glass Yarn M0 Fire Blanket Materia

  • 0.4mm Fiberglass Woven Fabric E Glass Yarn M0 Fire Blanket Materia
  • 0.4mm Fiberglass Woven Fabric E Glass Yarn M0 Fire Blanket Materia
  • 0.4mm Fiberglass Woven Fabric E Glass Yarn M0 Fire Blanket Materia
Place of Origin China
Brand Name SUNTEX
Model Number GF430P
Minimum Order Quantity 20 rolls
Packaging Details Each roll in carton, several cartons in a pallet
Delivery Time 5-20 days
Payment Terms T/T; L/C, Paypal...
Supply Ability 500000sqm/month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Fire Blanket Weight 430g/sq.mtr
Working Temperature 550 C Property Fire Resistant
Color Off-white Yarn E-glass
Highlight

fiberglass woven fabric

,

7628 fiberglass cloth
Leave a Message
Product Description

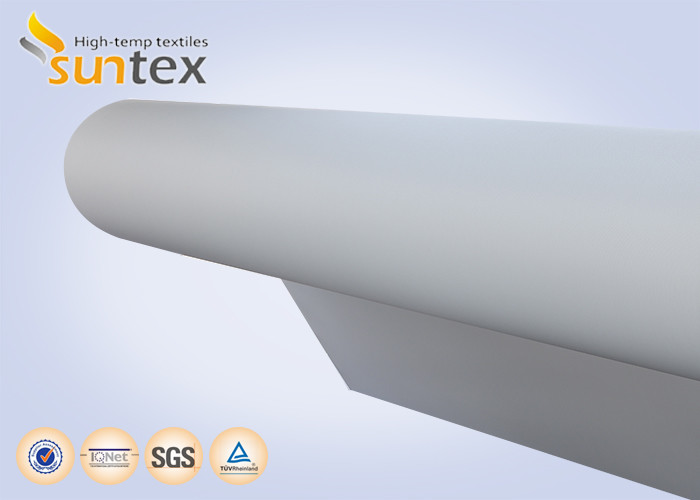

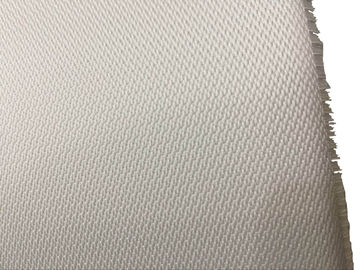

0.4mm Fiberglass Fabric Fireproof Woven Fiberglass Cloth M0 Fire Blanket Material



GF430P is a medium weight woven fiberglass fabric. It’s a premium grade loomstate glass fabric.



USA reference No. 3732.



GF430P is designed for the manufacturer of thermal insulation covers,fire curtain/blankets ,padding and other fire control system.



GF430P is also suitable for coating with difference elastomers and polymers.



Technical Data:



PROPERTY DATA
  (Metric) (English) Test methods
Weave 4H Satin Crowfoot
Yarn
Warp EC9 68 1﹡2 ECG 75 1/2
Weft EC9 68 1﹡2 ECG 75 1/2
Construction
Warp 18 ± 1 ends/cm 48 ± 3 ends/inch ASTM D 3775-96
Weft 12.6 ± 1 picks/cm 32 ± 3 picks/inch ASTM D 3775-96
Weight 430 ± 20 g/m2 12.6 ± 0.58 oz/yd2 ASTM D3776-96
Thickness 0.37 ± 0.02 mm 0.0145 ± 0.0008 inch ASTM D1777-96
Standard width 101.6 ± 1 cm 40 ± 0.39 inch ASTM D3776-96
155 ± 1 cm 61 ± 0.39 inch
Tensile strength
Warp 4816 N/5 cm 550 lbf/inch ASTM D5034-95
Weft 3503 N/5 cm 400 lbf/inch ASTM D5034-95
Temp resistance 5500C 10000F


Advantages:



1.Good fire resistant.M0 classification.

2.Flexible,soft, easy to be fabricated

5.Bears temperature 550C degree.



Main applications:



1. Fire blankets.

2. Heat protection.

3. Base materials for coating.
