26oz Bulk E Glass Lagging Woven Fiberglass Cloth For Welding Sparks Insulation Fire Blanket

26oz Bulk E Glass Lagging Woven Fiberglass Cloth For Welding Sparks Insulation Fire Blanket
26oz Bulk E Glass Lagging Woven Fiberglass Cloth For Welding Sparks Insulation Fire Blanket
video play

Large Image :  26oz Bulk E Glass Lagging Woven Fiberglass Cloth For Welding Sparks Insulation Fire Blanket

Product Details:
Place of Origin: China
Brand Name: SUNTEX
Model Number: TGF880-HT
Payment & Shipping Terms:
Minimum Order Quantity: 20 rolls
Packaging Details: Each roll in carton, several cartons in a pallet
Delivery Time: 5-20 days
Payment Terms: T/T; L/C, Paypal...
Supply Ability: 500000sqm/month
Detailed Product Description
Application: Welding Sparks Insulation Weight: 880g/sq.mtr
Working Temperature: 550 C Color: Tan
Yarn: Bulk Treatment: Caramelized
High Light:

7628 fiberglass cloth

,

glass fiber woven fabric

26oz Bulk E Glass Lagging Woven Fiberglass Cloth Welding Sparks Insulation Fire Blanket

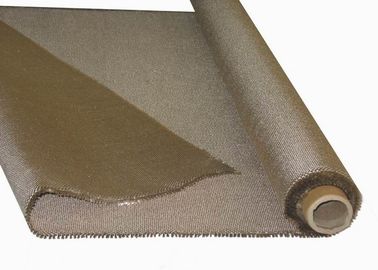

TGF880-HT is a woven texturized fiberglass fabric with heat clean treatment which reduces the airborne fibers. It’s made with 9 micron glass yarn to provide economic yet highly effective thermal and acoustic insulation.



This fabric support temperatures to 5500C. Applications for this fabric includes lagging, padding, removable jacket, thermal insulation covers, flexible expansion joints,stress relief, welding blanket and other fire control system.



Technical Data:



PROPERTY DATA
  (Metric) (English) Test methods
Weave 4 Harness Satin Crowfoot
Treatment Caramelized Heat clean
Yarn
Warp ET9 480 tex ETG 8.6
Weft ET9 480 tex ETG 8.6
Construction
Warp 10 ± 0.6 ends/cm 25 ± 2 ends/inch ASTM D 3775-96
Weft 8 ± 0.5 picks/cm 20 ± 1 picks/inch ASTM D 3775-96
Weight 880 ± 40 g/m2 26 ± 1.2 oz/yd2 ASTM D3776-96
Thickness 1.0 ± 0.1 mm 0.039 ± 0.005 inch ASTM D1777-96
Standard width 101.6 ± 1 cm 40 ± 0.39 inch ASTM D3776-96
152.4 ± 1 cm 60 ± 0.39 inch
182.9 ± 1 cm 72 ± 0.39 inch
Tensile strength
Warp 3407 N/5 cm 389 lbf/inch ASTM D5034-95
Weft 2041 N/5 cm 223 lbf/inch ASTM D5034-95
Temp resistance 5500C 11000F



Advantages:



1. Good fire resistant.M0 classification.

2. Flexible,soft, easy to be fabricated

3. Good tansile strength.

4. Bears temperature 550C degree,800C for short time



Main applications:



1. Welding protection

2. Removable pads

3. Fabric expansion joints

4. Acoustic insulation



Guarantee:



All Suntex’s customers are covered by below warranty:

  • Suntex usually keeps sufficient stocks for the standard items. It assures us to deliver the goods to the customers worldwide in time. In case of the quality problem of delivered products, suntex will send out a new batch to replace without delaying.
  •  In case of the quality of delivery was proved unsatisfied by our customer, suntex will send out a new batch to replace without delaying.
  • Suntex cares the human health and environmental protection. All materials used in the process of our production are harmless to the human and environment.

26oz Bulk E Glass Lagging Woven Fiberglass Cloth For Welding Sparks Insulation Fire Blanket 026oz Bulk E Glass Lagging Woven Fiberglass Cloth For Welding Sparks Insulation Fire Blanket 126oz Bulk E Glass Lagging Woven Fiberglass Cloth For Welding Sparks Insulation Fire Blanket 226oz Bulk E Glass Lagging Woven Fiberglass Cloth For Welding Sparks Insulation Fire Blanket 326oz Bulk E Glass Lagging Woven Fiberglass Cloth For Welding Sparks Insulation Fire Blanket 426oz Bulk E Glass Lagging Woven Fiberglass Cloth For Welding Sparks Insulation Fire Blanket 5
