Product Details:
Payment & Shipping Terms:
|
| Weave Type: | Twill Woven,plain Woven Or Customized | Alkali Content: | Alkali Free |
|---|---|---|---|
| Surface Treatment: | Polyurethane(PU) Coated | Material: | Fiberglass |
| Coating: | Two Side Polyurethane(PU) Coated | Thickness: | 0.41mm |
| Weight: | 460g/m2 | Width: | 1000mm,1520mm,1550mm,2000mm Or Customized |
| Standing Temperature: | -70 To +180 Degree C | Good Feature: | High Stability, High-temp,nonstick |
| Application: | Fire Blanket/curtain, Welding Blanket/curtain, Smoke Curtain | Color: | Grey And Customed Colors |
| High Light: | fiberglass fabric roll,high temp fabric |
||
Public Area And Home Safety Emergency Universal Sizes Welding Fiberglass Fire Blanket

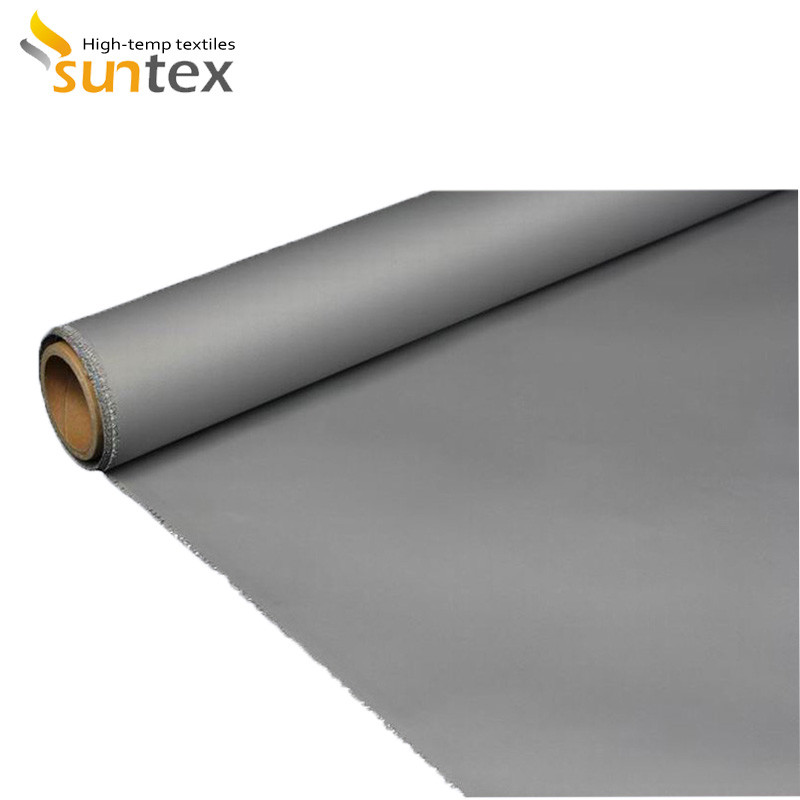

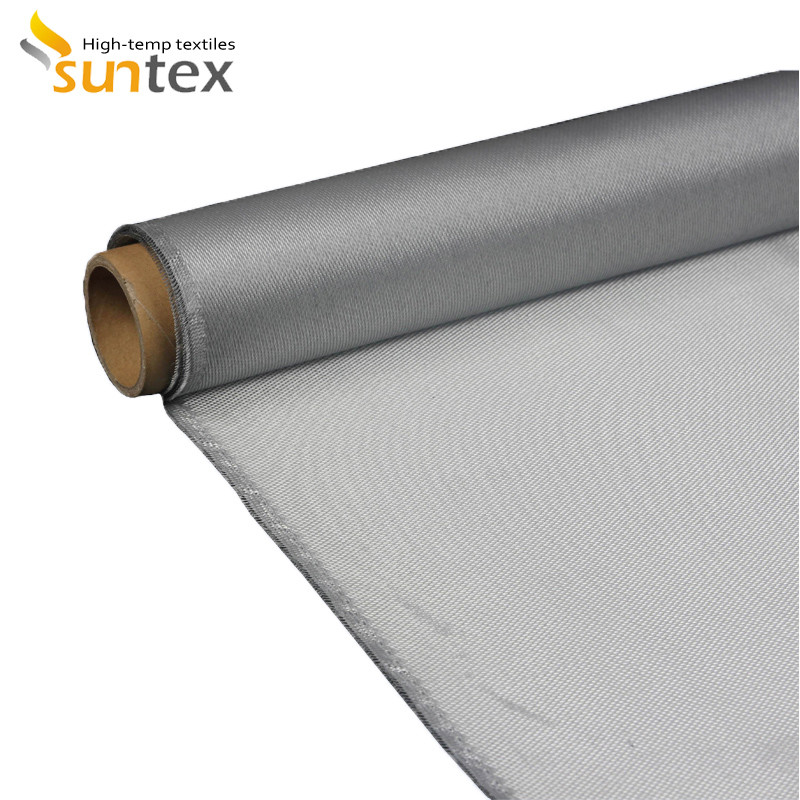

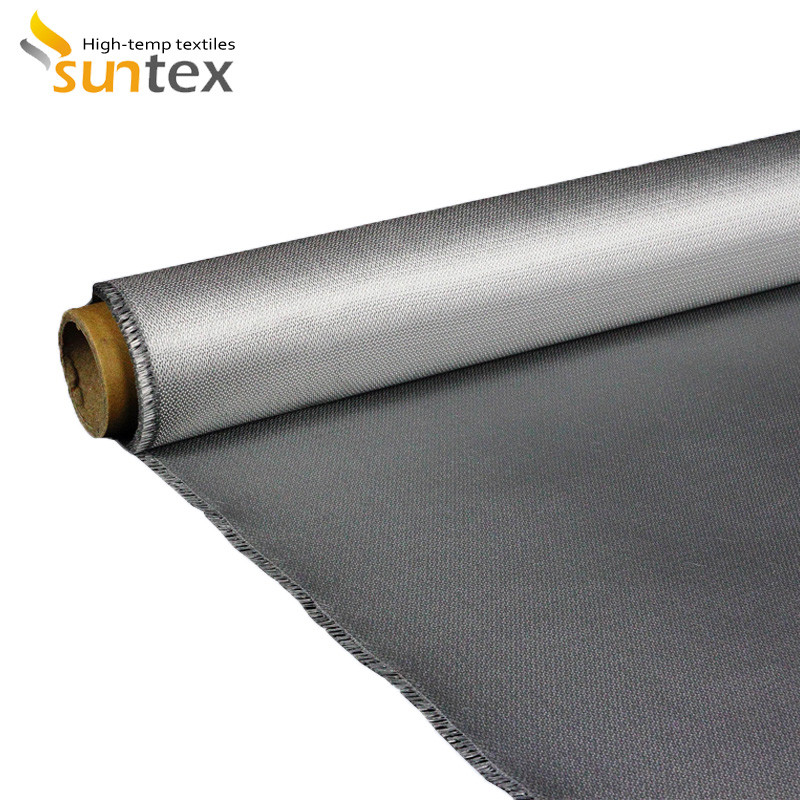

Suntex insulation fireproof non-stick fiberglass cloth polyurethane(PU) coated fabric is made up of woven fiberglass fabric with a waterproof polyurethane coating or laminate. The polyurethane coating is applied to two sides of the base fabric, this makes the fabric water-resistant, lightweight and flexible. Its applications include camping tents, clothing, bags, light-duty covers, fire/welding blanket, fire curtain, smoke screen, fabric ductwork connector, thermal insulation covers, flexible expansion joints, and so on.
| BASE FABRIC | Base fabric style No. GF430P | ||
| (Metric) | (English) | Test methods | |
| Weave | 4H Satin | Crowfoot | |
| Yarn | |||
| Warp | EC9 68 1﹡2 | ECG 75 1/2 | |
| Weft | EC9 68 1﹡2 | ECG 75 1/2 | |
| Construction | |||
| Warp | 18 ± 1 ends/cm | 48 ± 3 ends/inch | ASTM D 3775-96 |
| Weft | 12.6 ± 1 picks/cm | 32 ± 3 picks/inch | ASTM D 3775-96 |
| Weight | 430 ± 30 g/m2 | 12.6 ± 0.9 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.37 ± 0.06 mm | 0.015 ± 0.002 inch | ASTM D1777-96 |
| COATED FABRIC | Coating style No. PU213-2005 | ||
| Coating | Fire resistance, high performance, polyurethane on both sides | ||
| Weight | 460 ± 20 g/m2 | 13.5 ± 0.59 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.41 ± 0.03 mm | 0.016 ± 0.0012 inch | ASTM D1777-96 |
| Color | Grey | ||
| Fire resistance | M0 approvals | NFP92503 | |
| Temp resistance |
Glass fabric up to 5500C (10000F) Polyurethane coating up to 1800C (3560F) |
||
Applications:
- fire Doors/curtains/blankets;
- smoke Curtains
- fire/welding Blankets;
- fabric Air Distribution Ducts;
- fabric Ductwork Connector;
- removable Insulation Cover;
- waterproof In The Roof
