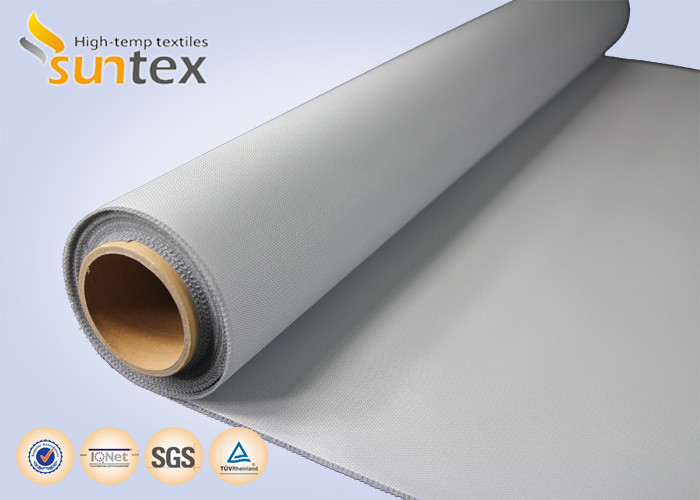

Fireproof Polyurethane PU Coated Fiberglass Fabric Fire Resistant Thermal Insulation

Fireproof Polyurethane PU Coated Fiberglass Fabric Fire Resistant Thermal Insulation
Fireproof Polyurethane PU Coated Fiberglass Fabric Fire Resistant Thermal Insulation
video play

Large Image :  Fireproof Polyurethane PU Coated Fiberglass Fabric Fire Resistant Thermal Insulation

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Suntex
Model Number: GF430P-PU21L-2062
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiation
Packaging Details: Fabric rolls packed in cartons loaded on pallets or according to customers' requirements.
Delivery Time: 5-20 days
Payment Terms: L/C, D/P, T/T
Supply Ability: 300000 Meter/Meters per Month
Detailed Product Description
Yarn Type: E-Glass Weave Type: Satin Woven Or Customized
Alkali Content: Alkali Free Width: 1m To 2m Or Customized
Weight: 460g/sqm Thickness: 0.43mm
Base Material: 100% Fiberglass Good Features: Fireproof, Resistance To Abrasion, Cold, Water, Oil
Standing Temperature: -70°C To +250°C Color: Bule,grey Or Customized
Coating: Two Sides Polyurethane(PU) Coating Type: Fireproof And Heat Resistant Fabrics
Application 1: Fabric Ductwork Connector,Thermal Insulation Covers, Flexible Expansion Joints Application 2: Removable Insulation Blankets, Welding Curtains, Fire Clothing
High Light:

fire retardant cloth

,

fireproof fiberglass cloth

Fireproof Polyurethane(PU) Glass Fiber Cloth Fire Resistant Thermal Insulation Fiberglass Fabric



    Polyurethane (PU) Coated Fiberglass Fabric is produced by a means of woven fiberglass which is high-quality E-glass filament yarns, and then coated with tow sides polyurethane (PU) coating, finally colored. It has excellent softness, allergen resistance, good abrasion and chemical resistance, oils and weather resistance, and waterproof. It can withstand temperature up to 250℃. It also can be used for mold proofing, heat-insulation.





Main applications:

    fabric ductwork connector, fabric expansion joints, removable insulation covers/pads/jackets/mattress, smoke screens, welding blanket/curtain, fire blanket/curtain, other fire control systems.



BASE FABRIC Base fabric style No. GF430P
  (Metric) (English) Test methods
Weave 4H Satin Crowfoot
Yarn
Warp EC9 136 1﹡0 ECG 37 1/0
Weft EC9 136 1﹡0 ECG 37 1/0
Construction
Warp 18 ± 1 ends/cm 48 ± 3 ends/inch ASTM D 3775-96
Weft 12.6 ± 1 picks/cm 32 ± 3 picks/inch ASTM D 3775-96
Weight 430 ± 30 g/m2 12.6 ± 0.9 oz/yd2 ASTM D3776-96
Thickness 0.37 ± 0.06 mm 0.015 ± 0.002 inch ASTM D1777-96



COATED FABRIC Coating style No. PU21L-2062
Coating Fire retardant, high performance, Grey/Blue polyurethane on both sides
Weight 460 ± 20 g/m2 13.5 ± 0.59 oz/yd2 ASTM D3776-96
Thickness 0.43 ± 0.03 mm 0.017 ± 0.0012 inch ASTM D1777-96
Color Grey/Blue
Fire resistance M0 approvals NF 92507
Temp resistance

Glass fabric up to 5500C (10220F)

Polyurethane coating up to 1800C (3560F)
