Product Details
Highlight:
fiberglass fabric roll
,high temp fabric
Yarn Type:
C-Glass
Weave Type:
Satin Woven Or Customized
Alkali Content:
Middle
Width:
1m To 2m Or Customized
Weight:
470g/sqm
Thickness:
0.43mm
Base Material:
100% Fiberglass
Good Features:
Non-stick, Heat Resistant, Fireproof, Resistance To Water, Abrasion
Standing Temperature:
-70°C To +250°C
Color:
Grey Or Customized
Coating:
Two Sides Polyurethane(PU) Coating
Type:
Insulation Fireproof Non-stick Fiberglass Cloth
Application 1:
Fire Blanket, Automobile Fire Blanket, Welding Blanket
Application 2:
Fire Curtain, Smoke Screen, Welding Curtain
Product Description

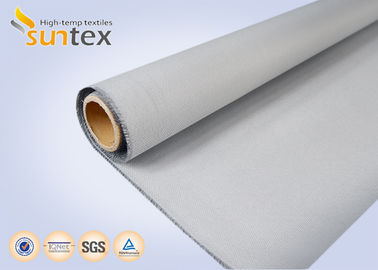

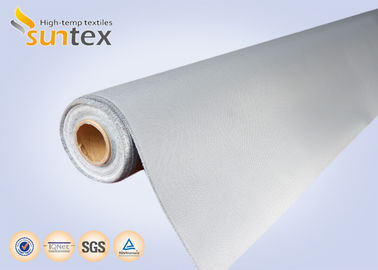

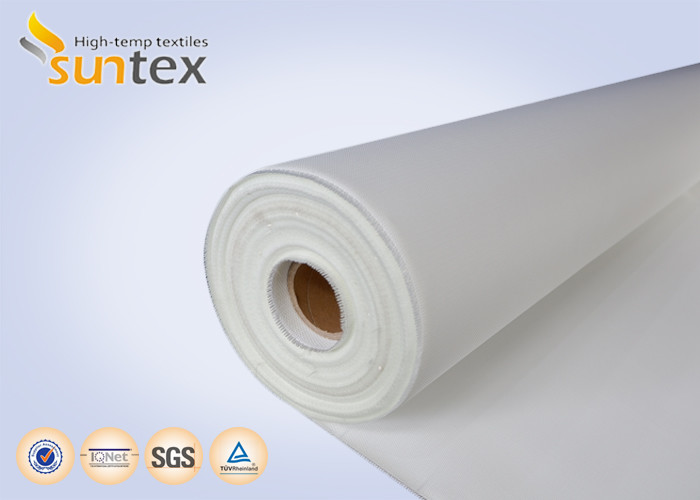

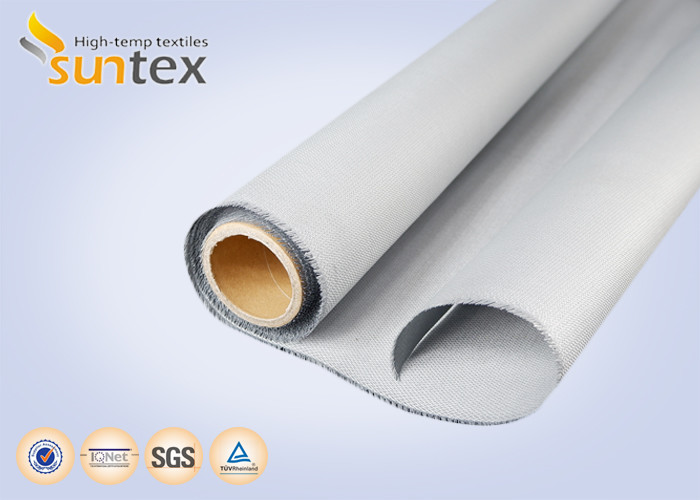

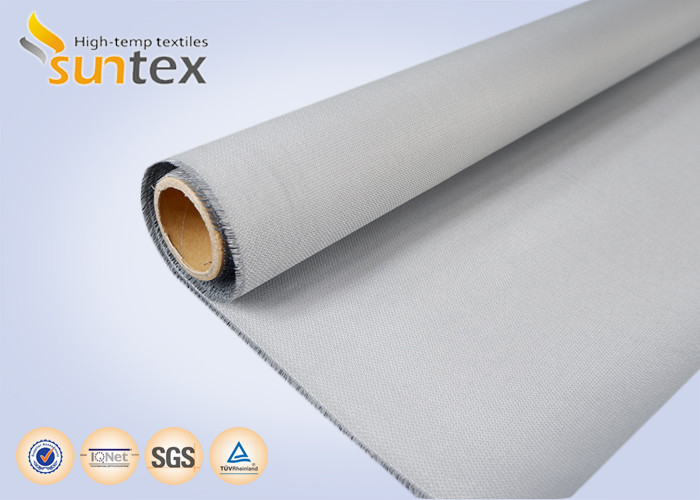

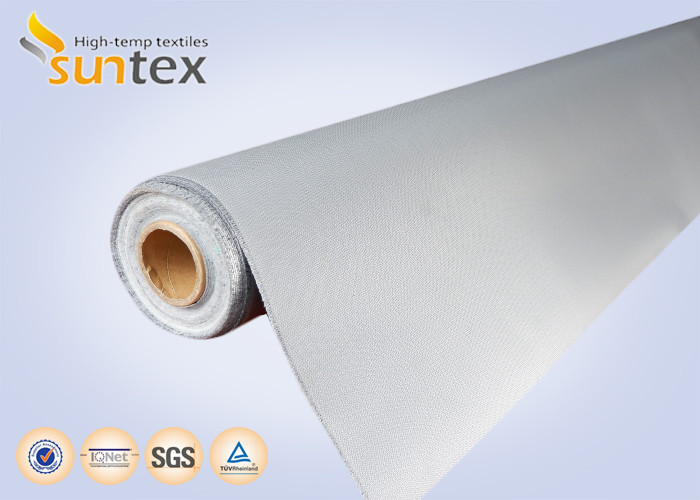

0.4mm High Durability Fireproof Thermal Insulation Soft Polyurethane(PU) Coated Fabric Cloth
Main applications:
fire/welding blanket, fire curtain, smoke screen, fabric ductwork connector, thermal insulation covers, flexible expansion joints, other fire control systems.
| BASE FABRIC | Base fabric style No. GF430C | ||
| (Metric) | (English) | Test methods | |
| Weave | 4H Satin | Crowfoot | |
| Yarn | |||
| Warp | CC9 68 1﹡2 | CCG 75 1/2 | |
| Weft | CC9 68 1﹡2 | CCG 75 1/2 | |
| Construction | |||
| Warp | 18 ± 1 ends/cm | 48 ± 3 ends/inch | ASTM D 3775-96 |
| Weft | 12.6 ± 1 picks/cm | 32 ± 3 picks/inch | ASTM D 3775-96 |
| Weight | 430 ± 30 g/m2 | 12.6 ± 0.9 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.37 ± 0.06 mm | 0.015 ± 0.002 inch | ASTM D1777-96 |
| COATED FABRIC | Coating style No. PU213-2031 | ||
| Coating | Fire retardant, high performance, polyurethane on both sides | ||
| Weight | 470 ± 20 g/m2 | 13.8 ± 0.59 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.43± 0.03 mm | 0.017 ± 0.0012 inch | ASTM D1777-96 |
| Color | Silver grey | ||
| Fire resistance | M0 approval | NF 92507 | |
| Temp resistance |
Glass fabric up to 5500C (9500F) Polyurethane coating up to 1800C (3560F) |
||
