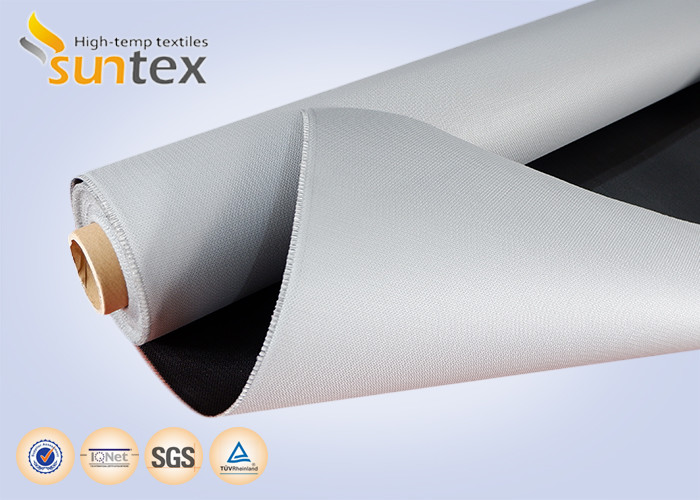

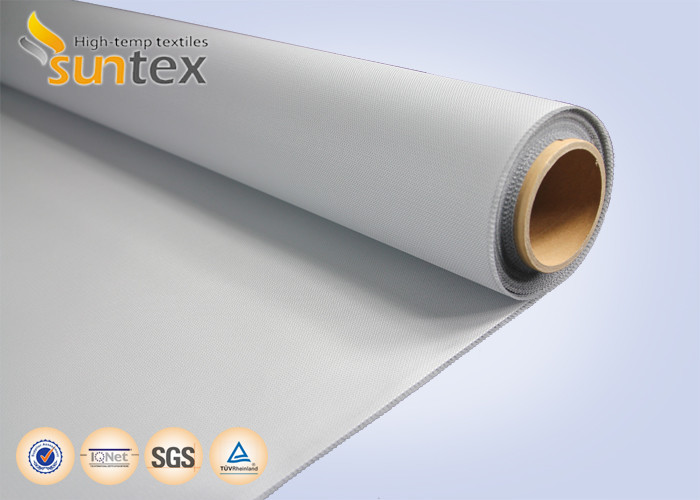

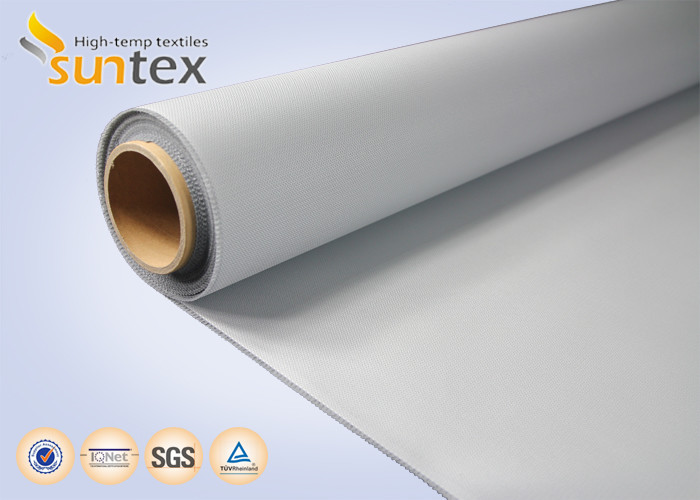

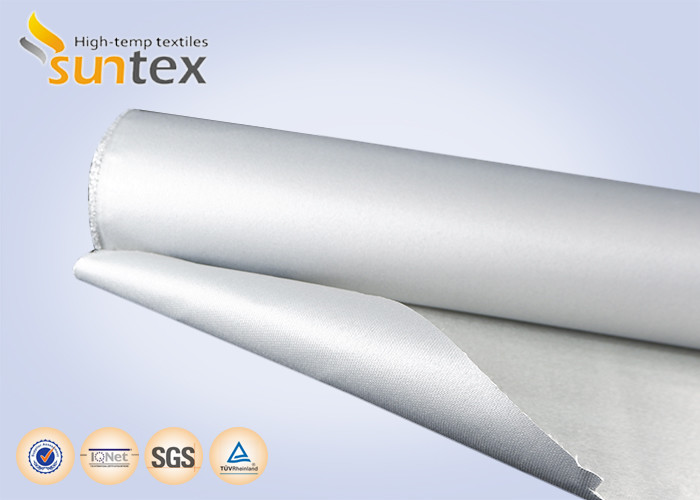

Fireproof Polyurethane (PU) Coated Fiberglass Cloth Heat Protection Thermal Insulation
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | Suntex |
| Model Number | GF660C-PU11P-2066 |
| Minimum Order Quantity | Negotiable |
| Price | Negotiable |
| Packaging Details | Fabric rolls packed in cartons loaded on pallets or according to customers' requirements. |
| Delivery Time | 5-20 days |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 300000 Meter/Meters per Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Yarn Type | C-Glass | Weave Type | Satin Woven Or Customized |
|---|---|---|---|
| Alkali Content | Middle | Width | 1m To 2m Or Customized |
| Weight | 690g/sqm | Thickness | 0.6mm |
| Base Material | 100% Fiberglass | Good Features | Heat Resistant, High Resistance To Water, Weather |
| Standing Temperature | -70°C To +250°C | Color | Siliver Or Customized |
| Coating | One Side Polyurethane(PU) Coating | Type | Thermal Insulation Fireproof Glass Fiber Cloth |
| Application 1 | Fire Blanket, Automobile Fire Blanket, Welding Blanket | Application 2 | Fire Curtain, Smoke Screen, Welding Curtain |
| High Light | fiberglass fabric roll,high temp fabric |
||
Product Description
Heat Protection Thermal Insulation Fireproof Polyurethane(PU) Coated Fiberglass Cloth
Suntex insulation fireproof non-stick fiberglass cloth polyurethane(PU) coated fabric is made up of woven fiberglass fabric with a waterproof polyurethane coating or laminate. The polyurethane coating is applied to two sides of the base fabric, this makes the fabric water-resistant, lightweight and flexible. Its applications include fire/welding blanket, fire curtain, smoke screen, fabric ductwork connector, thermal insulation covers, flexible expansion joints, and so on.
Main applications:
fire/welding blanket, fire curtain, smoke screen, fabric ductwork connector, thermal insulation covers, flexible expansion joints, other fire control systems.
| BASE FABRIC | Base fabric style No. GF660C | ||
| (Metric) | (English) | Test methods | |
| Weave | 4H Satin | Crowfoot | |
| Yarn | |||
| Warp | CC9 68 1﹡2 | CCG 75 1/2 | |
| Weft | CC9 68 1﹡2 | CCG 75 1/2 | |
| Construction | |||
| Warp | 18 ± 1 ends/cm | 48 ± 3 ends/inch | ASTM D 3775-96 |
| Weft | 12.6 ± 1 picks/cm | 32 ± 3 picks/inch | ASTM D 3775-96 |
| Weight | 430 ± 30 g/m2 | 12.6 ± 0.9 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.37 ± 0.06 mm | 0.015 ± 0.002 inch | ASTM D1777-96 |
| COATED FABRIC | Coating style No. PU11P-2066 | ||
| Coating | Fire retardant, high performance, polyurethane on both sides | ||
| Weight | 690 ± 20 g/m2 | 13.8 ± 0.59 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.60± 0.03 mm | 0.017 ± 0.0012 inch | ASTM D1777-96 |
| Color | Silver grey | ||
| Fire resistance | M0 approval | NF 92507 | |
| Temp resistance | Glass fabric up to 5500C (9500F) | ||
