Product Details
Highlight:
high temperature fabric cloth
,high temperature fabrics
Weight:
1200g/m2
Thickness:
1.3 Mm
Width:
From 100cm To 200cm
Color:
Yellow,white,grey
Temperature Resistance:
1700 C Degree
Weave Type:
Twill Woven
Yarn Type:
E-Glass
Alkali Content:
Alkali Free
Surface Treatment:
High Silica,vermiculite
Material:
High Silica,fiberglass,vermiculite
Good Features:
High Temperature Resistant, Chemical Resistant, Incredibly Durable
Application 1:
Welding And Molten Metal Splash Protection, Heat And Flame Shielding
Application 2:
Chemical Plants, Oil Refineries, Ports, And Industry Fields
Product Description

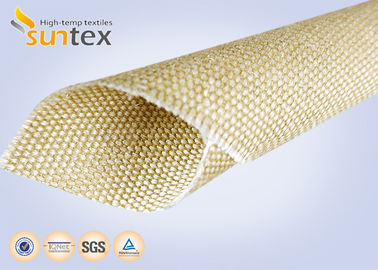

Highly Heat Resistant Fiberglass Cloth Incredibly Durable 1700C High Silica Glass Fiber
Product Description
High Silica fiberglass fabrics
High silica fiberglass fabric can be effectively used at steady-state temperatures in 1000 degrees to 1700 degrees without deterioration of the formation of cristobalite structure. The silica fabric has been specially developed to use in the applications to protect an extreme temperature environment. They also have excellent chemical resistance and electrical insulation properties.
| DESCRIPTION | |||
| SL 1200 is a heavy weight 96% content silica fabric. SL 1200 is excellent for very high-temperature resistance and fire resistance. The application is for insulation covers, padding, lagging, welding blanket, fire curtain, and other heavy-duty fire control system. SL 1200 is suitable for coating with different elastomers and polymers. | |||
| PROPERTY DATA | |||
| (Metric) | (English) | Test methods | |
| Weave | 12H Satin | 12H Satin | |
| Construction | |||
| Warp | 19 ± 1 ends/cm | 48 ± 3 ends/inch | ASTM D 3775-96 |
| Weft | 14 ± 1 picks/cm | 33 ± 3 picks/inch | ASTM D 3775-96 |
| Weight | 1200 ± 150 g/m2 | 36 ± 4.4 oz/yd2 | ASTM D3776-96 |
| Thickness | 1.5 ± 0.08 mm | 0.06 ± 0.003 inch | ASTM D1777-96 |
| Standard width | 92.0 ± 1 cm | 36 ± 0.39 inch | ASTM D3776-96 |
| 100.0± 1 cm | 39± 0.39 inch | ||
| Tensile strength | |||
| Warp | 800 N/25 mm | 92 lbf/inch | ASTM D5034-95 |
| Weft | 500 N/25 mm | 57 lbf/inch | ASTM D5034-95 |
|
Temp resistance Peak Temp. |
10000C 15000C |
18300F 27500F |
|
| style no. | weave |
weight g/m2 oz/yd |
thickness mm inch |
sio2 content
|
| SL600 | 8H Satin | 620 18 | 0.76 0.03 | 96% |
| SL1200 | 12H Satin | 1250 36 | 1.40 0.055 | 96% |
Product Application
