High Temperature Aluminum Foil Fiberglass Fabrics For Welding / Fire Protection And Thermal Insulation Materials

Place of Origin Jiangsu, China
Brand Name Suntex
Model Number TGF1250-AL118-6007
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Fabric rolls packed in cartons loaded on pallets or according to customers' requirements.
Delivery Time 5-20 days
Payment Terms L/C, D/P, T/T
Supply Ability 300000 Meter/Meters per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Yarn Type E-Glass Weave Type Twill Woven Or Customized
Alkali Content Alkali Free Width 100cm,127cm,130cm,or Customized
Weight 1250g/m2 Thickness 1.7mm
Base Material 100% Fiberglass Good Features High Temperature Resistant, Heat Isolation,anti-corrosion, Soundproof
Standing Temperature 180 Degree C Color Silver Or Customized
Coating One Side Aluminum Foil Type Fireproof Waterproof Insulation Fiberglass Fabric
Application 1 Heat Shields,fire Curtains,insulation Pads/ Jacket/cover/blanket Application 2 Chemical/shipbuilding Industry, Fire/welding Blanket, Pipe Protection
High Light

aluminized fiberglass cloth

,

aluminized fiberglass fabric

Leave a Message
Product Description

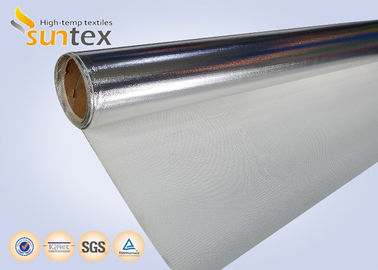

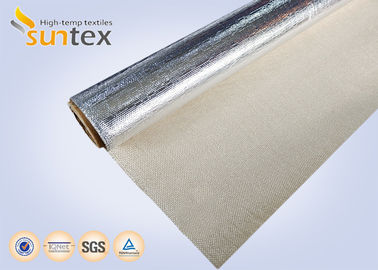

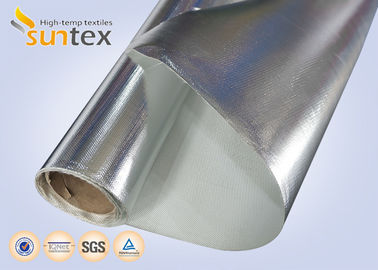

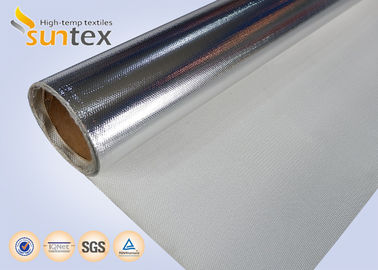

High Temperature Aluminum Foil Fiberglass Fabrics For Welding/fire Protection And Thermal Insulation Materials

Product Description



    The combination of laminating an aluminum metallic/film heat shield to a layer of protective fiberglass insulation protects personnel or equipment by reflecting radiant heat. Suntex uses the high-temperature adhesive to ensure the maximum working temperature up to 150C.

-One side or both sides aluminum foil/film laminated available.

-The thickness of aluminum foils available from 0.0007mm to 0.005 mm or customized.

-Width of fabrics available from 1000mm to 1520mm, or customized.



Main applications:

1.Heat-retardant curtains or screens, heat shields

2.Thermal insulation covers, mattress, jacket, blanket, and pads

3.Welding/fire protection

4.Chemical and shipbuilding industry, piping protection

5.Other fire and smoke control systems



BASE FABRIC Base fabric style No. TGF1250
  (Metric) (English) Test methods
Weave Plain Plain
Yarn
Warp ET9 1290 tex ETG 3.88
Weft ET9 1290 tex ETG 3.88
Construction
Warp 6 ± 0.5 ends/cm 15 ± 1 ends/inch
Weft 3.15 ± 0.3 picks/cm 8 ± 1 picks/inch
Weight 1190 ± 50 g/m2 35 ± 1.5 oz/yd2 ASTM D3776-96
Thickness 1.52 ± 0.05 mm 0.0598 ± 0.002 inch ASTM D1777-96

COATED FABRIC Coating style No. AL118-6007
Coating Aluminum foil (18 microns) laminated on one side.
Weight 1350 ± 80 g/m2 39.70 ± 2.35 oz/yd2 ASTM D3776-96
Thickness 1.55 ± 0.1 mm 0.061 ± 0.004 inch ASTM D1777-96
Color Silver
Flame resistance Non-combustible
Temp resistance

Glass fabric up to 5500C (10000F)

Aluminum foil up to 1800C (3500F)



TGF580HT-AL122-6005rl
