Product Details:
Payment & Shipping Terms:
|
| Alkali Content: | Alkali Free | Yarn Type: | E-Glass |
|---|---|---|---|
| Thickness: | 0.65mm | Weight: | 600g/m2 |
| Width: | From 1m To 2m Or Customized | Weave Type: | Twill Woven Or Plain Woven Or Customized |
| Coating: | Two Sides Vermiculite Coated | Color: | Brown/yellow |
| Base Material: | Silica Fiberglass Cloth | Standing Temperature: | Up To 1000 Degree C |
| Good Features: | High Temperature Resistance, Good Flame Retardant Ability | Properties: | Weatherproof, Water Repellent, Good Chemical Resistance |
| Application 1: | Welding And Molten Metal Splash Protection, Heat And Flame Shielding | Application 2: | Chemical Plants, Oil Refineries, Ports, And Industry Fields |
| High Light: | high temperature fabric cloth,high temperature fabrics |
||

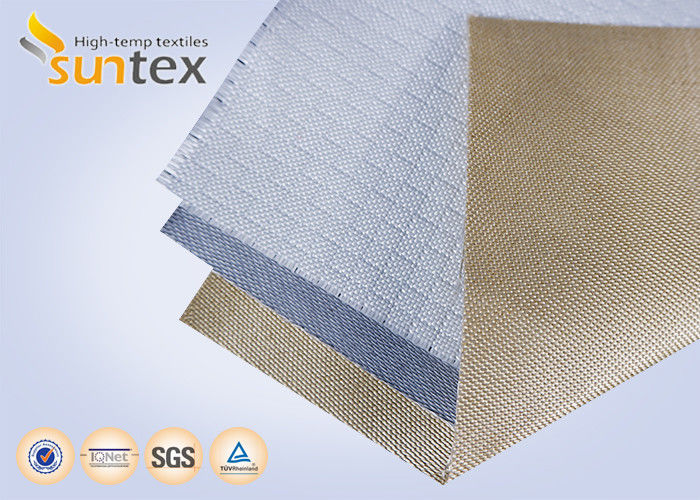

High Temperature Silica Fiberglass Cloth Fire Barrier Fire Blanket Material
SL 600 is a medium weight of 96% content silica fabric. SL 600 is excellent for very high temperature resistance and fire resistance.
The application is for insulation covers, padding, lagging, welding blanket, fire curtain, and other heavy duty fire control system.
SL 600 is suitable for coating with different elastomers and polymers.
Good features:
--Silicone dioxide content >96%
--Extremely high-temperature resistance up to 1000 C
--Good anti-abrasion, good chemical resistance, easy to be cut, sewn and fabricated
--Excellent chemical resistance
--Soft and pliable
--Excellent anti-abrasion property
-- Asbestos-free, halogen-free
| BASE FABRIC | Base fabric style No. SL600 | ||
| (Metric) | (English) | Test methods | |
| Weave | 8H Satin | 8H Satin | |
| Yarn | |||
| Warp | EC9 136 1*2 tex | ECG 37 1/2 | |
| Weft | EC9 136 1*2 tex | ECG 37 1/2 | |
| Construction | |||
| Warp | 19 ± 1 ends/cm | 48 ± 2 ends/inch | ASTM D 3775-96 |
| Weft | 14 ± 1 picks/cm | 36 ± 2 picks/inch | ASTM D 3775-96 |
| Weight | 600 ± 30 g/m2 | 17.6 ± 0.8 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.65 ± 0.08 mm | 0.025 ± 0.003 inch | ASTM D1777-96 |
| COATED FABRIC | Coating style No. VE216-5021 | ||
| Coating | Vermiculite impregnated on both sides | ||
| Weight | 620 ± 30 g/m2 | 18.24 ± 0.8 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.68 ± 0.06 mm | 0.027 ±0.002 inch | ASTM D1777-96 |
| Color | Brown | ||
| Temp resistance |
The maximum working temperature at 1200 0C The peak Temp.(melt point) 1500 0C |
||
