Product Details:
Payment & Shipping Terms:
|
| Yarn Type: | E-Glass | Weave Type: | Twill Woven Or Plain Woven Or Customized |
|---|---|---|---|
| Alkali Content: | Alkali Free | Width: | 1m To 2m Or Customized |
| Weight: | 460g/m2 | Thickness: | 0.41mm |
| Base Material: | 100% Fiberglass | Good Features: | Heat Resistant, High Resistance To Water, Weather |
| Standing Temperature: | -70°C To 300°C | Color: | Blue,black,or Customized |
| Coating: | Two Sides Polyurethane(PU) Coated | Type: | Thermal Insulation Fireproof Glass Fiber Cloth |
| Application 1: | Fire Blanket, Automobile Fire Blanket, Welding Blanket | Application 2: | Fire Curtain, Smoke Screen, Welding Curtain |
| Application 3: | Expansion Joints, Fabric Air Distribution Ducts | ||
| High Light: | fiberglass fabric roll,high temp fabric |
||

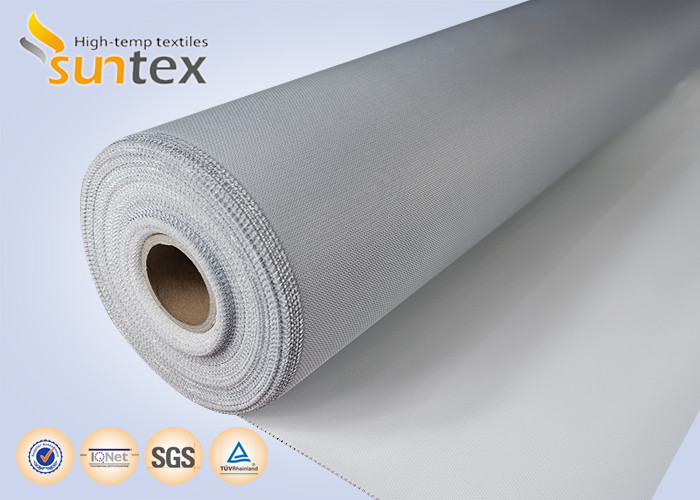

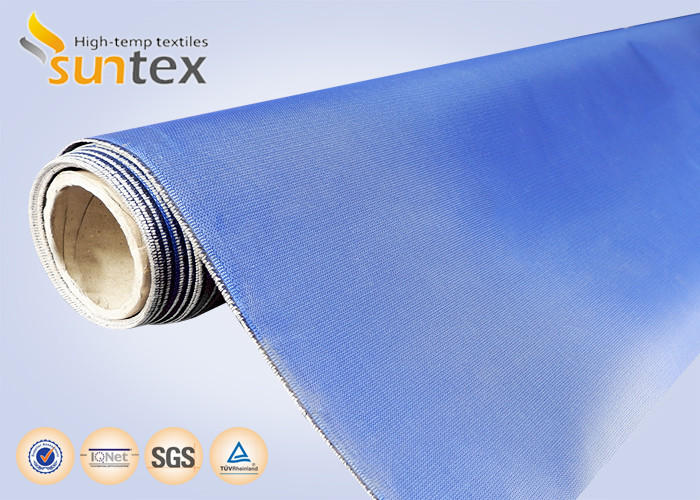

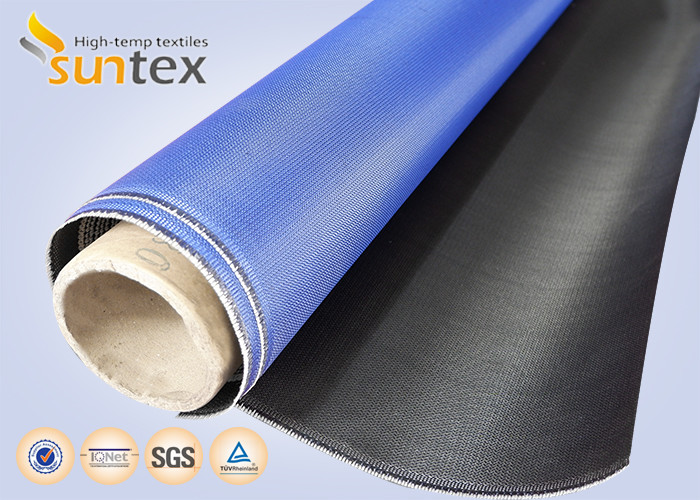

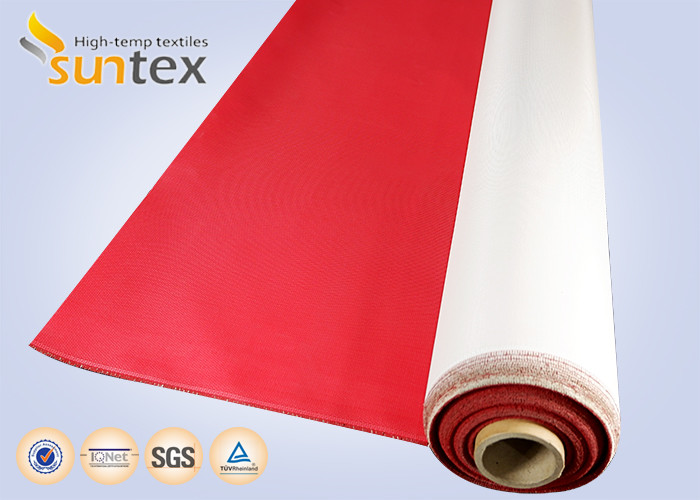

Fireproof High Temperature Resistant Durable Polyurethane Coated Fiberglass Fabric Cloth
PU (polyurethane) coated fabric is fiberglass cloth coated with PU (polyurethane) on the surface. Compared with basic fiberglass cloth, it features good abrasive resistance, waterproof, allergen resistance, high strength, high-temperature resistance, good flame retardant ability, and good chemical resistance. Suntex can provide one side and double side polyurethane coated fabric with different thicknesses, colors, and widths.
Main Applications:
--fire blankets, welding blankets
--fire doors & fire curtains, smoke curtains
--removable insulation cover/jacket, general insulation wrapping
--expansion joints
--fabric air distribution ducts
--fabric ductwork connector
--other fire and smoke control systems
| BASE FABRIC | Base fabric style No. GF430P | ||
| (Metric) | (English) | Test methods | |
| Weave | 4H Satin | Crowfoot | |
| Yarn | |||
| Warp | EC9 68 1*2 | ECG 75 1/2 | |
| Weft | EC9 68 1*2 | ECG 75 1/2 | |
| Construction | |||
| Warp | 18 ± 1 ends/cm | 48 ± 3 ends/inch | ASTM D 3775-96 |
| Weft | 12.6 ± 1 picks/cm | 32 ± 3 picks/inch | ASTM D 3775-96 |
| Weight | 430 ± 30 g/m2 | 12.6 ± 0.9 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.37 ± 0.06 mm | 0.015 ± 0.002 inch | ASTM D1777-96 |
|
|
|||
| COATED FABRIC | Coating style No. PU21A-2006 | ||
| Coating | Fire retardant, high performance, blue/black polyurethane on both sides | ||
| Weight | 460 ± 20 g/m2 | 13.5 ± 0.59 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.41 ± 0.03 mm | 0.017 ± 0.0012 inch | ASTM D1777-96 |
| Color | Blue/Black | ||
| Fire resistance | M0 approvals | NF92507 | |
| Temp resistance |
Glass fabric up to 5500C (10000F) Polyurethane coating up to 1800C (3560F) |
||
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Why do you choose us?
A: Suntex management and staff have over 20 years of cumulative experience in industrial textiles.
3. Q: What is your delivery time?
A: Generally we will within 30 days of delivery to you
4. Q: Can you produce customized goods?
A: Surely, we can be customized according to your demands.
5. Q: What kinds of payment you accept?
A: We accept T/T, L/C, D/P.
6. Q: Do you have other production?
A: Certainly, we still have Rewettable fiberglass fabric, EPDM rubber coated fiberglass fabric, Fluoride coated fiberglass fabric, Hypalon coated fiberglass fabric, PVC coated fiberglass fabric, PVC coated polyester fiberglass Carbonized fabric, Aluminized aramid fabric. We are looking forward to your enquiry.
