Product Details:
Payment & Shipping Terms:
|
| Yarn Type: | E-Glass | Weave Type: | Twill Woven Or Plain Woven Or Customized |
|---|---|---|---|
| Alkali Content: | Alkali Free | Width: | 1m To 2m Or Customized |
| Weight: | 620g/m2 | Thickness: | 0.77mm |
| Base Material: | 100% Fiberglass | Good Features: | Fireproof, Heat Resistant, Waterproof,weatherpoof |
| Standing Temperature: | 180°C | Color: | Silver,grey,blue,black,or Customized |
| Coating: | One Side Polyurethane(PU) Coated | Application 1: | Fire Blanket, Automobile Fire Blanket, Welding Blanket |
| Application 2: | Fire Curtain, Smoke Screen, Welding Curtain | Application 3: | Expansion Joints, Fabric Air Distribution Ducts |
| High Light: | fiberglass fabric roll,high temp fabric |
||

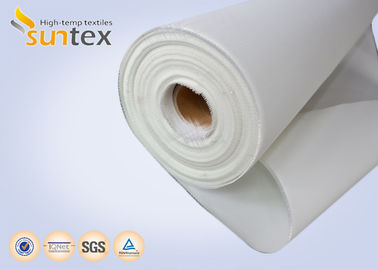

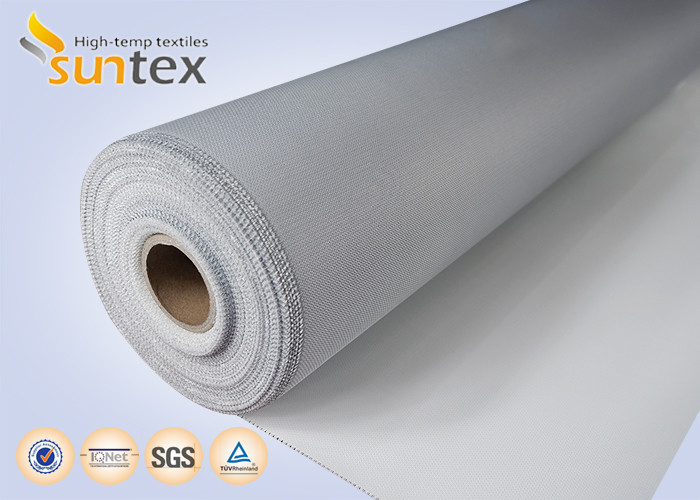

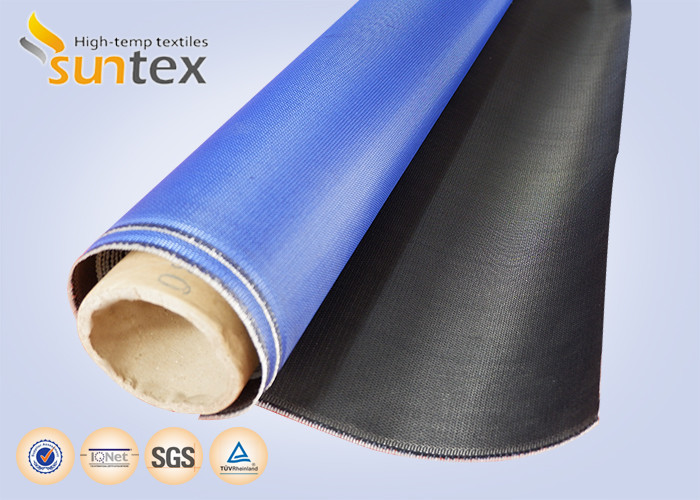

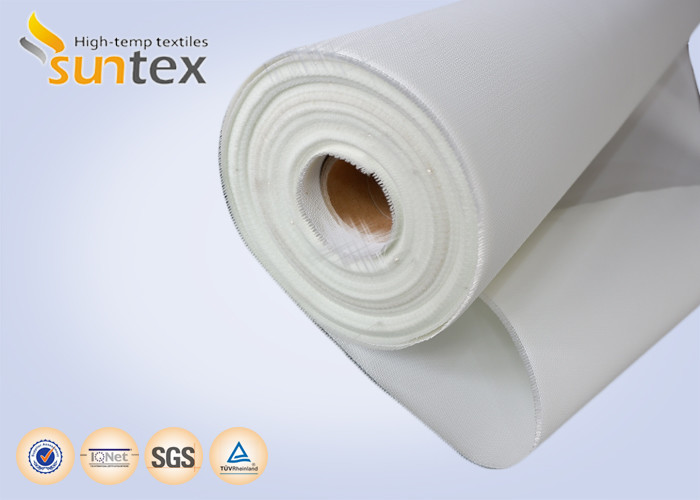

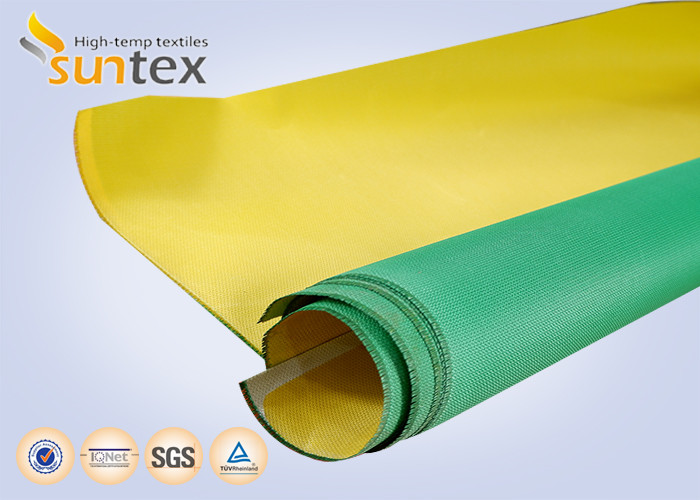

2025 Fireproof Chemical Resistant Non-stick Polyurethane Coated Fiberglass Fabric/Cloth
Suntex insulation fireproof non-stick fiberglass cloth polyurethane(PU) coated fabric is made up of woven fiberglass fabric with a waterproof polyurethane coating or laminate. The polyurethane coating is applied to two sides of the base fabric, this makes the fabric water-resistant, lightweight and flexible. Its applications include camping tents, clothing, bags, light-duty covers, fire/welding blanket, fire curtain, smoke screen, fabric ductwork connector, thermal insulation covers, flexible expansion joints, and so on.
| BASE FABRIC | Base fabric style No. TGF580 | ||
| (Metric) | (English) | Test methods | |
| Weave | Plain | Plain | |
| Yarn | |||
| Warp | ET9 430 tex | ETG 11.6 | |
| Weft | ET9 430 tex | ETG 11.6 | |
| Construction | |||
| Warp | 8 ± 0.8 ends/cm | 20 ± 2 ends/inch | |
| Weft | 5.7 ± 0.6 picks/cm | 14 ± 1 picks/inch | |
| Weight | 580 ± 30 g/m2 | 17 ± 0.9 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.73 ± 0.037 mm | 0.029 ± 0.002 inch | ASTM D1777-96 |
| COATED FABRIC | Coating style No. PU113-2019 | ||
| Coating | Aluminum polymer and polyurethane solution, one side | ||
| Weight | 620 ± 30 g/m2 | 18 ± 0.88 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.77 ± 0.04 mm | 0.029 ± 0.002inch | ASTM D1777-96 |
| Color | Grey | ||
| Flame resistance | Flame retardant | ||
| Temp resistance |
Glass fabric up to 5500C Polyurethane coating up to 1800 |
||
