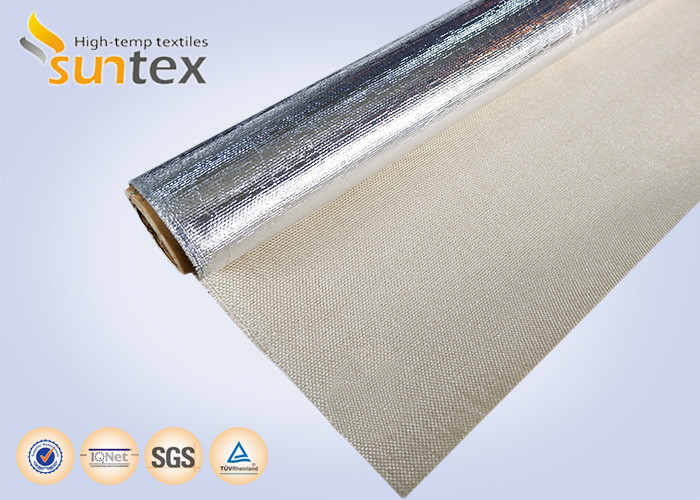

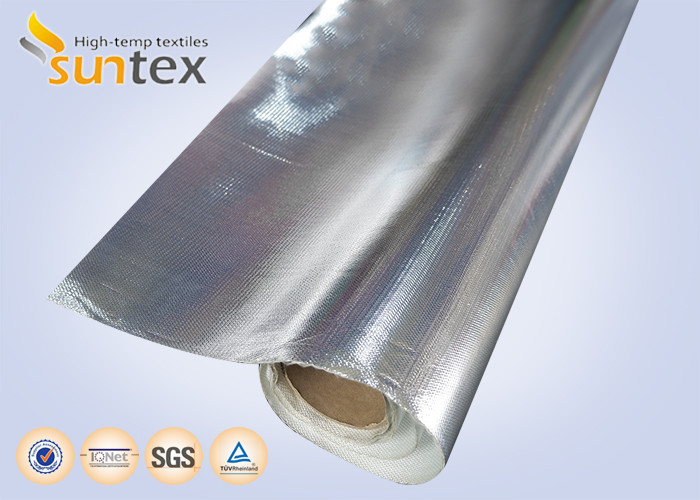

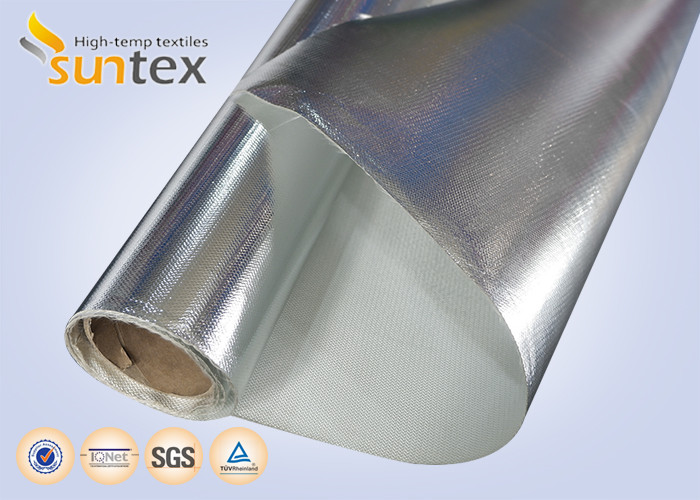

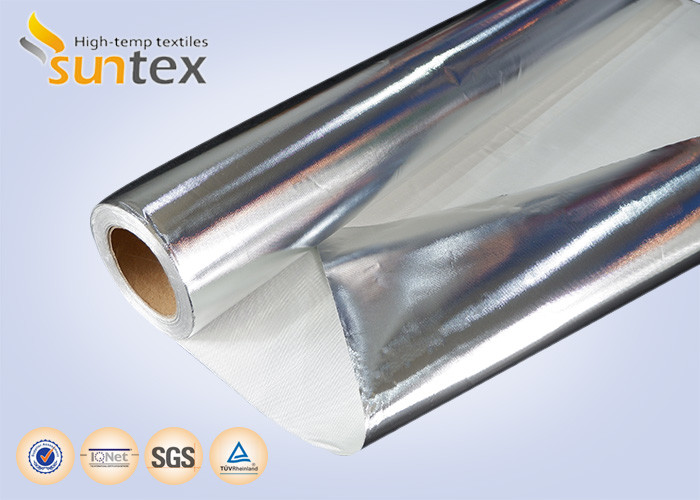

Flame Retardant Fiberglass Cloth | 0.4mm Aluminized Aluminum Foil, Thermal Insulation

Place of Origin:Jiangsu, China
Brand Name:Suntex
Model Number:GF430-AF110-6008
Minimum Order Quantity:Negotiable
Price:Negotiable
Payment Terms:L/C, D/P, T/T
Supply Ability:300000 Meter/Meters per Month
Product Details
Highlight:

aluminized fiberglass cloth

,

aluminized fiberglass fabric
Yarn Type: C-Glass
Weave Type: Twill Woven Or Plain Woven Or Customized
Alkali Content: Middle
Width: 1m To 2m Or Customized
Weight: 450g/m2
Thickness: 0.4mm
Base Material: 100% Fiberglass
Good Features: Fire-resistance, Anti-corrosion, Heat Insulation, Sound Absorbency
Standing Temperature: Up To 550 Degree C
Color: Silver, Or Customized
Coating: One Side Aluminum Foil Laminated
Application 1: Heat Shields,fire Curtains,insulation Pads/ Jacket/cover/blanket
Application 2: Pipe Insulation, Chemical/shipbuilding Industry, Fire/welding Blanket
Product Description

0.4mm Aluminum Foil Fabric Aluminized Fabric Thermal Insulation Material Flame Retardant Fiberglass Cloth

Product Description



    The combination of laminating an aluminum metallic/film heat shield to a layer of protective fiberglass insulation protects personnel or equipment by reflecting radiant heat. Suntex uses the high-temperature adhesive to ensure the maximum working temperature up to 550C.

-One side or both sides aluminum foil/film laminated available.

-The thickness of aluminum foils available from 0.0007mm to 3mm or customized.

-Width of fabrics available from 1m to 2m, or customized.



Main applications:

1.Heat-retardant curtains or screens, heat shields

2.Thermal insulation covers, mattress, jacket, blanket, and pads

3.Welding/fire protection

4.Chemical and shipbuilding industry, pipe insulation, piping protection

5.Other fire and smoke control systems



BASE FABRIC Base fabric style No. GF430
  (Metric) (English) Test methods
Weave 4H Satin Crowfoot
Yarn
Warp EC9 33 1*4 ECG 150 1/4
Weft EC9 33 1*4 ECG 150 1/4
Construction
Warp 18 ends /cm 48 ± 3 ends/inch
Weft 12.6 picks /cm 32 ± 3 picks/inch
Weight 430 ± 20 g/m2 12.6 ± 0.58 oz/yd2 ASTM D3776-96
Thickness 0.37 ± 0.02 mm 0.0145 ± 0.0008 inch ASTM D1777-96

COATED FABRIC Coating style No. AF110-6008
Coating Aluminised polymer film, one side
Weight 450 ± 20 g/m2 13.2 ± 0.59 oz/yd2 ASTM D3776-96
Thickness 0.39 ± 0.03 mm 0.015 ± 0.0012 inch ASTM D1777-96
Color Silver
Temp resistance

Glass fabric up to 5500C (10000F)

Aluminum foil up to 1400C (3000F)





GF430-AF110-6008-rl
