Customized Reusable Fiberglass Thermal Insulation Fabric Cover Removable Insulation Jacket

Place of Origin Jiangsu, China
Brand Name Suntex
Model Number fiberglass removable insulation jacket
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Packed in cartons loaded on pallets or according to customers' requirements.
Delivery Time 5-20 days
Payment Terms L/C, D/P, T/T
Supply Ability 200000 Pieces/ month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Aluminum-foil,glassfiber And High Temperature Resistance Cloth Yarn Type E-Glass
Alkali Content Alkali Free Weave Type Twill
Weight From 200 To 2000 Gram/sq.mtr Thickness 25-100mm
Width 1m 1.2m 1.5m 1.8m 2m Or Customized Colors Red,grey,black,green,and Customed Colors
Temperature Resistance -70C~+1000 C Size Be Customized According To Different Shapes And Sizes Of The Equipment
Fabrics For Removable Thermal Insulation Pads,jackets Good Features Excellent Insulation, Water And Oil Proofing, Easy To Clean
Application 1 Heat Preservation And Insulation On Pipes, Elbow, Flange, Tees Application 2 Chemical Reactors, Turbine Suits, Heat Exchanges, Exhaust Pipe
High Light

silicone rubber coated fiberglass cloth

,

heat reflective fabric

Leave a Message
Product Description

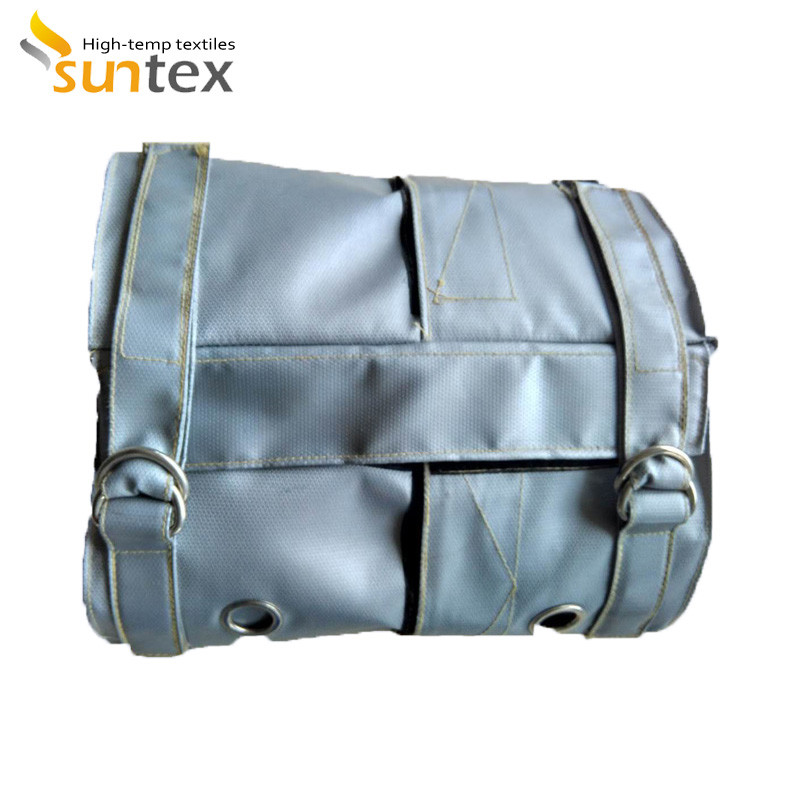

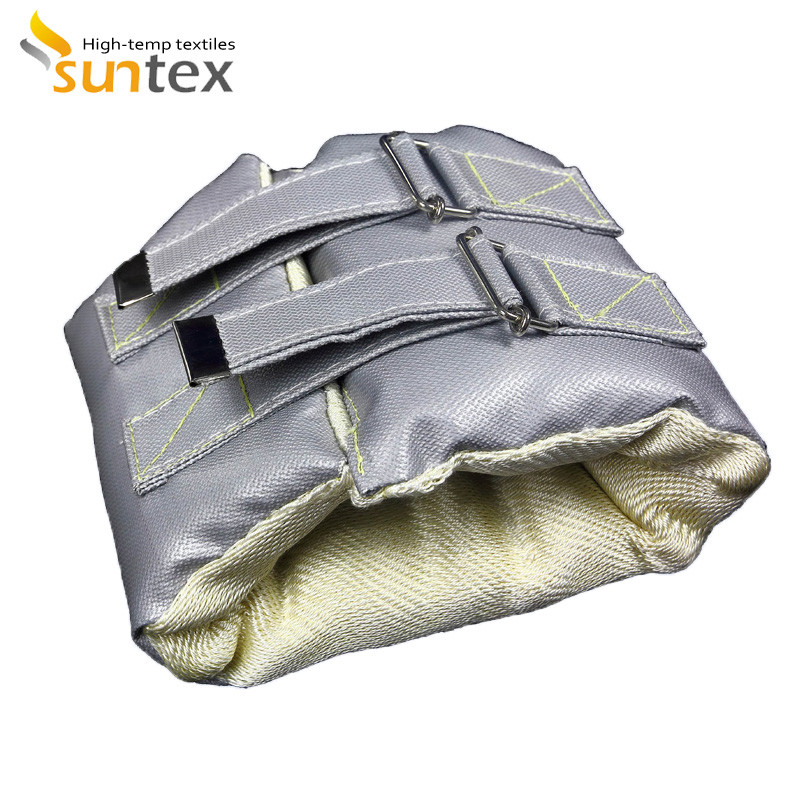

Customized Reusable Fiberglass Thermal Cover Removable Insulation Jacket



Product Description



    Suntex removable insulation jackets are made of glass fiber and high-temperature resistant aluminum foil or silicone cloth. The Jacket comprises three layers-inner, insulation, and protective layers. The working temperature can be up to 1000 C.It has many advantages such as excellent insulation, water, and oil proofing,multi-lay protection,anti-corrosion, easy to clean, easy to bend,pollution-free. It Can be customized according to different shapes and sizes of the equipment, it is all up to customers’ requirements.



Application:

--removable thermal insulation cover, insulation blanket, insulation cover

--injection molding machine, extrusion machines, molds& dies

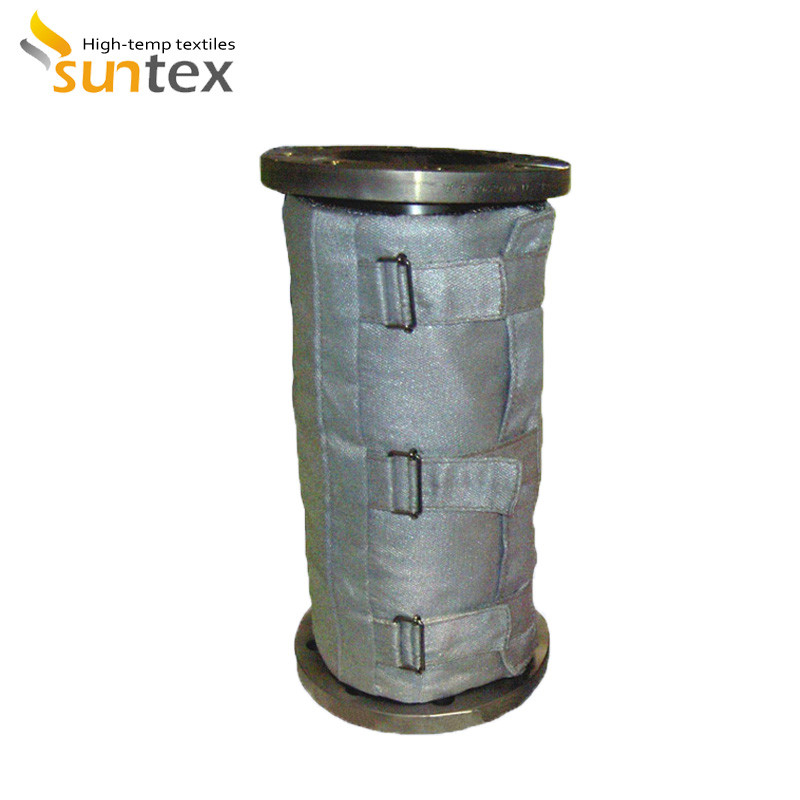

--heat preservation and insulation on pipes. elbow, flange, tees, chemical reactors
--turbine suits of thermal power and nuclear powers
--gas turbine suits, the heat exchanges and the exhaust pipe of engines

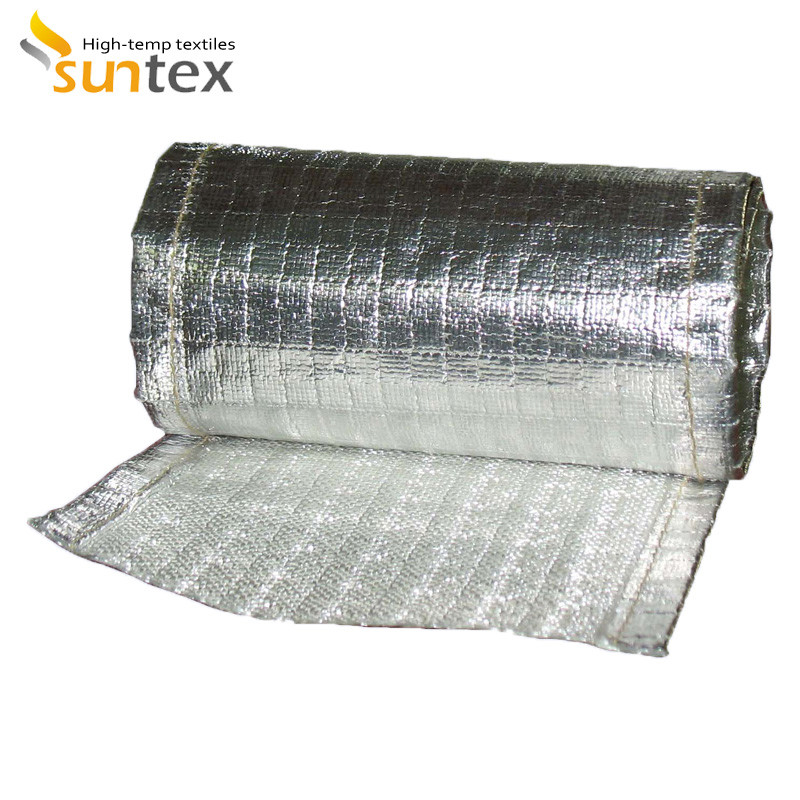

Hereunder is a fabrics list for thermal insulation jacket, cover, and mattress.

Style No. Base fabric Coatings Color Weight Thickness Working temp.
(gram/m2) (Oz/yd2) (mm) (inch) (0C) (0F)
GF430P-SI1413 Fiberglass Silicone silver grey 510 15 0.4 0.016 260 500
GF430P-SI2423 Fiberglass Silicone silver grey 560 16 0.45 0.018 260 500
GF660P-SI2453 Fiberglass Silicone silver grey 960 28 0.76 0.030 260 500
GF880P-SI2463 Fiberglass Silicone silver grey 1380 41 1.25 0.049 260 500
GF600-WS210 Fiberglass Weave-locked Green 630 19 0.6 0.024 550 1000
GF800-WS212 Fiberglass Weave-locked Blue 830 24 0.75 0.030 550 1000
GF430-PTFE213E Fiberglass PTFE Grey/Black 530 16 0.45 0.018 550 1000
GF430-AL1110 Fiberglass Aluminum Foil Silver 470 14 0.4 0.016 550 1000
GF430-AL1300 Fiberglass Aluminized polymer film Silver 450 13 0.4 0.016 550 1000
TGF1000-GP225 Fiberglass Graphite Black 1100 32 1.5 0.059 700 1290
TGF2050-GF235 Fiberglass Graphite Black 2270 67 3.5 0.138 700 1290
TGF880-GP225 Fiberglass Graphite Black 980 29 1 0.039 700 1290
TGF1000-VE226 Fiberglass Vermiculite Tan 1080 32 1.5 0.059 750 1380
TGF1000-CS2110 Fiberglass Calcium Silicate White 1080 32 1.5 0.059 700 1290
TGF1000-CS2111 Fiberglass Calcium Silicate Green 1080 32 1.5 0.059 700 1290
TGF1000-CS2112 Fiberglass Calcium Silicate Blue 1080 32 1.5 0.059 700 1290
