Product Details
Highlight:
high temperature fabric cloth
,high temperature fabrics
Weave Type:
Twill Woven
Alkali Content:
Alkali Free
Yarn Type:
E-Glass
Thickness:
0.4mm-3mm
Width:
80~200cm, 1m, 1.2m, 1.5m, 1.8m, Or Customized
Standing Temperature:
800C To 1200C
Good Features:
High Temperature Resistant, Chemical Resistant, Incredibly Durable
Color:
White,yellow,or Customized
Application 1:
Thermal Insulation, Fireproof And High Temperature
Application 2:
Fireproof Materials, Aerospace Material Industry
Product Description

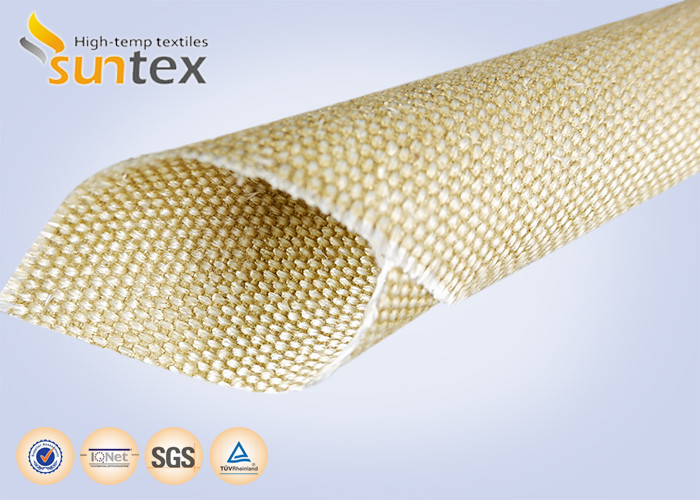

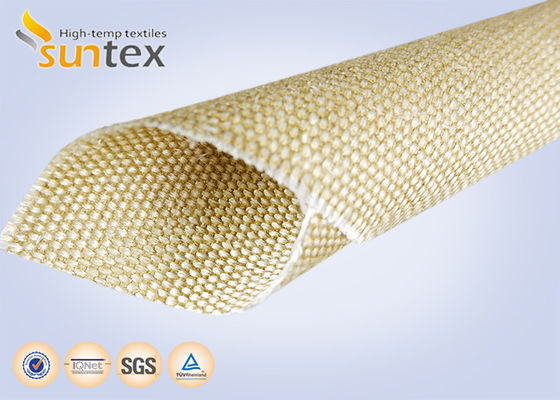

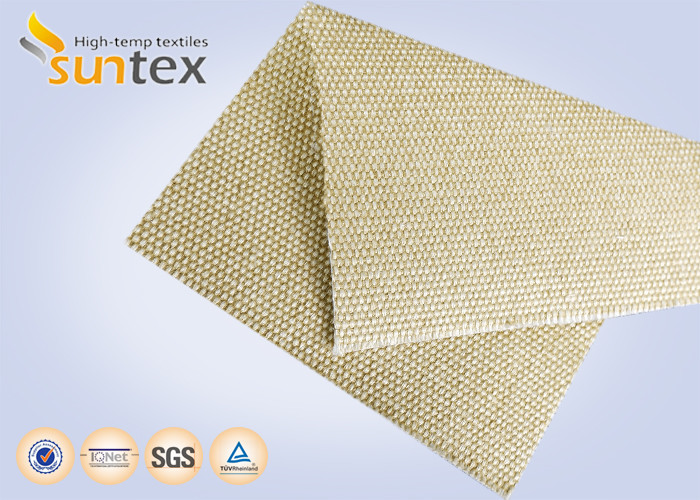

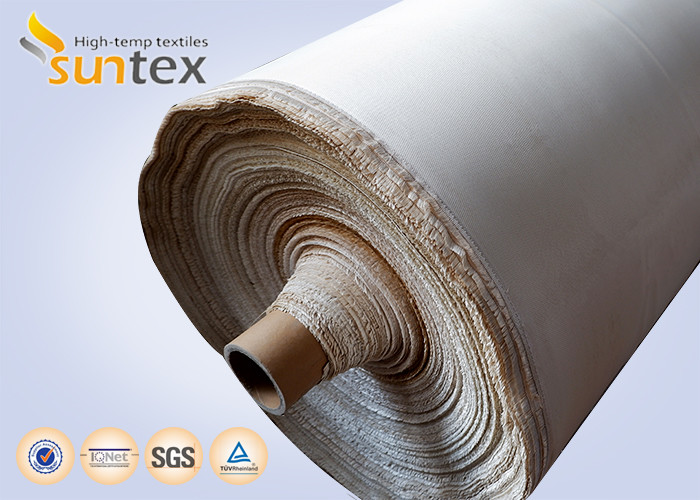

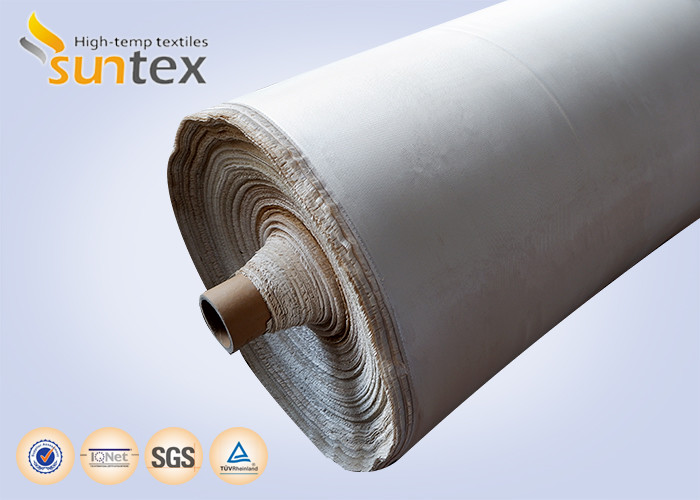

1200C Ceramics Fiber Cloth With Stainless Steel Wire Heat Insulation Materials
Product Description
Suntex Ceramic Fiber Cloth is a high temperature fabric made from ceramic yarn, manufactured from ceramic fiber yarn which reinforced with or chrome steel wire.
Characteristic:
--high temperature resistance
--high strength
--durable, long-lasting
--excellent chemical stability
--low heat capacity and low thermal conductivity
--fast and easy installation
--excellent thermal resistance capability
--high strength
--durable, long-lasting
--excellent chemical stability
--low heat capacity and low thermal conductivity
--fast and easy installation
--excellent thermal resistance capability
Product Application
--linings for furnace, kiln, and boiler
--protective and insulating covers, shields, gaskets, cable or pipe wrapping
--safety blankets, curtains, welding blankets
-- fireproof pipe wraps
-- high temperature filtration
--high temperature insulation and gaskets
--welding, foundry works, aluminum and steel mills, shipyards, refineries, power plants, and chemical plants, etc
| BASE FABRIC | Base fabric style No. TGF1200S | |||
| (Metric) | (English) | Test methods | ||
| Weave | Panama | Panama | ||
| Yarn | ||||
| Warp |
ET9 1250 tex S.S 316# wire |
ETG 4.0 S.S 316# wire |
||
| Weft |
ET9 770 tex S.S 316# wire |
ETG 6.5 S.S 316# wire |
||
| Construction | ||||
| Warp | 6 ± 0.6 ends /cm | 15 ± 2 ends/inch | ASTM D 3775-96 | |
| Weft | 5.5 ± 0.5 picks /cm | 14 ± 2 picks/inch | ASTM D 3775-96 | |
| Weight | 1200 ± 50 g/m2 | 35 ± 1.47 oz/yd2 | ASTM D3776-96 | |
| Thickness | 1.5 ± 0.07 mm | 0.059 ± 0.003 inch | ASTM D1777-96 | |
| COATED FABRIC | Coating style No. CS210-5030 | |||
| Coating | Formulated inorganic solutions coated on both sides | |||
| Weight | 1220 ± 50 g/m2 | 36 ± 1.47 oz/yd2 | ASTM D3776-96 | |
| Thickness | 1.5 ± 0.07 mm | 0.055 ± 0.003 inch | ASTM D1777-96 | |
| Color | Brown (Tan) | |||
| Temp resistance | 7000C | 13000F | ||
