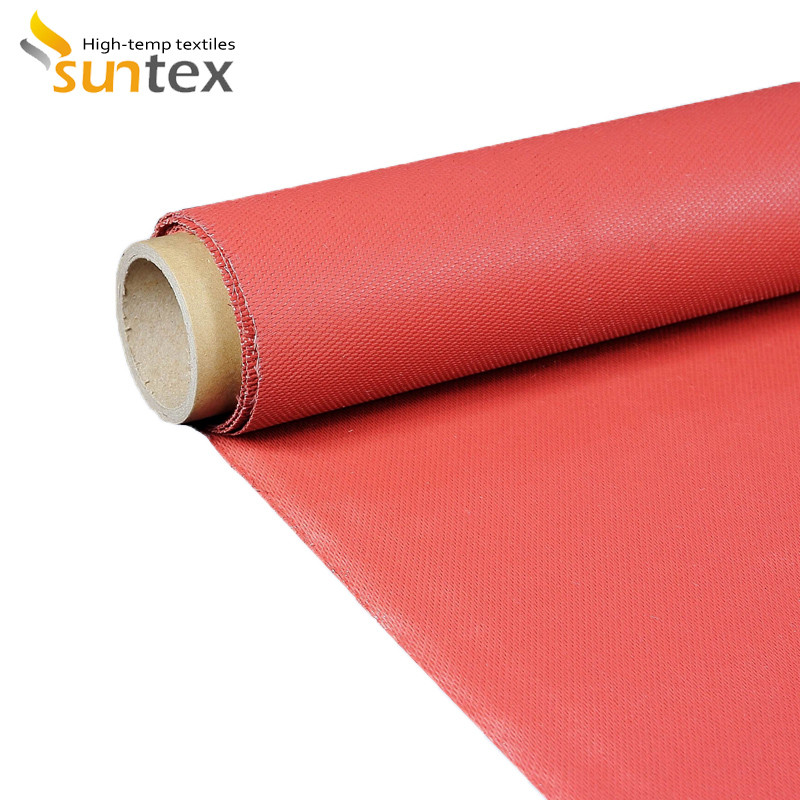

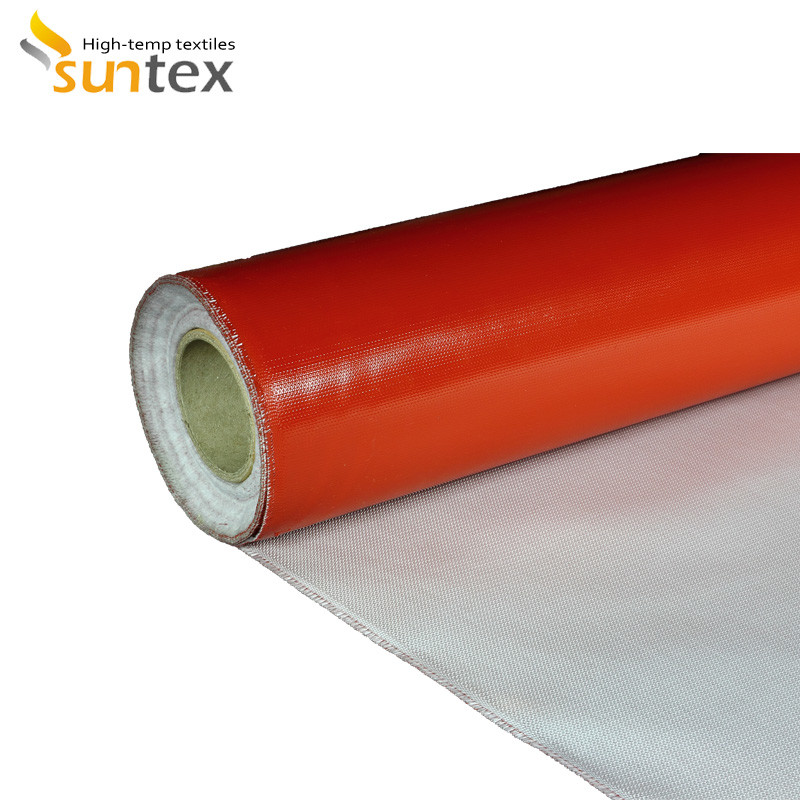

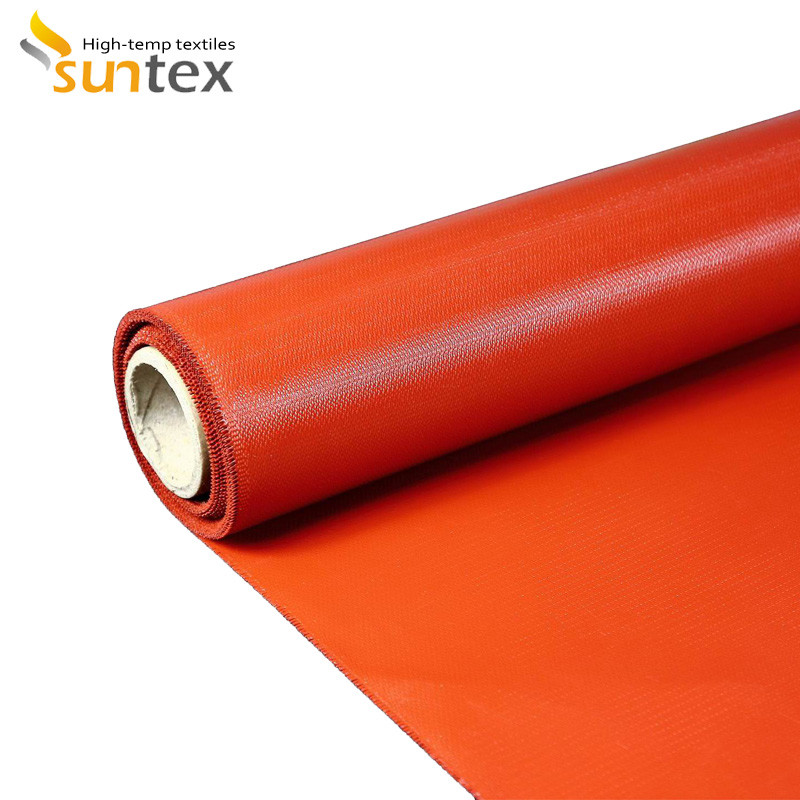

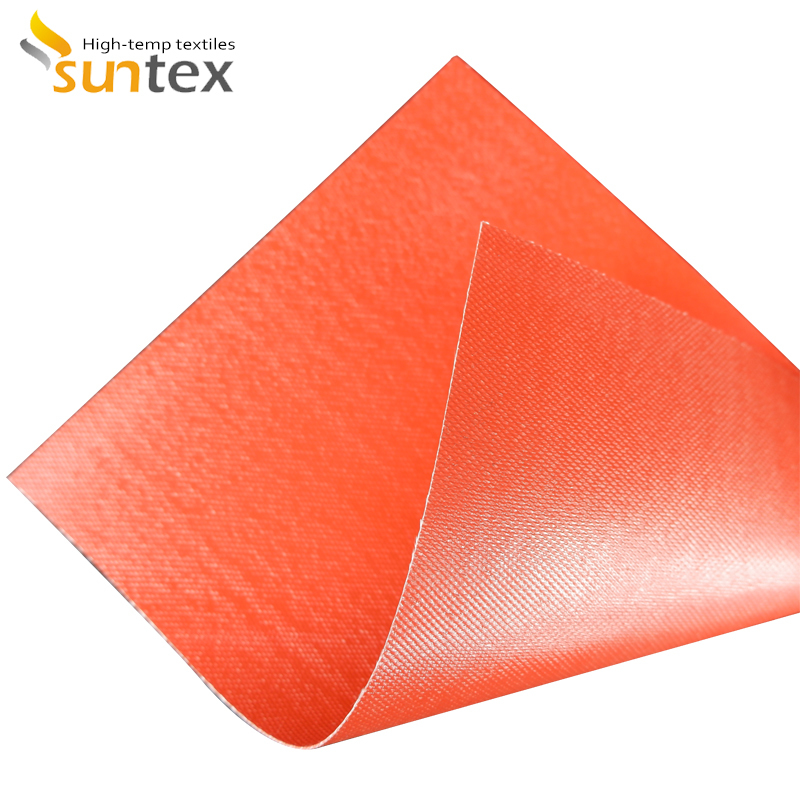

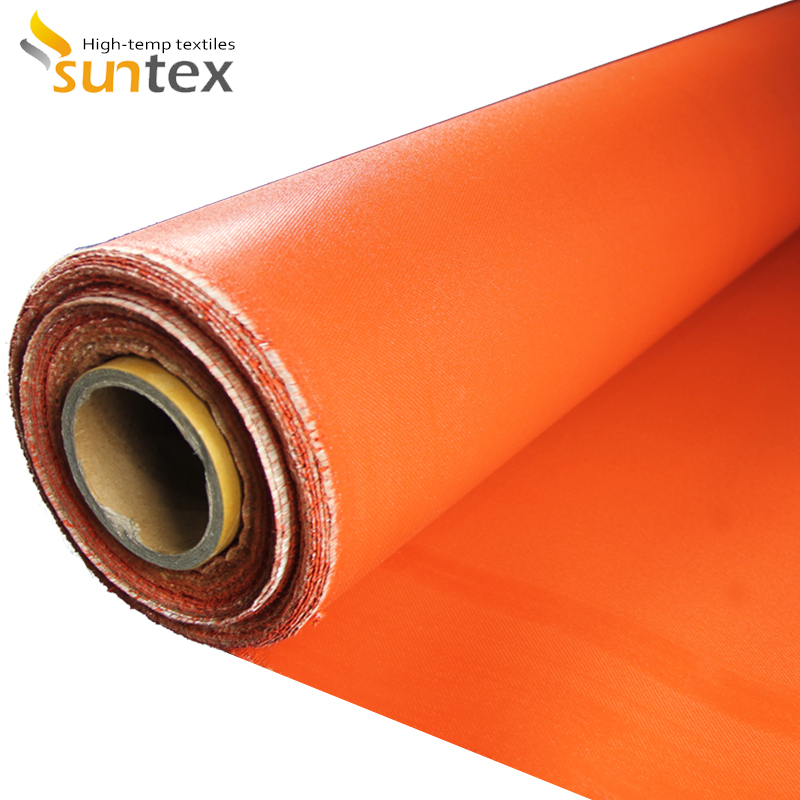

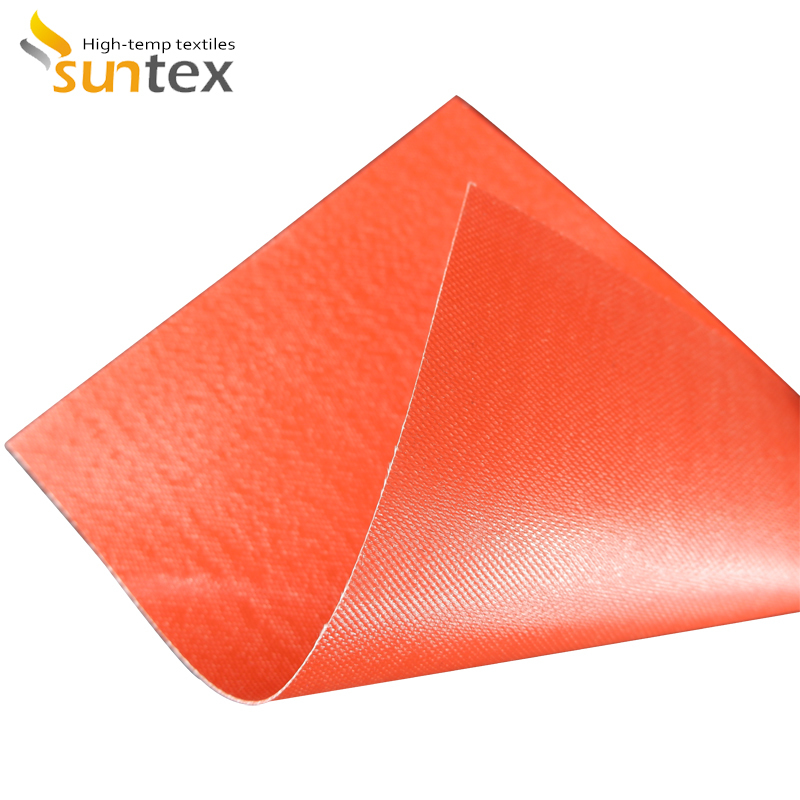

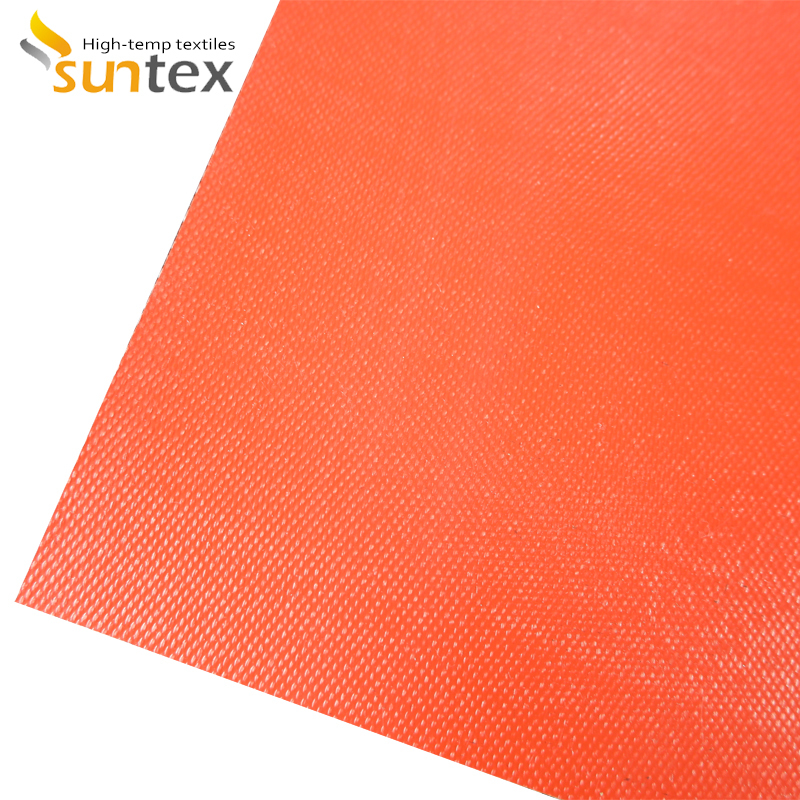

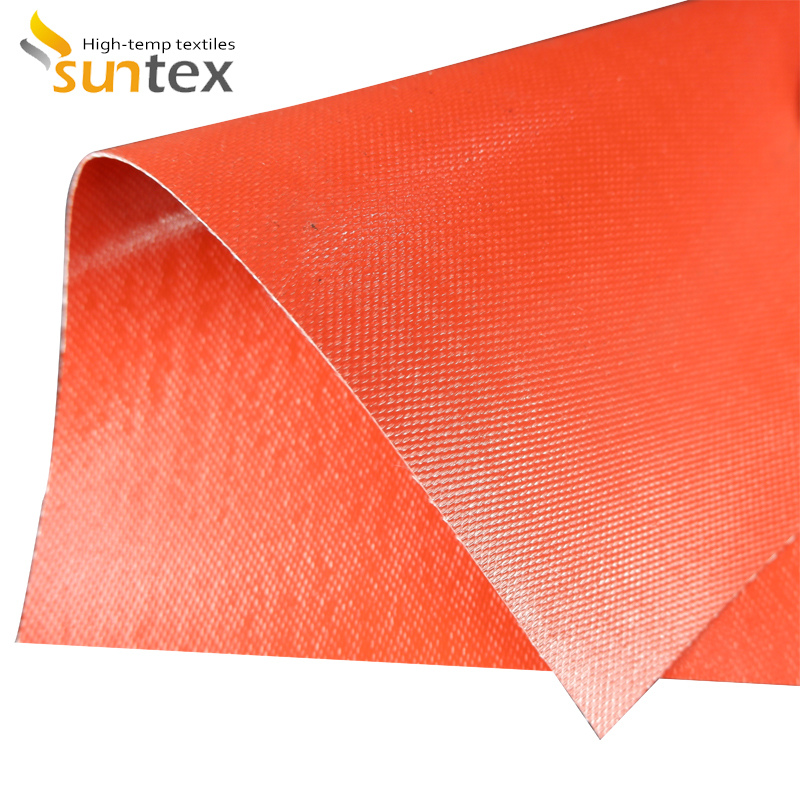

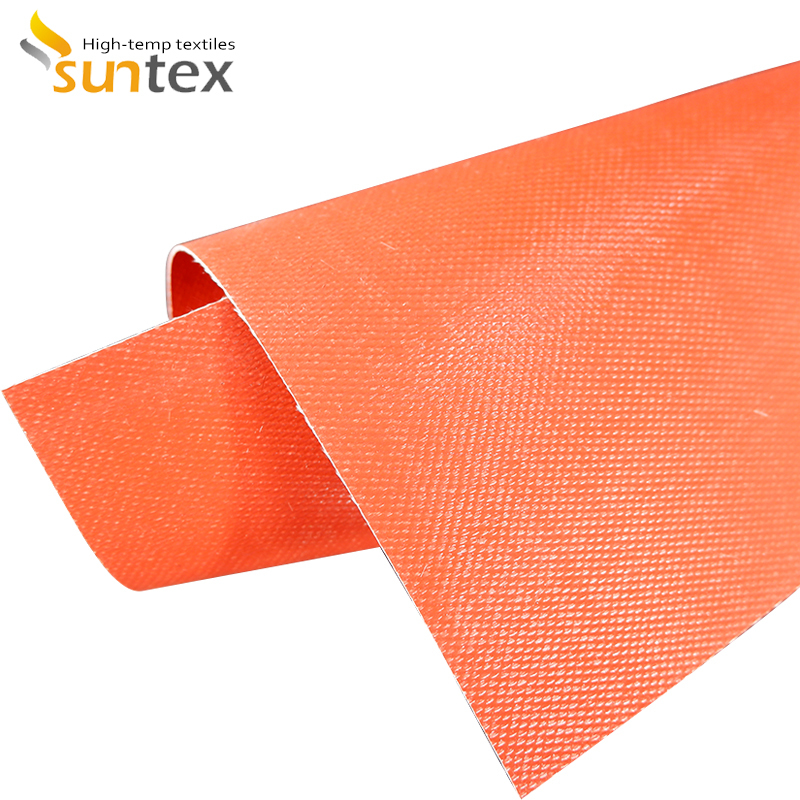

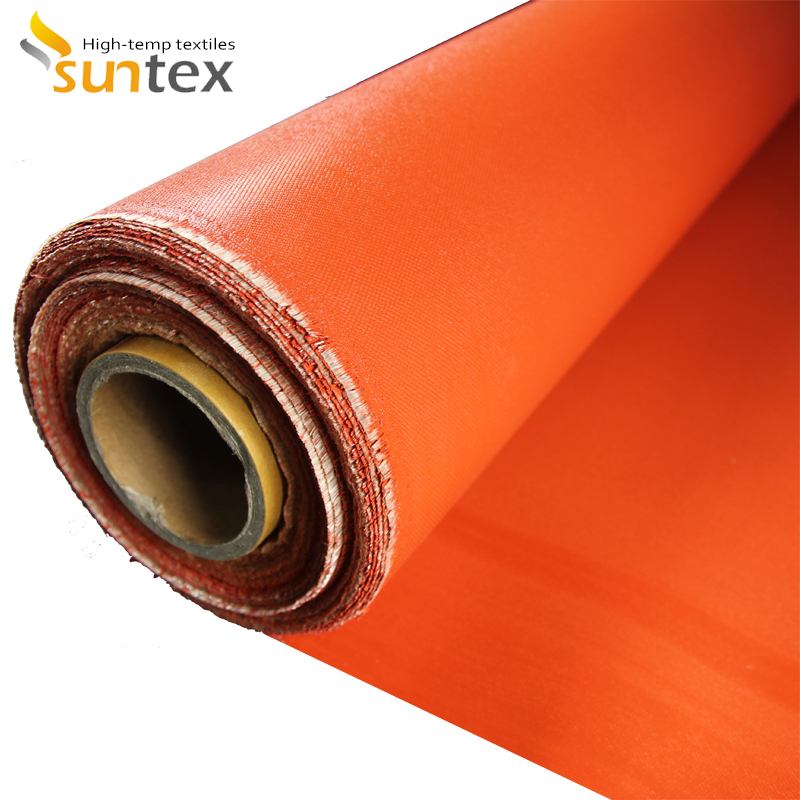

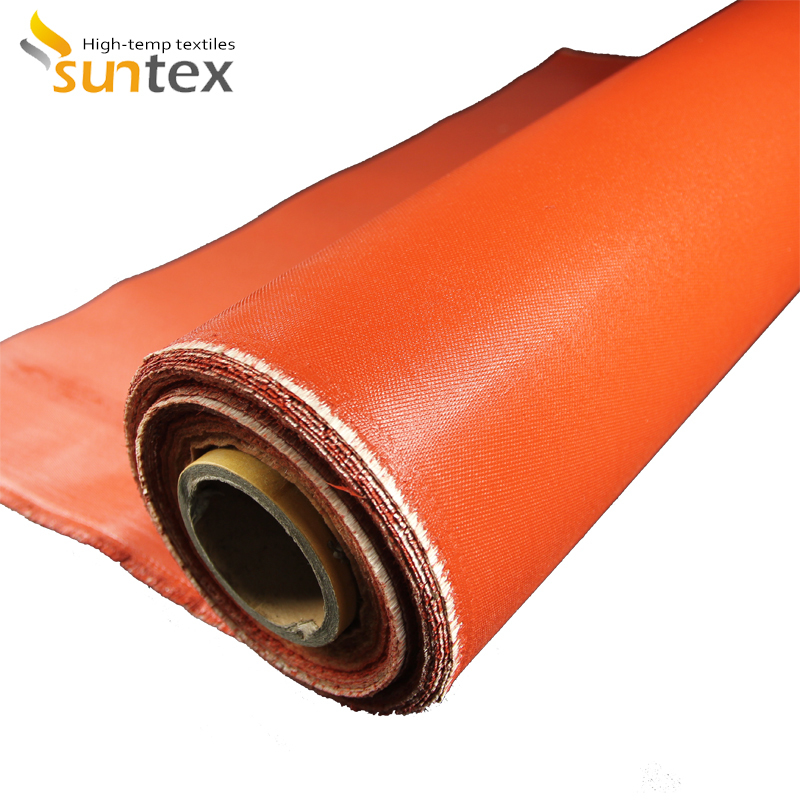

Expansion Joints 0.4mm Silicone Coated Glass Fiber Fabric
Place of Origin:Jiangsu, China
Brand Name:Suntex
Model Number:GF430P-SI233-1015
Minimum Order Quantity:500 Square Meter/Square Meters
Price:US$2.8 - US$12 / Square Meter
Payment Terms:L/C, D/P, T/T
Supply Ability:300000 Square Meter/Square Meters per Month
Product Details
Highlight:
0.4mm colored fiberglass cloth
,Expansion Joints fire retardant curtain fabric
Coating:
Two Sided Silicone Rubber
Yarn Type:
E-Glass
Alkali Content:
Alkali Free
Weight:
560 G/m2
Thickness:
0.4mm
Width:
1m X1m,1.2x1.2m,1.5m*1.5m, 1.2x1.8m,1.8x1.8m,or Customized
Colors:
Red,grey,black,green,and Customed Colors
Temperature Resistance:
550 C Degree
Good Features:
Non-toxic, Water And Oil Resistant, Fire Resistance
Application 1:
Fire Doors, Fire&smoke Curtains, Fabric Ductwork Connector
Application 2:
Removable Thermal Insulation Covers, Jackets, And Pads
Product Description
Double Sided Silicone Coated Fiberglass Fabric For Thermal Insulation & fire-protection & expansion Joints
Advantage:
1. good certified fire resistance.
2. red,grey,black,green,and customized colors.
3. easy to be applied, sewn, and fabricated.
4. good abrasion resistance property.
5. good tensile strength.
6. thickness, weight, weave, all can be customized base on your application.
Usage: fire protection, fire doors, fire curtains, smoke curtains, fabric ductwork connector, removable thermal insulation covers, jackets, and pads
Color: red/black/white/blue/grey/colored
Product Details
| COATED FABRIC | Silicone rubber 2 side Coating style No. GF430P-SI233-1015 |
||
| Weight | 560 ± 50 g/m2 | 16.5 ± 1.4 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.4 ± 0.05 mm | 0.016 ±0.002 inch | ASTM D1777-96 |
| Color | silver grey | ||
| Fire resistance | Flame retardant | ||
| Temp resistance |
Glass fabric up to 550℃ (1000℉) Silicone rubber coating up to 250℃ (500℉) |
||
Application
| Style No. | Weight | Thickness | color | Coating | ||
| (g/m2) | Oz/yd) | (mm) | (inch) | |||
| GF200T-SI220-1003 | 260 | 7.6 | 0.23 | 0.09 | White | Double side |
| GF430P-SI233-1015 | 560 | 16.5 | 0.42 | 0.0165 | Silver Grey | Double side |
| GF430P-SI244-1017 | 590 | 17 | 0.45 | 0.0177 | Red | Double side |
| GF430P-SI261-1020 | 730 | 21.5 | 0.53 | 0.02 | Green | Double side |
| GF66OP-SI263-1033 | 960 | 28 | 0.72 | 0.0283 | Silver Grey | Double side |
| GF660P-SI165-1023 | 960 | 28 | 0.72 | 0.0283 | Black | Single side |
| GF880-SI244-1026 | 1080 | 32 | 0.95 | 0.374 | Red | Double side |
| GF880P-SI253-1027 | 1120 | 33 | 1 | 0.039 | Silver Grey | Double side |
