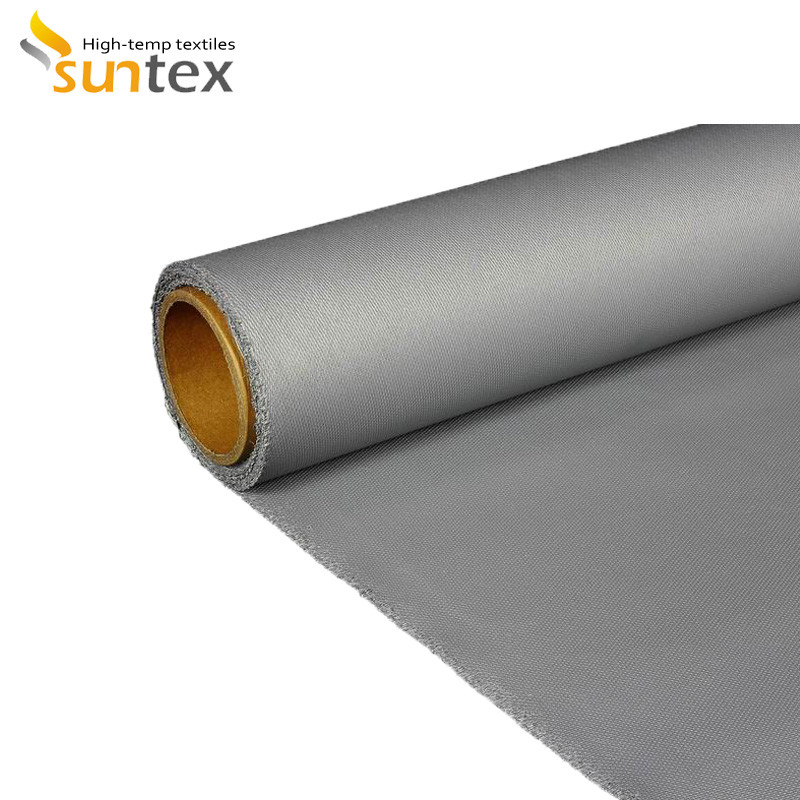

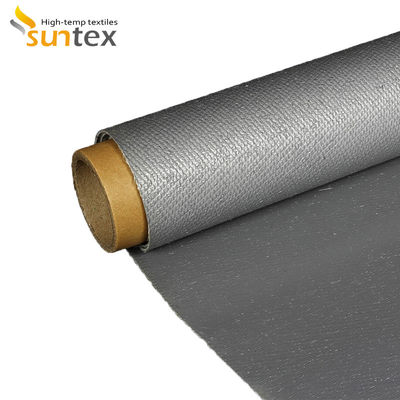

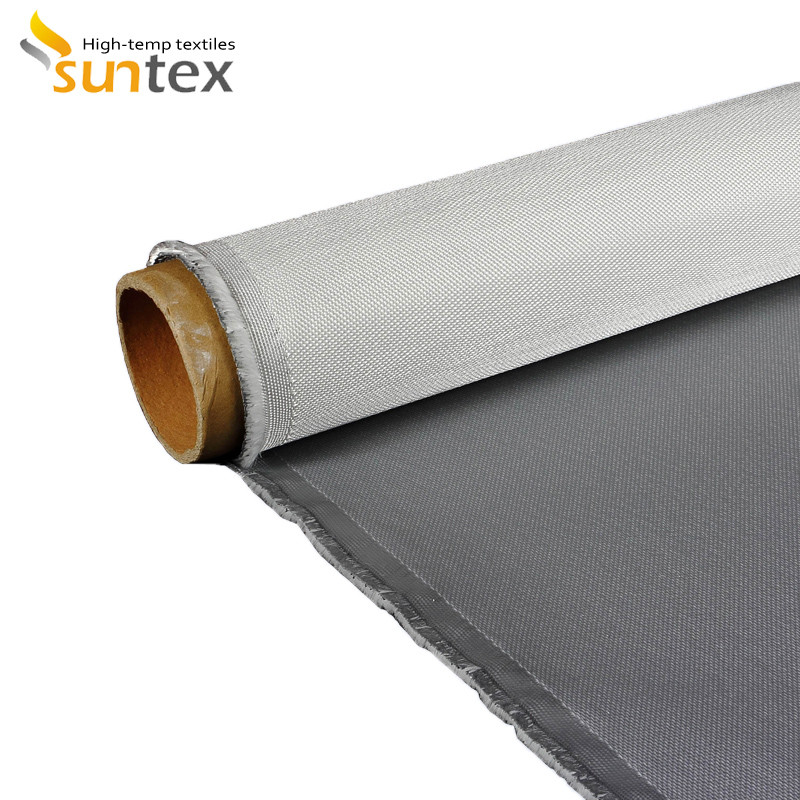

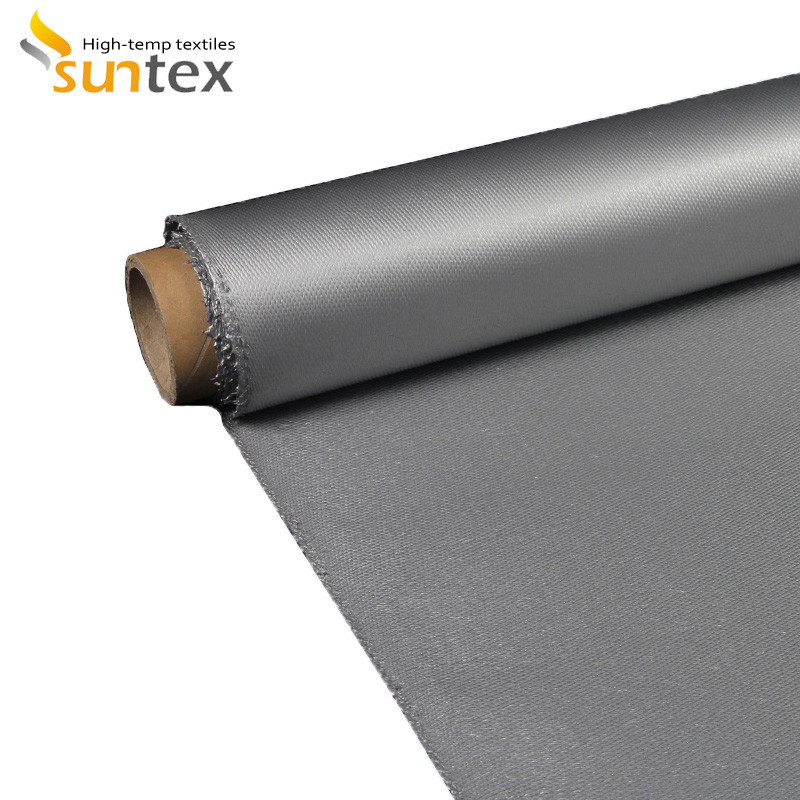

Wire Reinforced Silicone Coated Glass Cloth On Thermal Insulation Cover
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | Suntex |
| Model Number | GF430-SI123-1008-p |
| Minimum Order Quantity | 500 Square Meter/Square Meters |
| Price | US$1 - US$5 / Square Meter |
| Packaging Details | Wire reinforced glass fabric packed in cartons, loaded on pallets, or according to customers' requirements. |
| Delivery Time | 5-20 days |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 300000 Square Meter/Square Meters per Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Wire Reinforced Glass Fabric Used On Thermal Insulation Cover | Material | Fiberglass Fabric, Stainless Steel Wire |
|---|---|---|---|
| Keyword | Wire Reinforced Glass Fabric | Coating | Two Sided Silicone Rubber |
| Yarn Type | E-Glass | Alkali Content | Alkali Free |
| Weight | 200g/m2 To 2000g/m2 | Thickness | 0.2mm To 3mm |
| Width | 1m, 1.2m, 1.5m, 1.8m, 80~200cm, Or Customized | Colors | Red,grey,black,green,and Customed Colors |
| Temperature Resistance | -70°C To +550°C | Good Features | Water,chemical,and Oil Resistant,fire Resistant Insulation |
| Application 1 | Fire Doors & Fire Curtains, Welding/fire Blankets | Application 2 | Insulation Jackets,blankets,mattress,pad,fireproof Material |
| Application 3 | Fabric Expansion Joints, Fabric Ductwork Connector | ||
| High Light | Reinforced Silicone Coated Glass Cloth,Insulation Cover Silicone Coated Glass Cloth,Reinforced silicone fiberglass fabric |
||
Product Description
Wire Reinforced Glass Fabric Used On Thermal Insulation Cover
Fiberglass cloth with ss wire inserts - a woven plain fiberglass fabric with inserted stainless steel (t304) wire for added tensile strength. The stainless steel wires we use are stronger and more durable.
We multiple stainless steel wires with each strand of texturized fiberglass yarn. Weave can be one directional (stainless is only inserted in warp yarn) or two-directional (stainless is inserted in both warp yarn and weft yarn).
Suntex wire-inserted fiberglass fabrics are woven from premium fiberglass yarns and stainless steel wires for added superior tensile strength, puncture resistance, and heat resistance. The stainless steel wire works to dissipate heat across the surface of the fabric, improving heat resistance.
Features:
Temp resistance up to 650C
Content: warp: 100% fiberglass yarns
Fill: stainless steel wire (t304) plied with fiberglass yarns
Common applications:
removable insulation pads and jackets
welding blankets and equipment protection
fire and heat barriers
fire retardant curtains, welding curtains
fabric expansion joints
lagging, gaskets and seals
refineries, power plants, and offshore drilling platforms
| Total weight | 200 g/m2 to 2000 g/m2 |
| Thickness | 0.2 mm to 3mm |
| Color | grey, white or golden |
| Fire resistance | high temperature resistant |
| Working temperature | 650C |
| Coating | PU, vermiculite, silicone, or silica coated, etc. |
| Standard widths | from 100cm to 200cm or customized |
