Product Details:
Payment & Shipping Terms:
|
| Yarn Type: | E-Glass | Weave Type: | Satin Woven |
|---|---|---|---|
| Alkali Content: | Alkali Free | Width: | 1m To 2m Or Customized |
| Weight: | 910g/m2 | Thickness: | 1mm |
| Coating: | Two Side Aluminum Foil Laminated | Base Material: | 100% Fiberglass |
| Good Features: | High Tensile Strength, Excellent Resistance To Chemical And Water | Standing Temperature: | Up To 550 Degree C |
| Color: | Customized | Application 1: | Fire Blankets,welding Blankets,fire Doors,fire Curtains,smoke Curtains |
| High Light: | acrylic coating fabric,acrylic coated fiberglass fire retardant fabric,acrylic coat fiberglass |
||

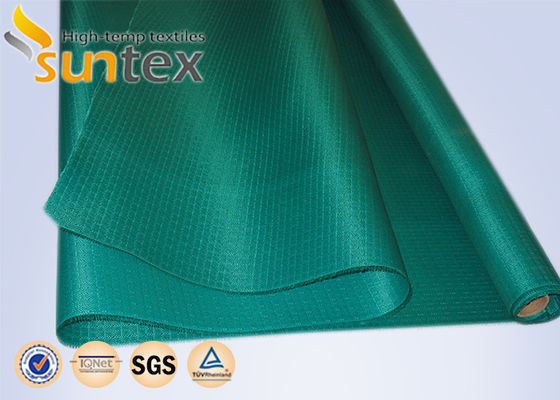

Acrylic coated fiberglass fire retardant fabric
Application:
>>Fire&welding blanket
>>Fire&smoke curtain
>>Fire&welding blanket>>Fire&smoke curtain
Specification:
>>Thickness: 0.2mm-2.0mm
>> Width:1000mm-1800mm
>>Thickness: 0.2mm-2.0mm>> Width:1000mm-1800mm
>>Surface treatment: Single side or double sides Acrylic coating
| BASE FABRIC | Base fabric style No. TGF880 | |||
| (Metric) | (English) | Test methods | ||
| Weave | 4 harness satin | Crowfoot | ||
| Yarn | ||||
| Warp | ET9 480 tex | ETG 8.6 | ||
| Weft | ET9 480 tex | ETG 8.6 | ||
| Construction | ||||
| Warp | 10 ± 0.6 ends/cm | 25 ± 2 ends/inch | ASTM D 3775-96 | |
| Weft | 8 ± 0.5 picks/cm | 20 ± 1 picks/inch | ASTM D 3775-96 | |
| Weight | 880 ± 40 g/m2 | 25.8 ± 1.2 oz/yd2 | ASTM D3776-96 | |
| Thickness | 1.0 ± 0.1 mm | 0.039 ± 0.005 inch | ASTM D1777-96 | |
| COATED FABRIC | Coating style No. AC225-3008 | |||
| Coating | Acrylic weave-set finish on both sides, high add-on. | |||
| Weight | 910 ± 40 g/m2 | 27 ± 1.2 oz/yd2 | ASTM D3776-96 | |
| Thickness | 1.05 ± 0.1 mm | 0.043 ±0.005 inch | ASTM D1777-96 | |
| Color | Black | |||
| Temp resistance | 5500C | 10000F | ||
