C Glass Polyurethane PU Coated Glass Fabrics For Welding Blanket

  • C Glass Polyurethane PU Coated Glass Fabrics For Welding Blanket
  • C Glass Polyurethane PU Coated Glass Fabrics For Welding Blanket
Place of Origin China
Brand Name SUNTEX
Model Number GF660C-PU113-2028
Minimum Order Quantity 20 rolls
Packaging Details Each roll in carton, several cartons in a pallet
Delivery Time 5-20 days
Payment Terms T/T; L/C, Paypal...
Supply Ability 500000sqm/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name PU Coated Glass Fabrics Standard Width 1000mm 1520mm 1550mm
Thickness 0.0248 Inch Colour Custom Made
Coating Temperature Resistance 350℉ Basic Fabric Temperature Resistance 1000℉
Application Welding Blanket
High Light

Polyurethane PU Coated Glass Fabrics

,

C Glass PU Coated Glass Fabrics

,

Welding Blanket PU Coated Glass Fabrics
Leave a Message
Product Description

C Glass Polyurethane PU Coated Glass Fabrics For Welding Blanket



Introduce

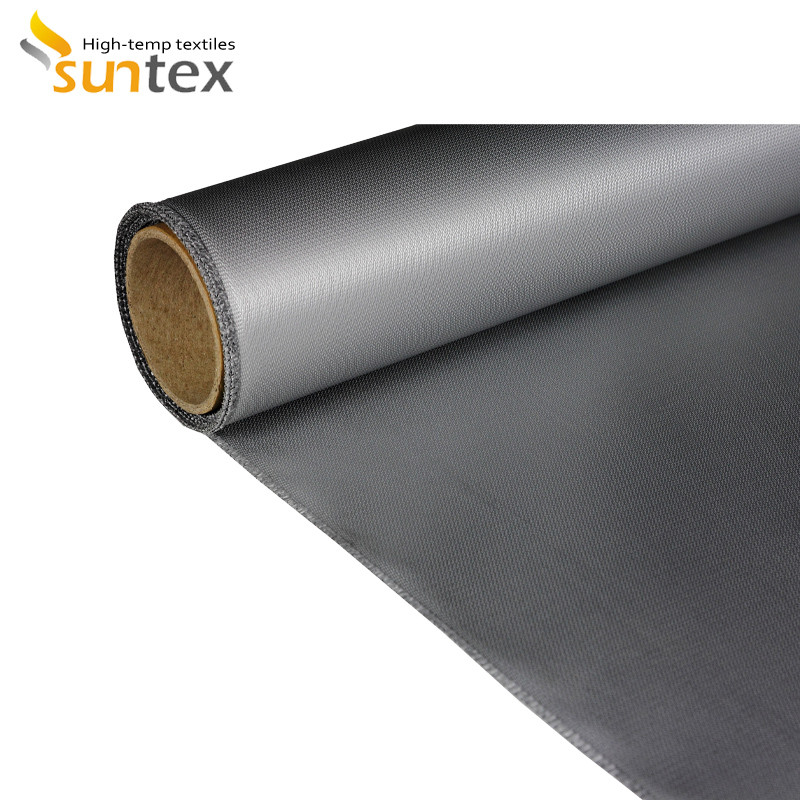

GF660C-PU113-2028 PU Coated Glass Fabrics is a woven fiberglass fabric with a specially formulated polyurethane aluminum polymer that provides a heat reflecting surface as well as other properties for the manufacturer of welding blanket and fire control systems. Other applications are insulation covers where GF660C-PU113 can be used as an attractive alternative to foil faced laminates for less demanding end uses.



Advantage of PU Coated Glass Fabrics



  • Non-sticky and easy to clean.
  • Food grade and nontoxic.
  • Heat resistance and fireproof.
  • Resistant to chemical corrosion, strong acid and alkali.
  • Good dimensional stability, high strength, and has good mechanical properties.
  • Low friction coefficient (0.05-0.1), the best choice for oil-free self-lubrication.
  • Light transmittance up to 6%-13%
  • High insulation property (the value of dielectric constant is only 2.6, and the value of tangent is less than 0.0025)
  • Anti-static and Ultraviolet-proof.



Data



Total weight 20.29 oz/y2
Standard Thickness 0.0248 inch
Standard width 1000mm 1520mm 1550mm
Coating Polyurethane
Color / colour of coating/surface White
Fire resistance Good
Coating temperature resistance PU coating 180 ℃
Basic fabric working temperature Basic fabric 550 ℃
Pattern Crowfoot
Fiberglass C-Glass



Related Products



Style No. Weight Thickness Color Coating
g/m2 oz/yd2 mm inch
GF200P-PU210-2001 220 6.5 0.21 0.0082 White 2 sides
GF430P-PU213-2004 460 13.5 0.41 0.0161 Silver grey 2 sides
GF430P—PU213-2005 460 13.5 0.40 0.015 Silver Grey 2 sides
GF430P-PU21A-2006 460 13.5 0.41 0.0161 Blue/Black 2 sides
GF430P—PU21B-2007 460 13.5 0.40 0.015 Grey White 2 sides
GF430P-PU223-2010 490 14.5 0.45 0.0177 Blue/Black 2 sides
GF660—PU223-2016 720 21 0.71 0.0275 Silver Grey 2 sides
TGF580-PU113-2019 620 18.3 0.77 0.0303 Silver grey 1 side
GF800C-PU223-2023 880 26 0.9 0.0354 Silver grey 2 sides
TGF1020—PU111-2025 1070 31.5 1.5 0.0590 Green 1 side
GF660S-PU213-2036 710 20.9 0.7 0.0276 Silver grey 2 sides
GF660S—PU113-2040 790 23 0.70 0.027 Grey 1 side
SL600-PU113-2044 630 18.6 0.7 0.0276 Silver grey 1 side
TGF1000P-PU223-2049 1100 32.4 1.2 0.0472 Silver grey 2 sides
