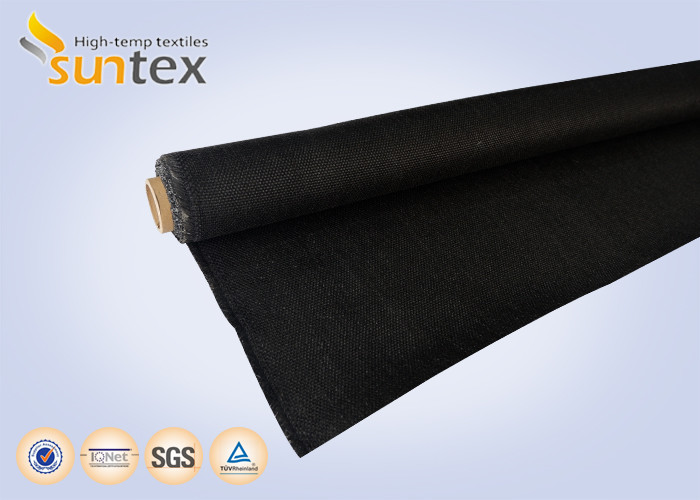

Black 600C PU Coated Fiberglass Fabric Insulating Properties
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | PU Coated Fiberglass Fabric | Unit Weight | 13.5 Oz/sq.y |
---|---|---|---|
Standard Thickness | 0.017 Inch | Weave | Crowfoot |
Coating Temperature Resistance | 180℃ 350℉ | Basic Fabric Temperature Resistance | 550℃ 1000℉ |
Feature1 | Fireproof | Feature2 | Waterproof |
High Light | 600C PU Coated Fiberglass Fabric,Black PU Coated Fiberglass Fabric,600C Polyurethane Fiberglass Cloth |

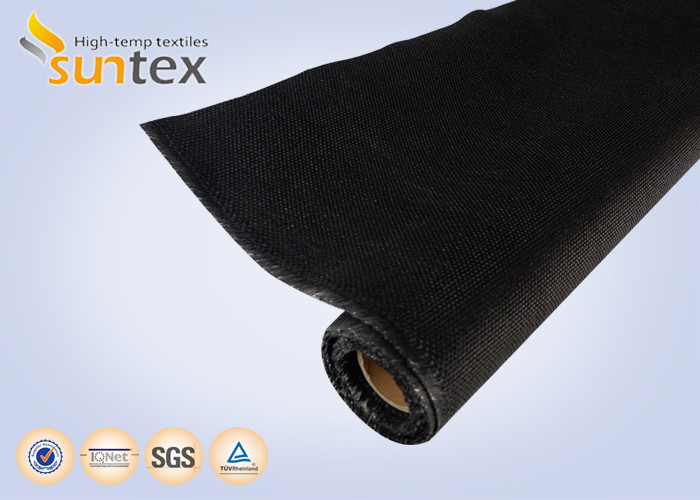

Black 600C PU Coated Fiberglass Fabric Insulating Properties
Applications of PU Coated Fiberglass Fabric
*Papermaking
*Food: microwave oven gasket, oven gasket,food drying
*Environment protection
*Printing: adhesive tape, transfer printing table cloth, carpet back glue curing conveyor belt, rubber vulcanization conveyor belt,abrasive sheet curing release cloth
*Clothing
Advantage of PU Coated Fiberglass Fabric
Suntex Polyurethane PU coated fiberglass cloth can withstand a continuous working temperature of 550C and a short duration working temperature of 600C.
Compared with basic woven glass fiber fabric, It has many good features such as good air gas sealing, fire resistant, abrasion resistance, oils, solvents resistance chemical resistant ability, no skin irritation, halogen free.
Fiberglass Fabric Data
Total weight | 13.5 oz/y2 |
Standard Thickness | 0.017 inch |
Standard width | 1000mm 1550mm |
Coating | Polyurethane |
Colour of coating | Yellow/Green |
Fire resistance | Excellence |
Coating temperature resistance | PU coating 180 ℃ |
Basic fabric working temperature | Basic fabric 550 ℃ |
Pattern | Crowfoot |
Fiberglass | E-Glass |
Related Products
Style No. | Weight | Thickness | Color | Coating | ||
g/m2 | oz/yd2 | mm | inch | |||
GF200P-PU210-2001 | 220 | 6.5 | 0.21 | 0.0082 | White | 2 sides |
GF430P-PU213-2004 | 460 | 13.5 | 0.41 | 0.0161 | Silver grey | 2 sides |
GF430P—PU213-2005 | 460 | 13.5 | 0.40 | 0.015 | Silver Grey | 2 sides |
GF430P-PU21A-2006 | 460 | 13.5 | 0.41 | 0.0161 | Blue/Black | 2 sides |
GF430P—PU21B-2007 | 460 | 13.5 | 0.40 | 0.015 | Grey White | 2 sides |
GF430P-PU223-2010 | 490 | 14.5 | 0.45 | 0.0177 | Blue/Black | 2 sides |
GF660—PU223-2016 | 720 | 21 | 0.71 | 0.0275 | Silver Grey | 2 sides |
TGF580-PU113-2019 | 620 | 18.3 | 0.77 | 0.0303 | Silver grey | 1 side |
GF800C-PU223-2023 | 880 | 26 | 0.9 | 0.0354 | Silver grey | 2 sides |
TGF1020—PU111-2025 | 1070 | 31.5 | 1.5 | 0.0590 | Green | 1 side |
GF660S-PU213-2036 | 710 | 20.9 | 0.7 | 0.0276 | Silver grey | 2 sides |
GF660S—PU113-2040 | 790 | 23 | 0.70 | 0.027 | Grey | 1 side |
SL600-PU113-2044 | 630 | 18.6 | 0.7 | 0.0276 | Silver grey | 1 side |
TGF1000P-PU223-2049 | 1100 | 32.4 | 1.2 | 0.0472 | Silver grey | 2 sides |
