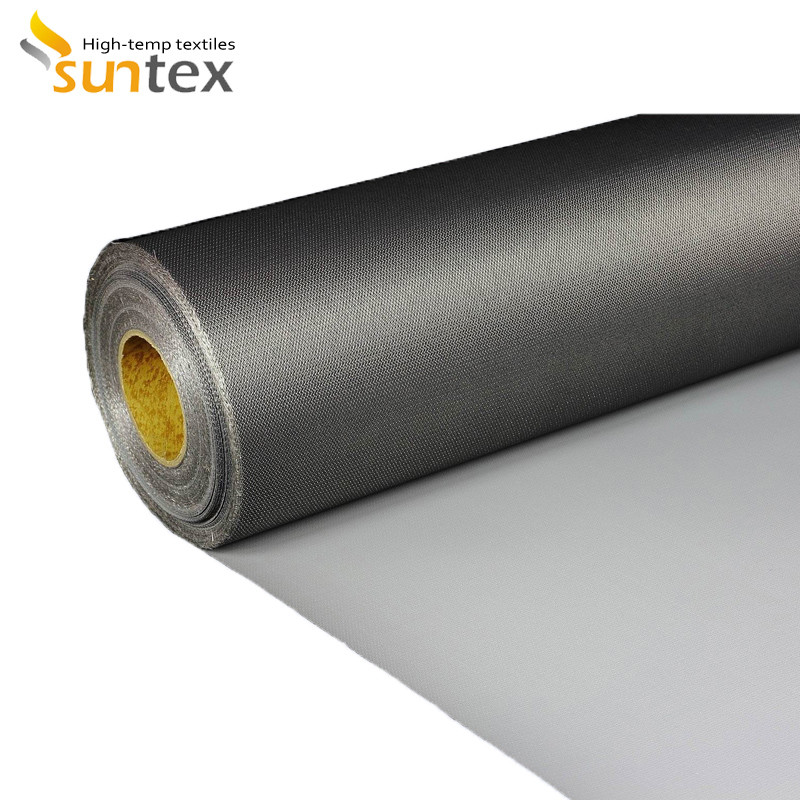

Non Stick 0.016 Inch PTFE Coated Fiberglass Cloth Electric Insulation

Place of Origin:China
Brand Name:SUNTEX
Model Number:GF430P-PTFE133-8003
Minimum Order Quantity:20 rolls
Payment Terms:T/T; L/C, Paypal...
Supply Ability:500000sqm/month
Product Details
Highlight:

0.016 Inch PTFE Coated Fiberglass Cloth

,

Non Stick PTFE Coated Fiberglass Cloth

,

0.016 Inch ptfe fiberglass fabric

Name: PTFE Coated Fiberglass Cloth
Standard Width: 1520mm 1550m
Standard Thickness: 0.016 Inch
Pattern: Crowfoot
Coating Temperature Resistance: 330℃ 620℉
Basic Fabric Temperature Resistance: 550℃ 1000℉
Application: Electric Insulation
Product Description

Non Stick 0.016 Inch PTFE Coated Fiberglass Cloth Electric Insulation



Introduce



PTFE Coated Fiberglass Cloth  has numerous applications as thermal insulation, electrical insulation in the electronics industry, and even as a component in vehicles, helmets. Light-weight fiberglass cloths also provide a smooth finish and are ideal for producing a waterproof layer over wood or other surfaces, such as is needed in boat repair and other marine applications.



Data of PTFE Coated Fiberglass Cloth



Standard weight 17oz/y2
Standard Thickness 0.016inch cm
Standard width 1520mm 1550mm
Coating PTFE
Colour Black
Fire resistance Well
Coating temperature resistance PTFE coating 330 ℃
Basic fabric working temperature Basic fabric 550 ℃
Construction warp 48 ± 3 ends/inch
Construction weft 32 ± 3 ends/inch



Applications of PTFE Coated Fiberglass Cloth



GF430P-PTFE133-8003 PTFE Coated Fiberglass Fabric is good for many application like dust lagging and expansion joint. Sometimes people also used it in fire control or anti-stastic solutions



Related Products



Style No. Weight Thickness Color Coating
g/m2 oz/yd2 mm inch
GF430P-PTFE135-8001 580 17 0.43 0.016 Black 1 side
GF430P-PTFE133-8003 580 17 0.43 0.016 Silver Grey 1 side
GF430P-PTFE233-8006 610 20 0.45 0.017 Black/Grey 2 sides



Main products: Qualified Fiberglass fabric with silicone, PU, acrylic, neoprene, vermiculite, calcium silicate, graphite, PTFE coating.
Main application: Mainly used in the fields of fire prevention and thermal isolation, like removable thermal insulation jackets, fire curtains, welding blankets, fabric air dispersion/ventilation system, fabric expansion joint, etc.
Advertise & Exhibite: Our company participates in major professional exhibitions every year, and advertises in main search engines, professional portals, To build a world-renowned brand.
Sales Network: We do business with customers all over the world. Depends on our excellent products, over 80% of our products sold abroad, most of them export to European and American countries.
Package: 50m per roll, packed in carton, then loaded on pallet. Choose extra wood planks to protect your cargo.
Agency Policy: Customers whose quantity and rate of purchase reach certain level can be chosen to our local agent, we'll transfer sale and managerment affairs of our small customer around to agent.
Service: We belive "Customer is Supreme", all of our products can be customized, wholeday non-stop online service.
Payment Terms: 30-50% deposite after contract signed, balance paid before shipping. L/C,D/P support.
Delivery Terms: 30 days after deposite received.
Warranty Terms: One year warranty, if there're quality problems, our support team will help to solve it by consultation or technical guidance.
