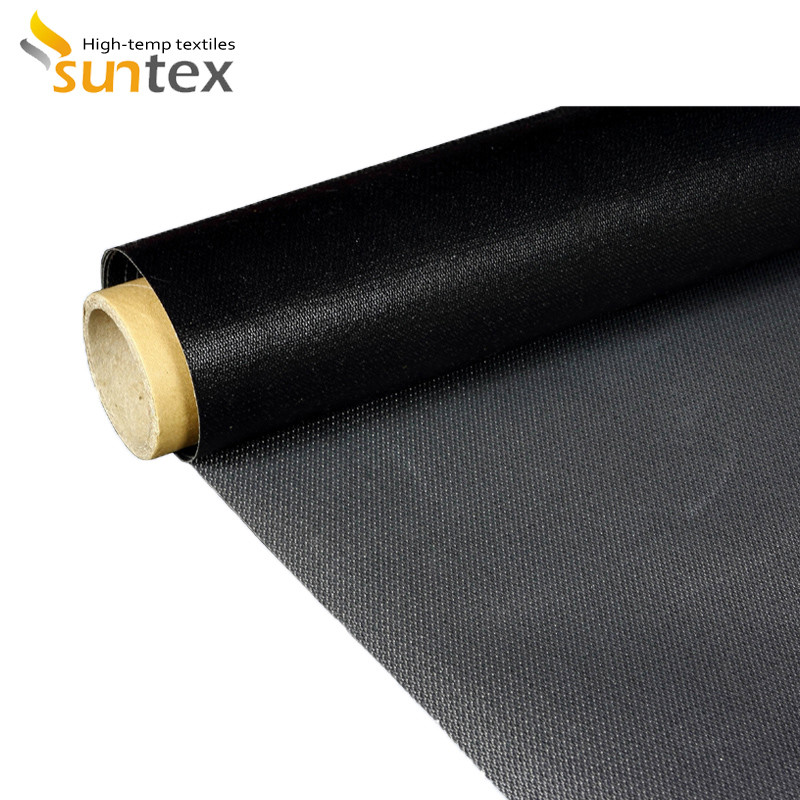

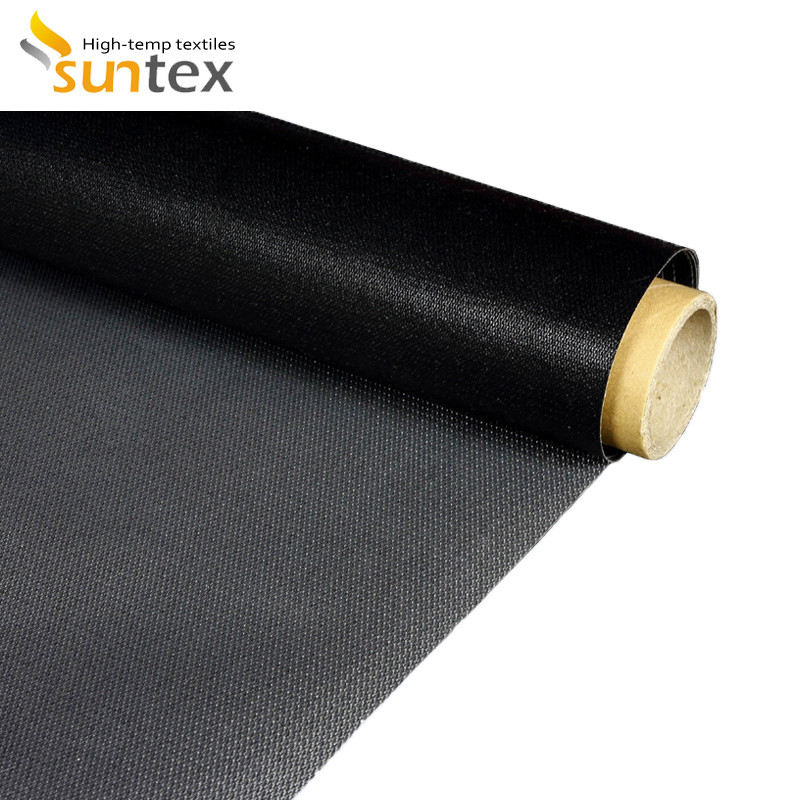

Twill Weave PTFE Coated Fiberglass Fabric High Temperature Resistant

Twill Weave PTFE Coated Fiberglass Fabric High Temperature Resistant
Twill Weave PTFE Coated Fiberglass Fabric High Temperature Resistant
video play

Large Image :  Twill Weave PTFE Coated Fiberglass Fabric High Temperature Resistant

Product Details:
Place of Origin: China
Brand Name: SUNTEX
Model Number: GF430P-PE133-8003
Payment & Shipping Terms:
Minimum Order Quantity: 20 rolls
Packaging Details: Each roll in carton, several cartons in a pallet
Delivery Time: 5-20 days
Payment Terms: T/T; L/C, Paypal...
Supply Ability: 500000sqm/month
Detailed Product Description
Name: PTFE Coated Fiberglass Fabric Thickness: 0.42 Mm
Advantage: High Temperature Resistant Yarn Tape: E-glass
Weave Tape: Twill Weave Width: 1m//1.52m
Coating: PTFE Standing Temperature: From -50℃ To 550℃
High Light:

Twill Weave PTFE Coated Fiberglass Fabric

,

High Temperature PTFE Coated Fiberglass Fabric

,

Twill Weave ptfe fiberglass cloth

Twill Weave PTFE Coated Fiberglass Fabric High Temperature Resistant



PTFE Coated Fiberglass Fabric use best imported Fiberglass yarn as the weaving material to plain knit or specially knit into superior fiberglass basic cloth, coat it with fine PTFE resin then make it into various PTFE fabricin different thickness and widths.



PTFE Coated Fiberglass Fabric applications

- Thermal insulation jacket, mattress and pad

- Expansion joints and compensators

- Conveying belt



BASE FABRIC Base fabric style No. GF430P
  (metric) (English) Test methods
Weave 4H Satin Crowfoot
Yarn
Warp EC9 136 1﹡0 ECG 37 1/0
Weft EC9 136 1﹡0 ECG 37 1/0
Construction
Warp 18 ± 1 ends/cm 48 ± 3 ends/inch ASTM D 3775-96
Weft 12.6 ± 1 picks/cm 32 ± 3 picks/inch ASTM D 3775-96
Weight 430 ± 30 g/m2 12.6 ± 0.9 oz/yd2 ASTM D3776-96
Thickness 0.37 ± 0.06 mm 0.015 ± 0.002 inch ASTM D1777-96






COATED FABRIC Coating style No. PTFE133-8003
Coating PTFE coated on one side
Weight 580 ± 20 g/m2 17 ± 0.6 oz/yd2 ASTM D3776-96
Thickness 0.43± 0.02 mm 0.016 ± 0.0007 inch ASTM D1777-96
Color Grey
Fire resistance Flame retardant
Temp resistance

Glass fabric up to 5500C (10000F)

PTFE coating up to 3300C (6200F)

white ptfe fiberglass fabric

Related Style

-_03-_04-_01-_02-_05-_12-_14-_16-_15

1. Q: Are you a factory or trading company?

A: We are a factory.



2. Q:Why do you choose us?

A: Suntex management and staff have over 20 years of cumulative experience in industrial textiles.



3. Q:What is your delivery time?

A:Generally we will within 30 days of delivery to you



4. Q:Can you product the customized goods?

A:Surely, we can be customized according to your demanding.



5. Q:What kinds of payment you accept?

A:We accept T/T, L/C ,D/P or other.



6. Q:Do you have other production?

A:Certainly,we still have Rewettable fiberglass fabric, EPDM rubber coated fiberglass fabric, Fluoride coated fiberglass

fabric, Hypalon coated fiberglass fabric, PVC coated fiberglass fabric, PVC coated polyester fiberglass Carbonized fabric,

Aluminized aramid fabric . We are looking forward to your enquiry.
