|Alkali Content:||Alkali Free||Yarn Type:||E-Glass|
|Width:||From 1m To 2m, Or Customized||Weave Type:||Twill Woven|
|Coating:||Two Sides Polyurethane(PU) Coated||Color:||Blue,green,white,black,yellow,or Customized|
|Base Material:||Fiberglass Cloth||Standing Temperature:||-70°C To +300°C|
|Good Features:||Fireproof, Thermal, Water And Oil Proof, Comfortable||Properties:||Good Resistance For Abrasion,waterproof, Allergen Resistant|
|Application:||Thermal Insulation And Fire Protection|
Fire curtains and smoke curtains,
Pu Coated Glass Fibre Fabric,
coated fiberglass fabric

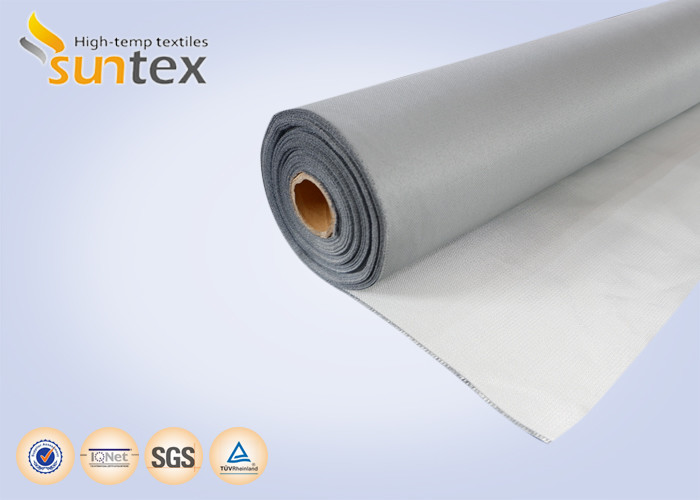

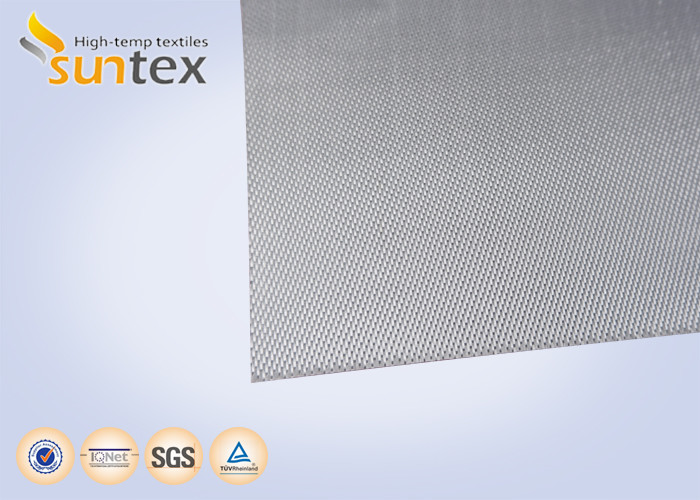

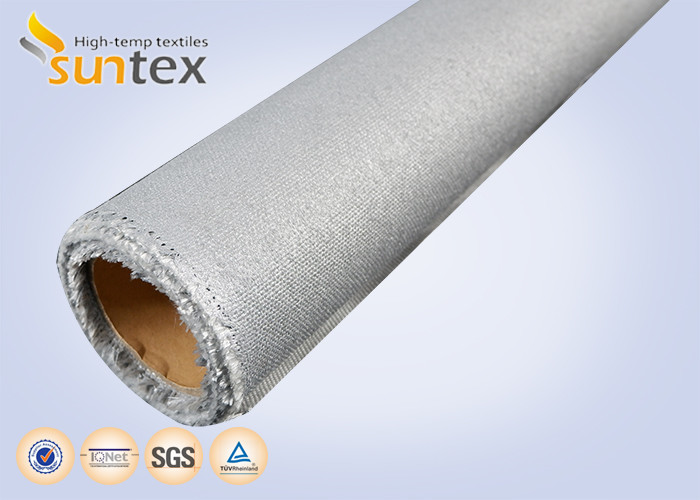

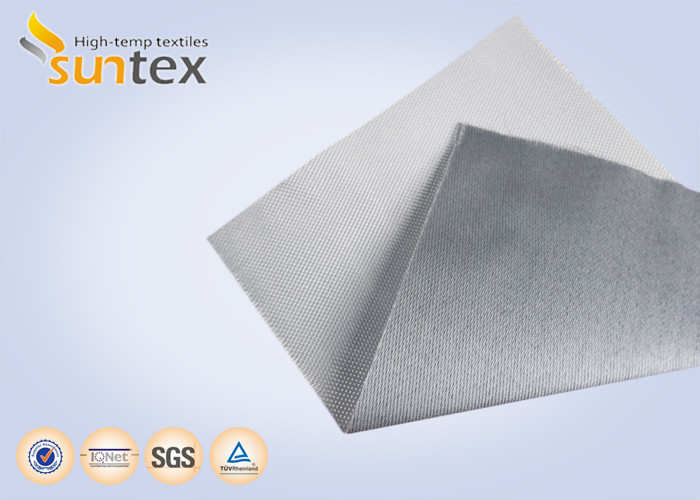

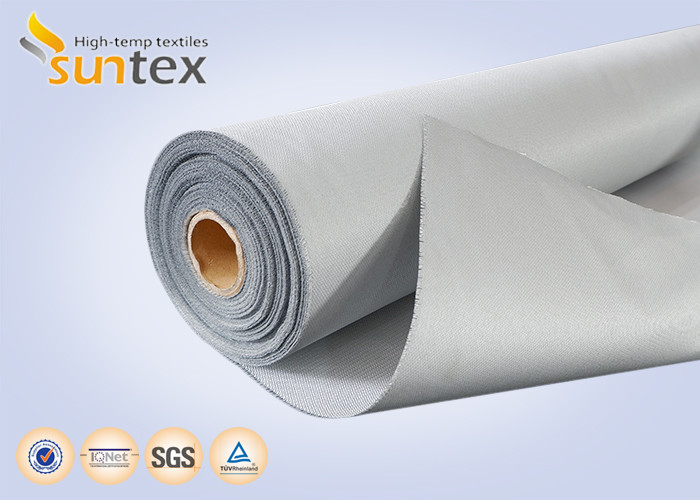

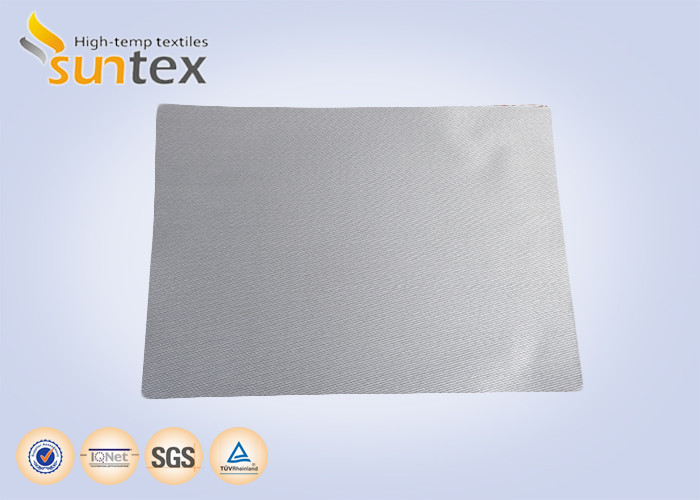

PU Coated Fiberglass Fabric For Thermal Insulation And Fire Protection
This fire-resistant fiberglass fabric is made of fiberglass fabric and polyurethane coating. It has many excellent characteristics such as excellent fire resistance. excellent wear resistance, cold resistance, water resistance, anti-ultraviolet, and mechanical properties. It can be used continuously at 180℃. Suntex can supply other colors according to customers' requirements.
Features: good rebound resilience, toughness, softness, superior resistance to wear, cold, oil, water, aging, and weather
Application: welding & fire protection, thermal insulation jackets, mattress, expansion joint belt, protective scrim of insulation wool, composite reinforcement
Working Temp: 550C
|BASE FABRIC||Base fabric style No. GF430P|
|Warp||EC9 68 1*2||ECG 75 1/2|
|Weft||EC9 68 1*2||ECG 75 1/2|
|Warp||18 ± 1 ends/cm||48 ± 3 ends/inch||ASTM D 3775-96|
|Weft||12.6 ± 1 picks/cm||32 ± 3 picks/inch||ASTM D 3775-96|
|Weight||430 ± 30 g/m2||12.6 ± 0.9 oz/yd2||ASTM D3776-96|
|Thickness||0.37 ± 0.06 mm||0.015 ± 0.002 inch||ASTM D1777-96|
|COATED FABRIC||Coating style No. PU21A-2006|
|Coating||Fire retardant, high performance, blue/black polyurethane on both sides|
|Weight||460 ± 20 g/m2||13.5 ± 0.59 oz/yd2||ASTM D3776-96|
|Thickness||0.41 ± 0.03 mm||0.017 ± 0.0012 inch||ASTM D1777-96|
|Fire resistance||M0 approvals||NF92507|
Glass fabric up to 5500C (10000F)
Polyurethane coating up to 1800C (3560F)
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Why do you choose us?
A: Suntex management and staff have over 20 years of cumulative experience in industrial textiles.
3. Q: What is your delivery time?
A: Generally we will within 30 days of delivery to you
4. Q: Can you produce customized goods?
A: Surely, we can be customized according to your demands.
5. Q: What kinds of payment you accept?
A: We accept T/T, D/A, L/C, D/P.
6. Q: Do you have other production?
A: Certainly, we still have Rewettable fiberglass fabric, EPDM rubber coated fiberglass fabric, Fluoride coated fiberglass fabric, Hypalon coated fiberglass fabric, PVC coated fiberglass fabric, PVC coated polyester fiberglass Carbonized fabric, Aluminized aramid fabric. We are looking forward to your enquiry.
