Payment & Shipping Terms:
|Weight:||460g/sqm||Width:||1000mm 1520mm 1550m 2000m|
|Weave:||4H Satin||Temperature Resistance /Working Temperature:||550℃ 1000℉|
|Coated:||PU One Side||Fiberglass:||C-glass|
Fabric expansion joint,
coated fiberglass fabric,
PU coated fiberglass fabric
Welding Fiberglass Fabric PU Coated Fiberglass Fabric Fire Barrier M0 Isolating Fabric Canvas 0.4mm

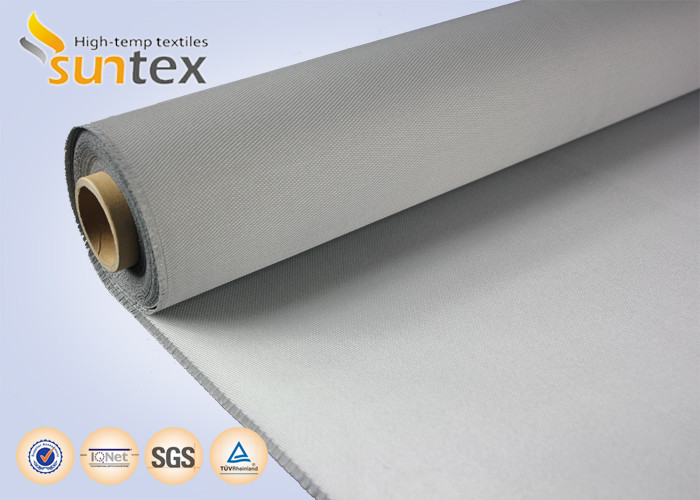

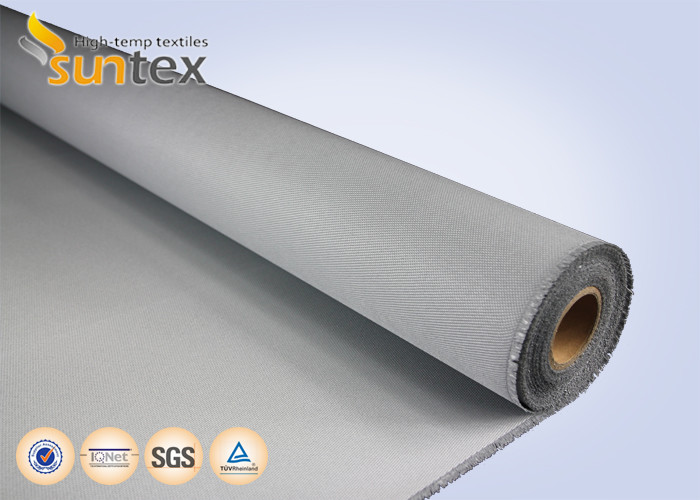

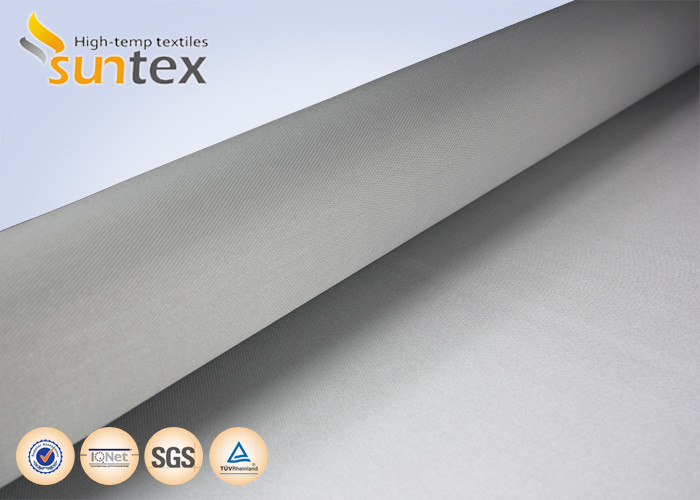

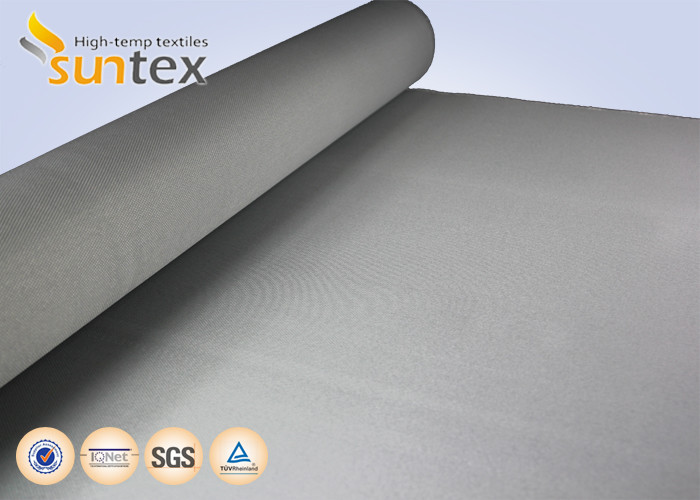

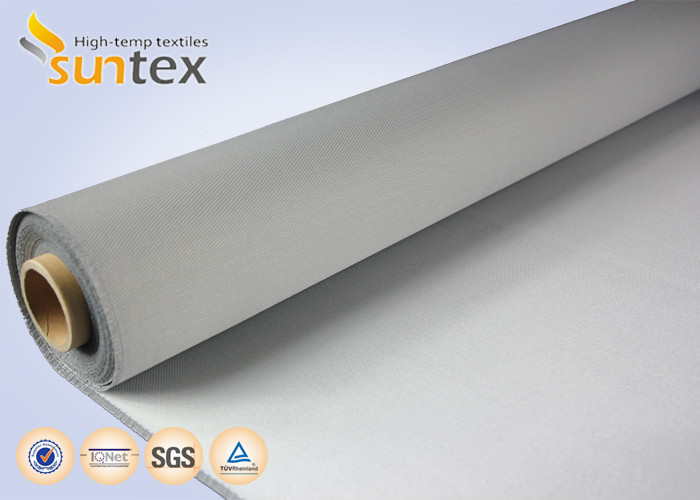

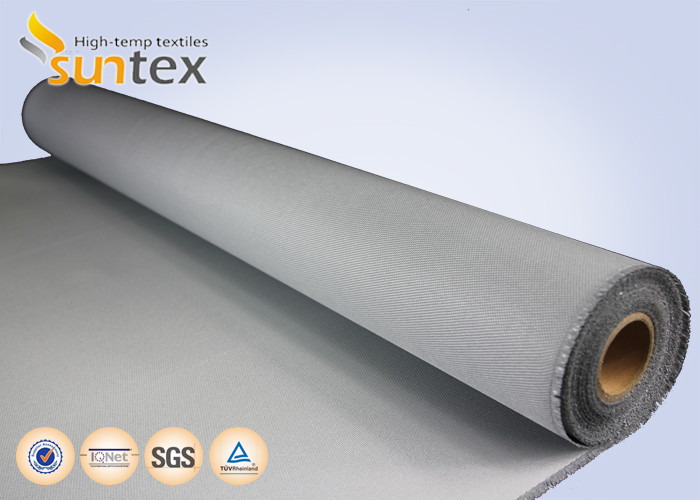

GF430-PU113-2030 is a medium -weight woven fiberglass fabric with a specially formulated aluminum polymer and polyurethane which provides a heat reflecting surface as well as other properties for the manufacturer of smoke and fire curtains, blinds, cavity wall fire barriers and other types of smoke and fire control systems. Other applications are insulation covers where can be used as an attractive alternative to foil faced laminates for less demanding end uses.
1. M0 certified fire resistance.
2. Silver grey color. Various color available.
3. Easy to be used, sewn and fabricated.
4. Good abrasion resistance property.
5. Good tensile strength.
6. Thickness, weight, weave, all can be customized base on your application.
|2005,||0.4mm||grey/grey||Wedling blanket/Smoke curtain/HVAC system/Thermal insulation jackets|
|2009,||0.4mm||Yellow/green||Air conditioning ducts|
|2016,||0.7mm||Silver grey||welding protection|
|2019,||0.77mm||Silver grey||Fabric expansion joint|
|2036,||0.7mm||Silver grey||Fire curtain|
|2025,||0.9mm||green||Fabric expansion joint|
Welding protection/Thermal insulation
Contact Person: Suntex
