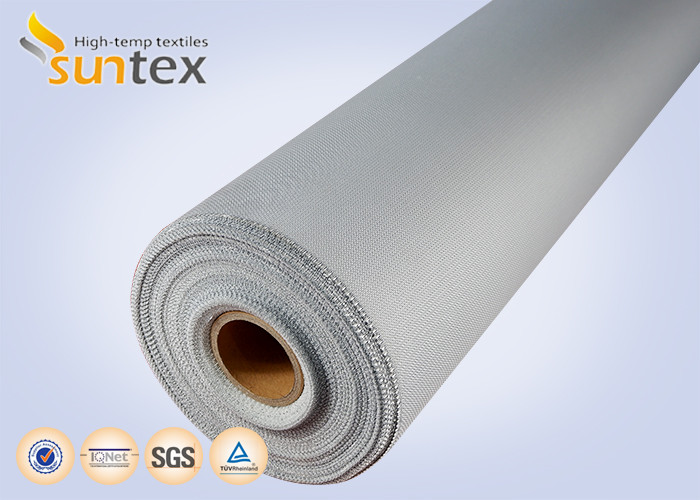

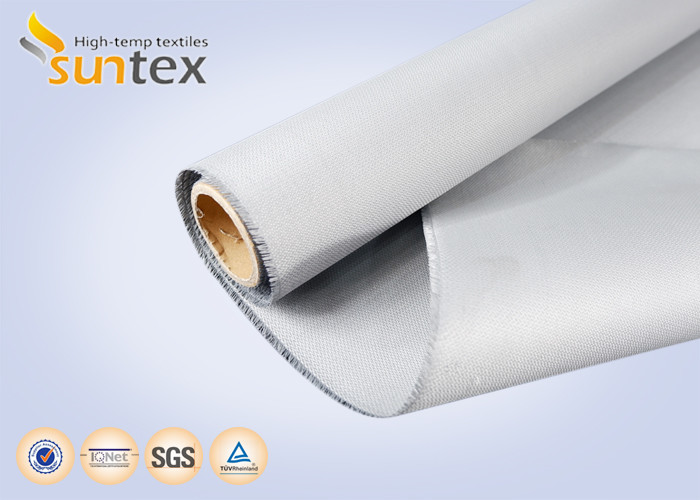

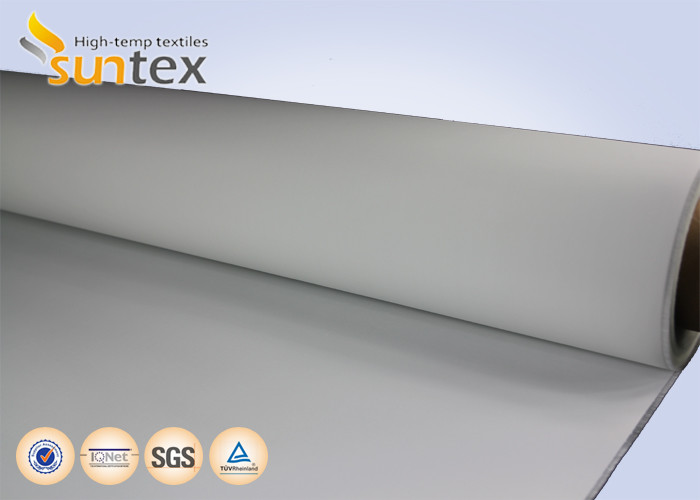

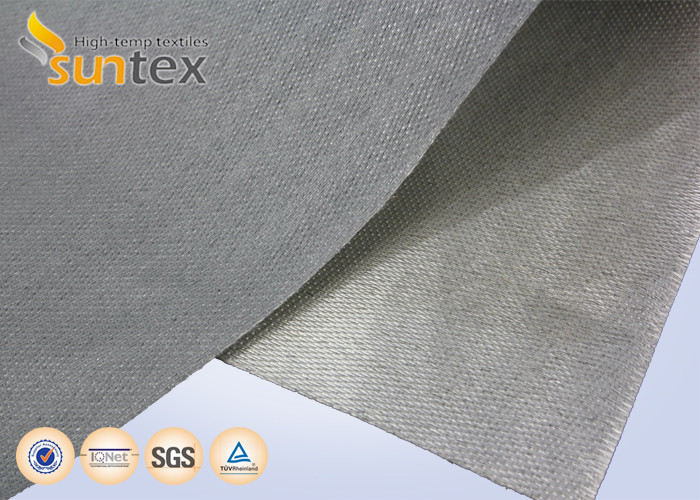

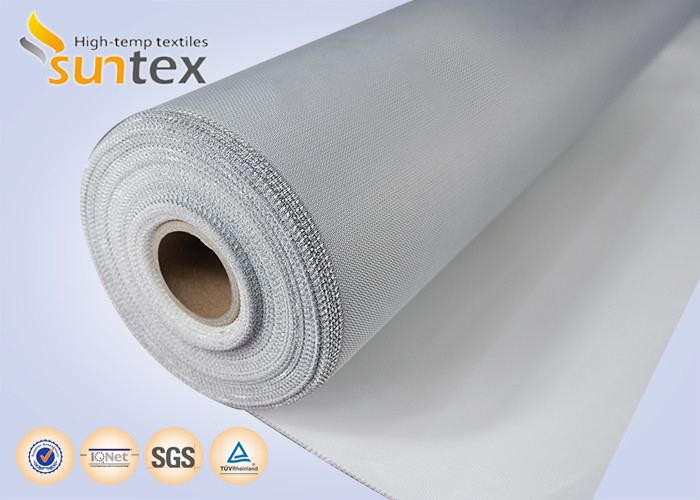

Fabric Rigid PU Coated Glass Cloth For Fire Resistant Welding Blanket

Place of Origin:China
Brand Name:SUNTEX
Model Number:GF660C-PU113-2028
Minimum Order Quantity:20 rolls
Payment Terms:T/T; L/C, Paypal...
Supply Ability:500000sqm/month
Product Details
Highlight:

high temperature fiberglass cloth

,

PU Coated Glass Cloth

,

Fire Resistant Welding Blanket
Nominal Weight: 690g/sq.meter
Nominal Width: 1000mm 1550mm 2000mm
Nominal Thickness: 0.65mm
Colour: Silver Grey
Weave: Satin
Temperature Resistance /Working Temperature: 550℃
Coating Temperature Resistance: 180℃
Basic Fabric Temperature Resistance: 550℃
Treatment: PU Single Side
Fiberglass: C -glass
Product Description

Thermal Isulating Materials PU Coated Fiberglass Fabric 0.65mm M0 For Welding Protection Fireproof Blanket



Introduce



GF660C-PU113-2028 is a woven fiberglass fabric with a specially formulated polyurethane aluminum polymer which provides a heat reflecting surface as well as other properties for the manufacturer of welding blanket and fire control systems. Other applications are insulation covers where GF660C-PU113 can be used as an attractive alternative to foil faced laminates for less demanding end uses.



Advantage



1. M0 certified fire resistance.

2. Various color available.

3. Easy to be holed, sewn and fabricated.

4. Excellent abrasion resistance property.

5. Excellent tensile strength.

6. Nominal Thickness, weight, weave, all can be customized base on your application.



Data



Total weight 690 g/m2
Nominal Thickness 0.65 mm
Nominal width 1000mm 1550mm 2000mm
Treatment PU 1 side
Color of coating Silver Grey
Fire resistance M0
Coating working temperature PU coating 180 ℃
Basic temperature resistance Basic fabric 550 ℃
Weave Satin
Yarn warp EC9 33 1*6
Yarn weft EC9 33 1*6
Construction warp 16.5±1 ends/cm
Construction weft 14.5±1 ends/cm
Fiberglass C-Glass



Applications



Smoke curtain

Welding blanket

Flexible sleeve

Removable thermal shell

Heat insulation pad

Flexible duct



Related Products



Style No. Weight Thickness Color Coating
g/m2 oz/yd2 mm inch
GF200P-PU210-2001 220 6.5 0.21 0.0082 White 2 sides
GF430P-PU213-2004 460 13.5 0.41 0.0161 Silver grey 2 sides
GF430P—PU213-2005 460 13.5 0.40 0.015 Silver Grey 2 sides
GF430P-PU21A-2006 460 13.5 0.41 0.0161 Blue/Black 2 sides
GF430P—PU21B-2007 460 13.5 0.40 0.015 Grey White 2 sides
GF430P-PU223-2010 490 14.5 0.45 0.0177 Blue/Black 2 sides
GF660—PU223-2016 720 21 0.71 0.0275 Silver Grey 2 sides
TGF580-PU113-2019 620 18.3 0.77 0.0303 Silver grey 1 side
GF800C-PU223-2023 880 26 0.9 0.0354 Silver grey 2 sides
TGF1020—PU111-2025 1070 31.5 1.5 0.0590 Green 1 side
GF660S-PU213-2036 710 20.9 0.7 0.0276 Silver grey 2 sides
GF660S—PU113-2040 790 23 0.70 0.027 Grey 1 side
SL600-PU113-2044 630 18.6 0.7 0.0276 Silver grey 1 side
TGF1000P-PU223-2049 1100 32.4 1.2 0.0472 Silver grey 2 sides



Fabric Rigid PU Coated Glass Cloth For Fire Resistant Welding BlanketFabric Rigid PU Coated Glass Cloth For Fire Resistant Welding Blanket
